Sensor Inspection
- Disconnect the crankshaft position sensor connector.

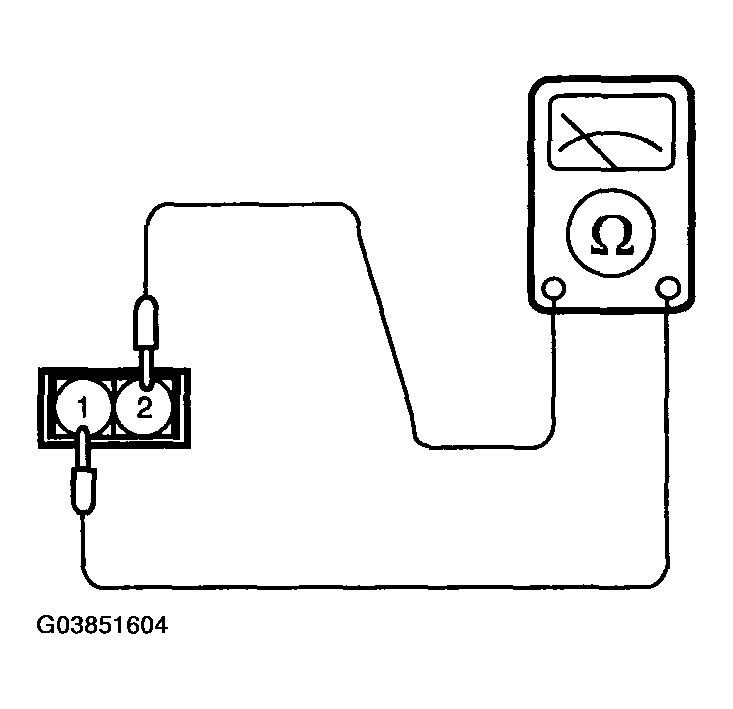

- Measure the resistance between terminals 1 and 2
Standard value:Β 0.486~0.594 kΞ© at 20 Β°C (68Β°F)
- If the resistance deviates greatly from the standard value, replace the sensor.
- Standard value
Clearance between the crankshaft position sensor and crankshaft position sensor wheel:
0.5~1.5 mm (0.020~0.059 in.)
- Tightening torque
Crankshaft position sensor:
9~11 Nm (90~110 kg.cm, 7~8 lb.ft)
