2004 Hyundai Accent BaseFACTORY OEM SERVICE PROCEDURE

Ignition Coil: Notes

When the ignition power transistor is turned ON by a signal from the ECM, the ECM sends a signal to the ignition coil, then the primary current is shut off and a high voltage is induced in the secondary coil.

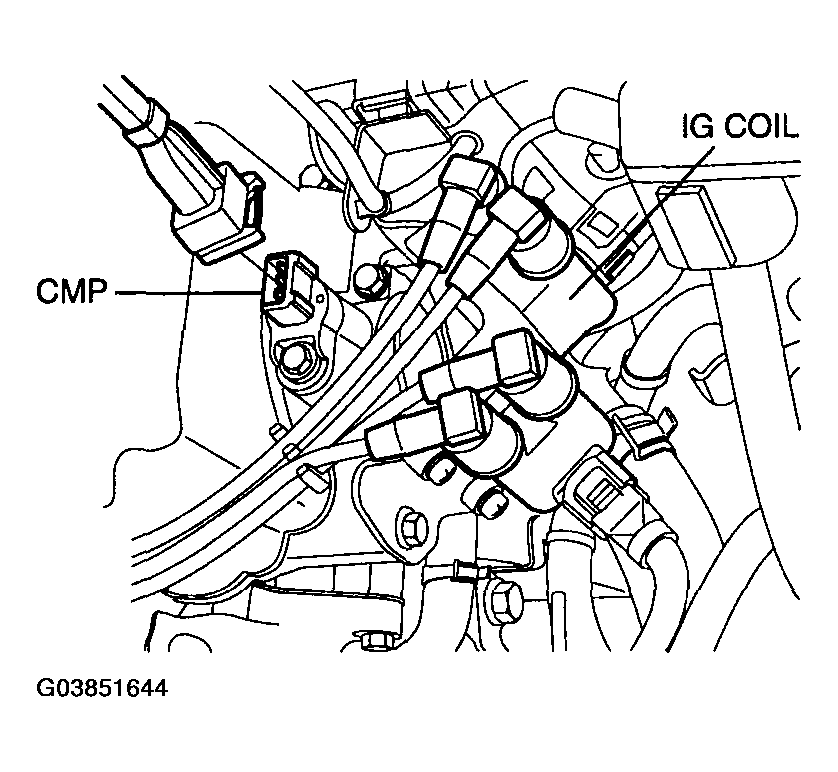

Fig 1: Identifying Ignition Coil

Courtesy of HYUNDAI MOTOR CO.
