MFI Control Relay Inspection

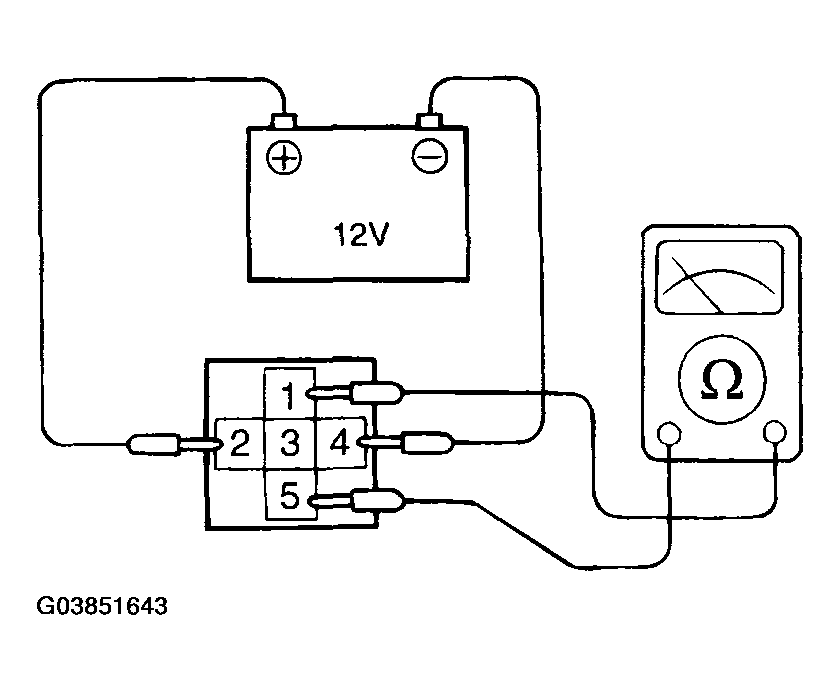

- Check continuity of relay contacts between terminals 5 (+) and 1 (-).MFI CONTROL RELAY CONTINUITY CONDITIONS
Relay coil (between terminal 2 & 4) Continuity When de-energized No When energized Yes - If faulty, replace the MFI control relay.
Tightening torque
MFI control relay:
7~11 Nm (70~110 kg.cm, 5.2~8.1 lb.ft)
