2004 Hyundai Accent BaseFACTORY OEM SERVICE PROCEDURE

Fuel Injector: Removal

Release residual pressure from the fuel line to prevent fuel from spilling.
CAUTION: Cover the hose connection with rags to prevent splashing of fuel that could be caused by residual pressure in the fuel line.
Remove the delivery pipe with the fuel injectors.
CAUTION:
- Be careful not to drop any injectors when removing the delivery pipe.
- Be aware that fuel may flow out when removing the injector.

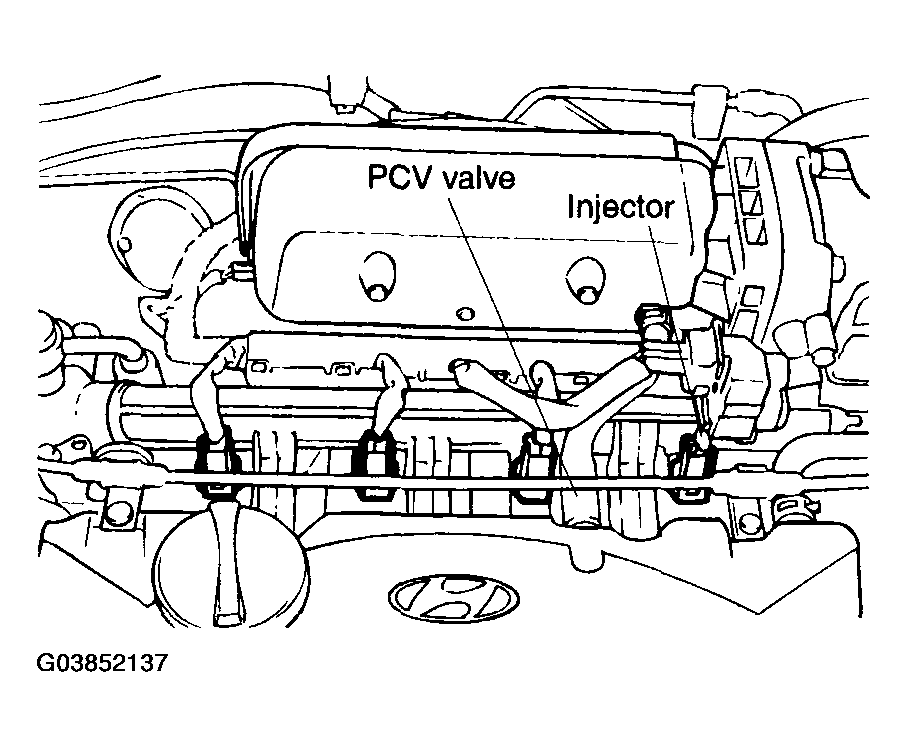

  Fig 1: Locating PCV Valve And Injector
  Courtesy of HYUNDAI MOTOR CO.
