2004 Hyundai Accent BaseFACTORY OEM SERVICE PROCEDURE

Accelerator Pedal: Removal

Remove the bushing and inner cable of the accelerator arm side.

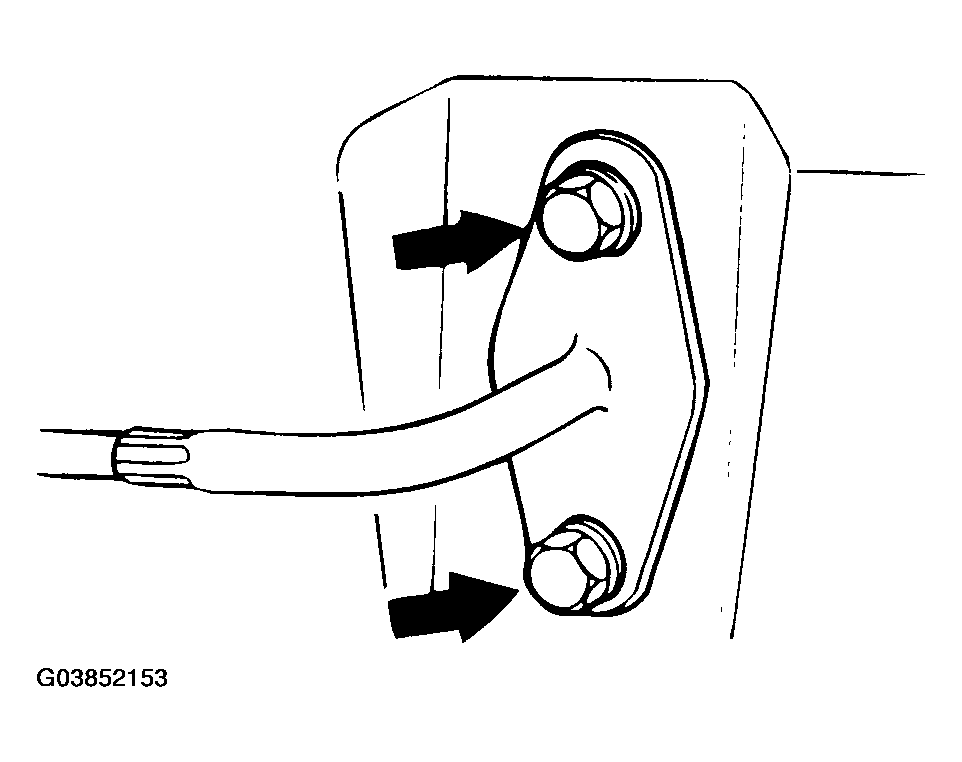

Fig 1: Removing Bushing And Inner Cable Of Accelerator Arm Side
Courtesy of HYUNDAI MOTOR CO.
After disconnecting the accelerator switch connector, loosen the bolts of the accelerator arm bracket and remove.

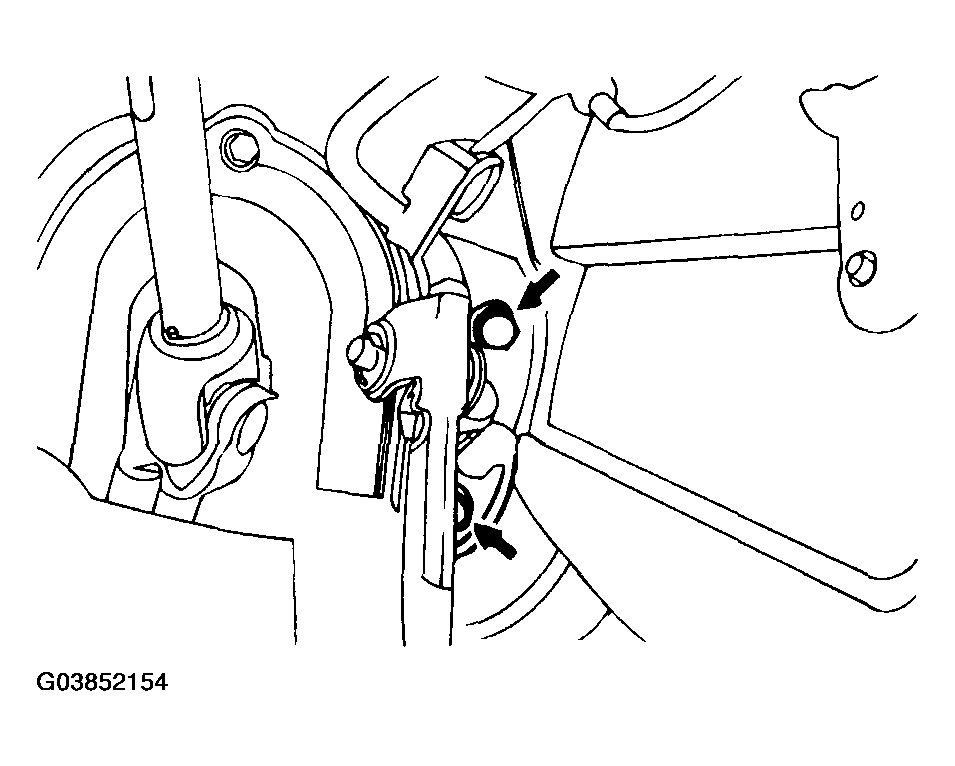

Fig 2: Loosening Bolts Of Accelerator Arm Bracket
Courtesy of HYUNDAI MOTOR CO.
