2004 Hyundai Accent BaseFACTORY OEM SERVICE PROCEDURE

Operation Check

Using a HI-SCAN:

Activate the fuel injectors in sequence.
Check the operating time of the injectors.

Fig 1: Checking Operating Time Of Injectors
Courtesy of HYUNDAI MOTOR CO.

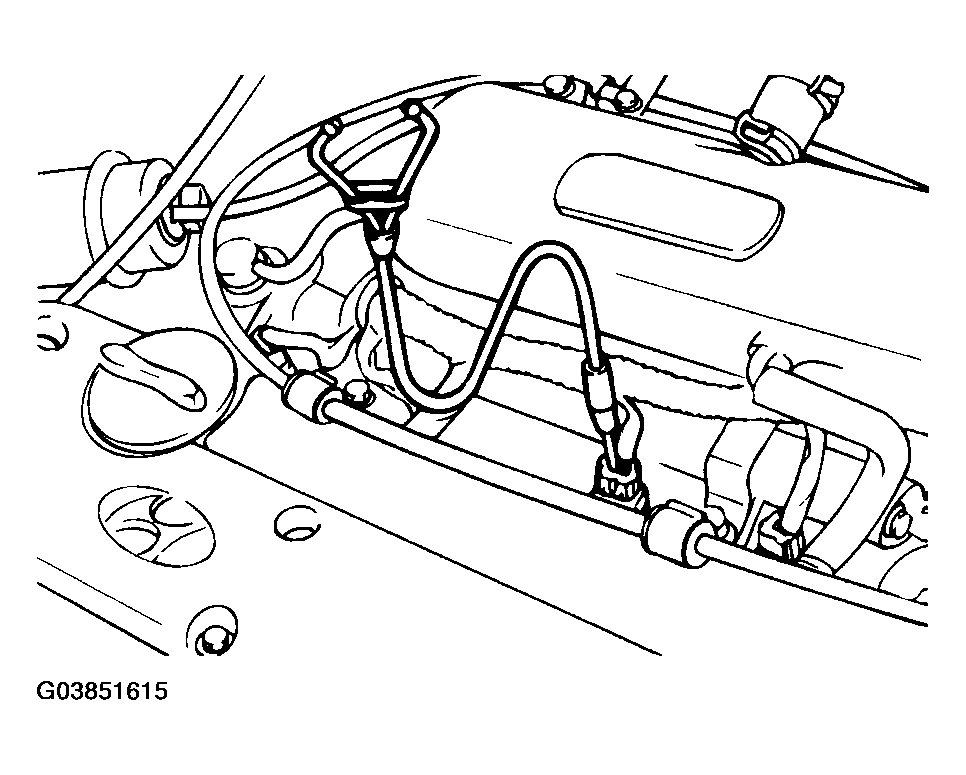

Operation Sound Check

Using a stethoscope, check the injectors for a clicking sound at idle. Check that the sound is produced at shorter intervals as the engine speed increases.
NOTE: Ensure that the sound from an adjacent injector is not being transmitted along the delivery pipe to an inoperative injector.
If a stethoscope is not available, check the injector operation with your finger.
If no vibrations are felt, check the wiring connector, injector, or injection signal from ECM.

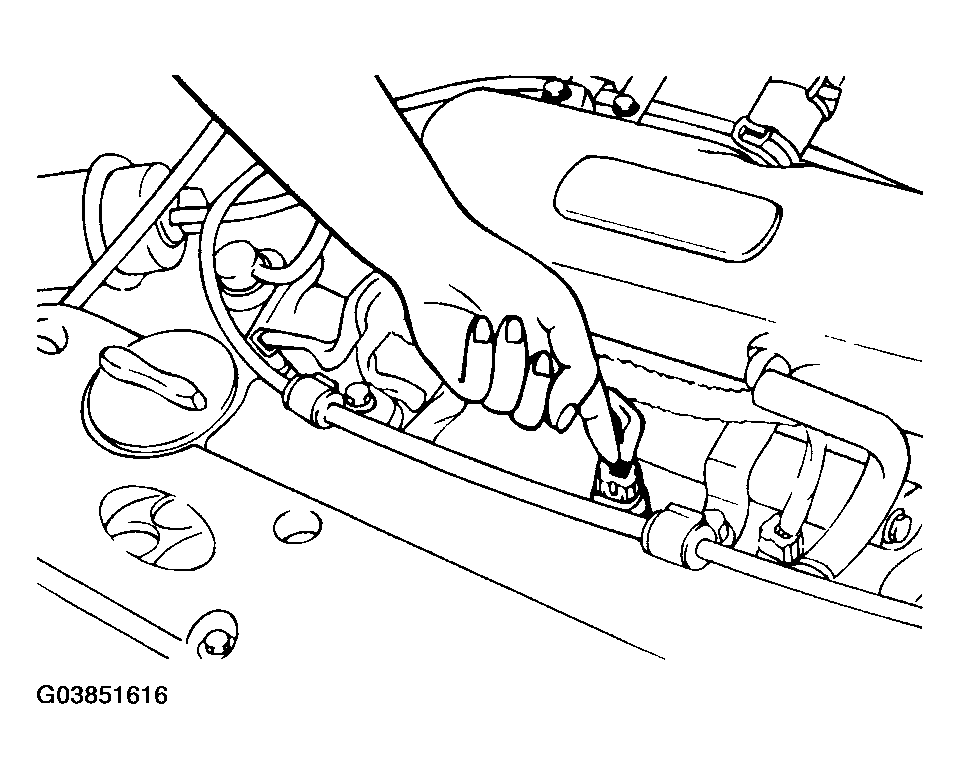

Fig 2: Checking Injector Operation
Courtesy of HYUNDAI MOTOR CO.
