2003 Hyundai Tiburon Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Automatic Transaxle Shift Control: Removal

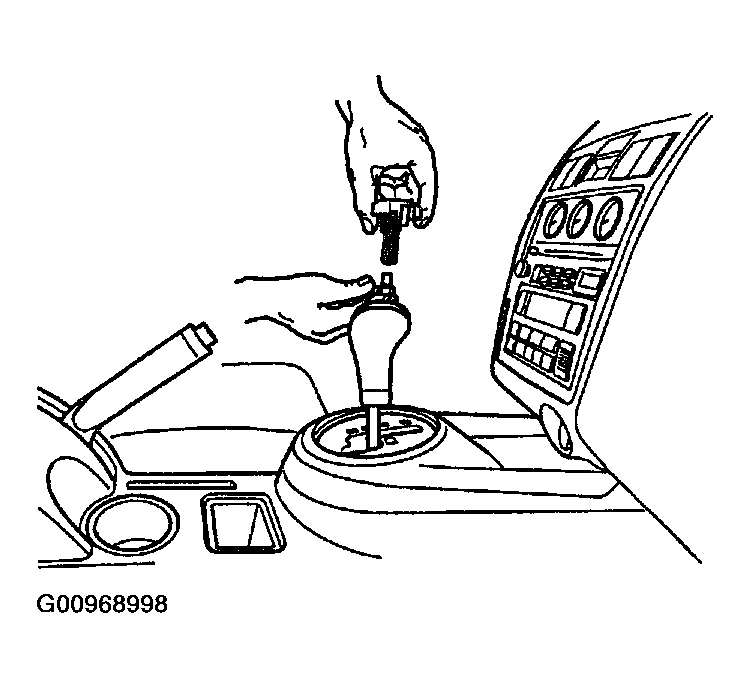

  1. Remove the push button, the spring and the cap.
    Fig 1: Removing The Push Button, The Spring & The Cap
    G00968998Courtesy of HYUNDAI MOTOR CO.

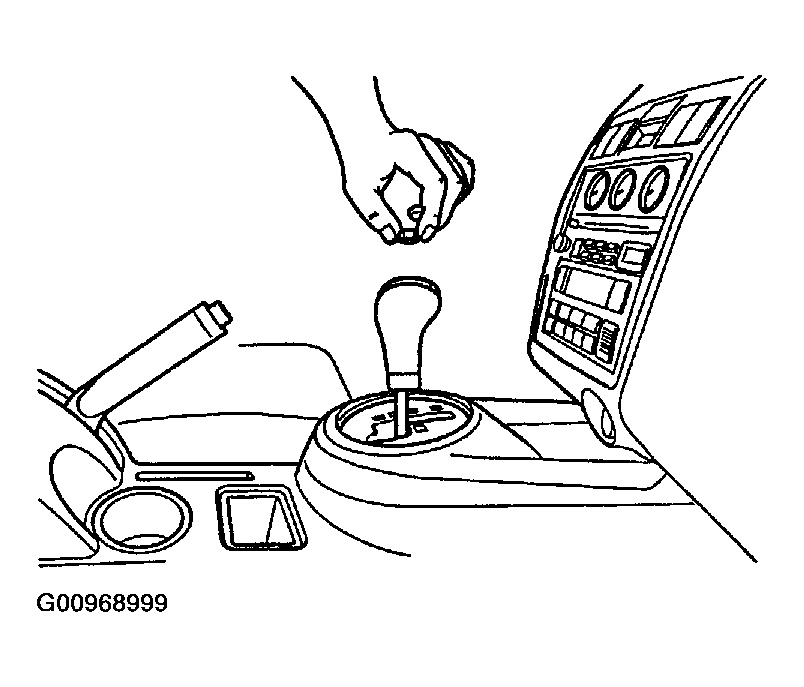

  2. Remove the knob mounting nut.
    Fig 2: Removing The Knob Mounting Nut
    G00968999Courtesy of HYUNDAI MOTOR CO.

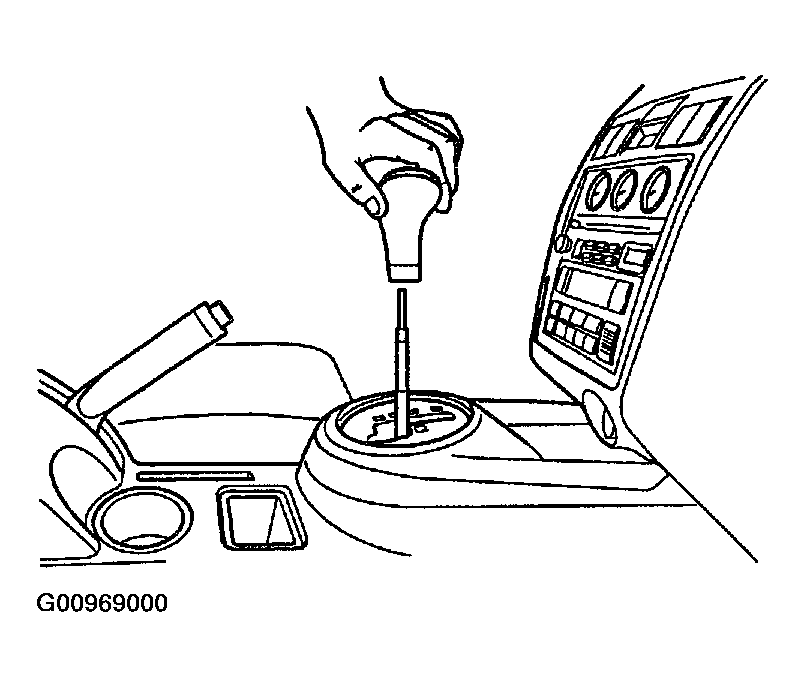

  3. Remove the shift knob.
    Fig 3: Removing Shift Knob
    G00969000Courtesy of HYUNDAI MOTOR CO.
  4. Remove the console upper cover.
  5. Remove the console assembly.

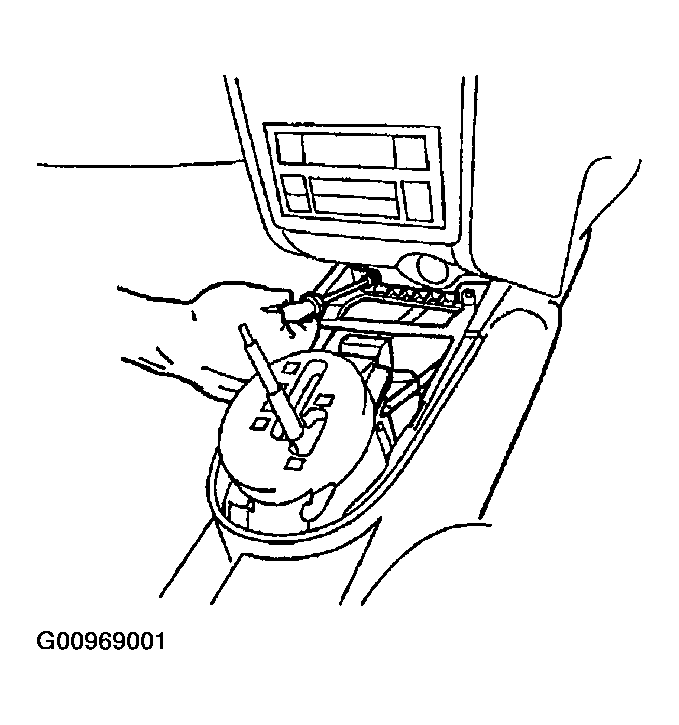

    Fig 4: Removing The Console Assembly
    G00969001Courtesy of HYUNDAI MOTOR CO.
  6. Remove the indicator panel.

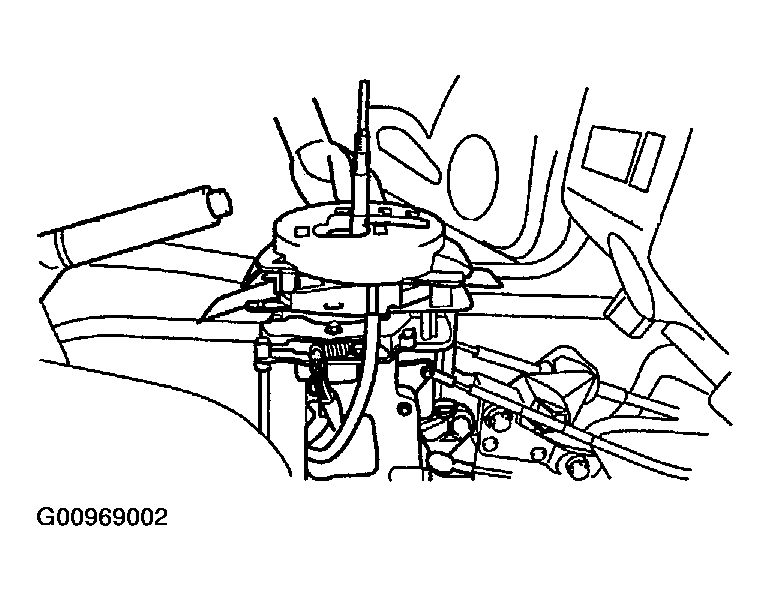

    Fig 5: Removing Indicator Panel
    G00969002Courtesy of HYUNDAI MOTOR CO.
  7. Remove the indicator lower cover.

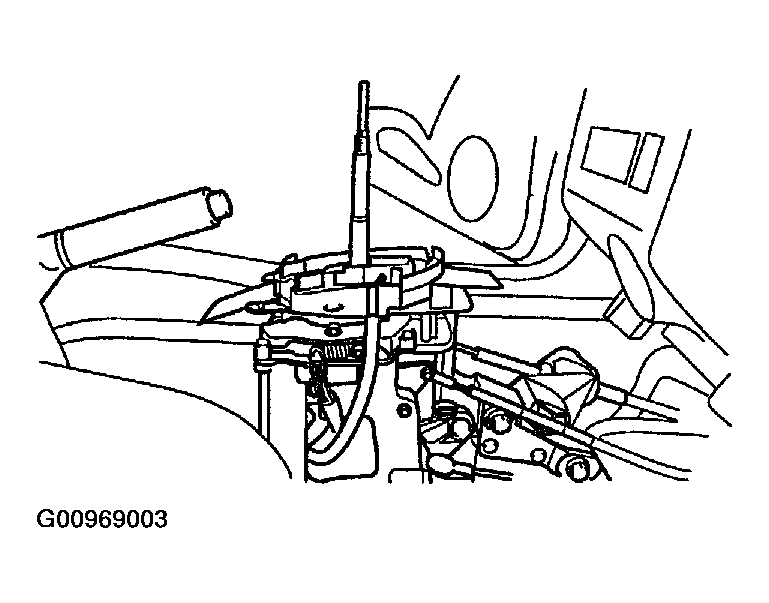

    Fig 6: Removing The Indicator Lower Cover
    G00969003Courtesy of HYUNDAI MOTOR CO.

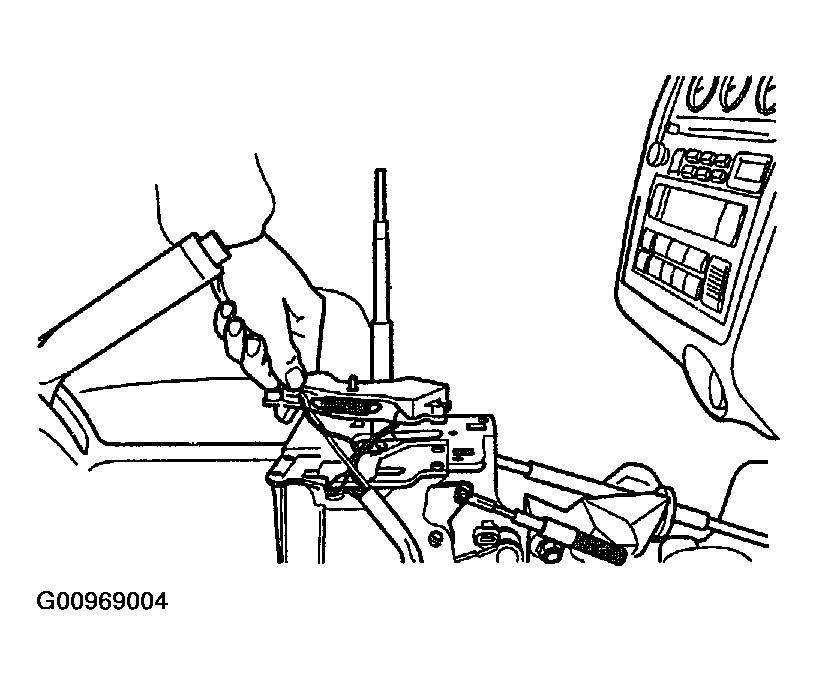

  8. Remove the indicator plate.
    Fig 7: Removing Indicator Plate
    G00969004Courtesy of HYUNDAI MOTOR CO.

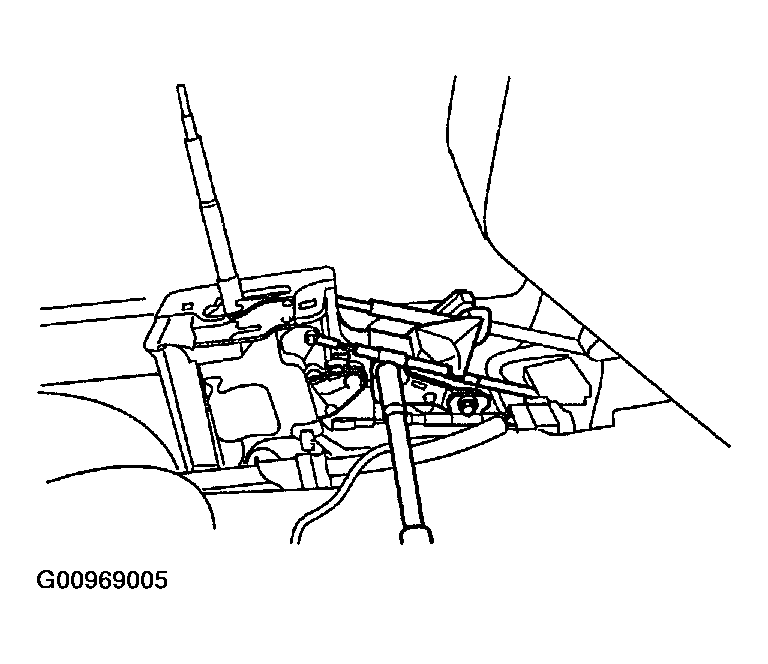

  9. Remove the key lock cable nut.
    Fig 8: Removing The Key Lock Cable Nut
    G00969005Courtesy of HYUNDAI MOTOR CO.

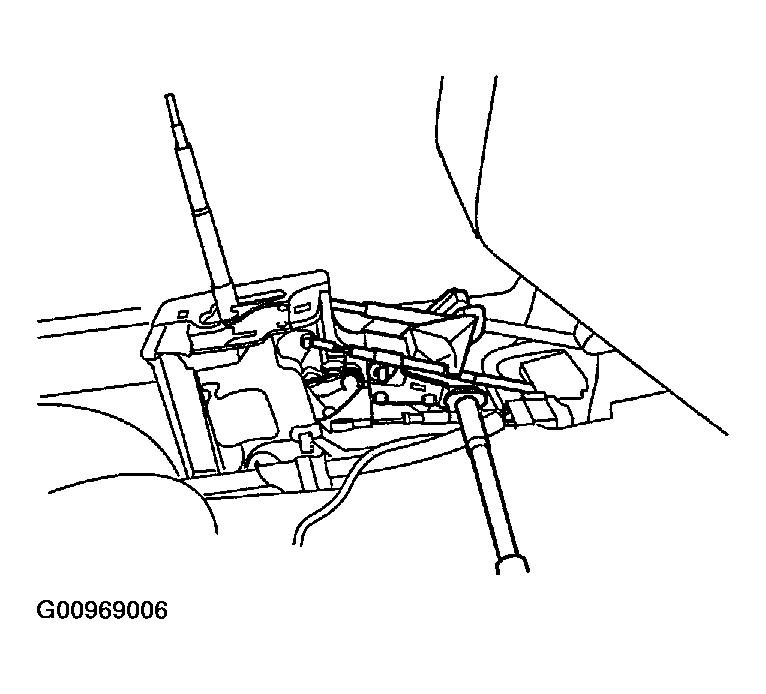

  10. Remove the shift lock cable nut.
    Fig 9: Removing The Shift Lock Cable Nut
    G00969006Courtesy of HYUNDAI MOTOR CO.
  11. Remove the control cable snap pin.

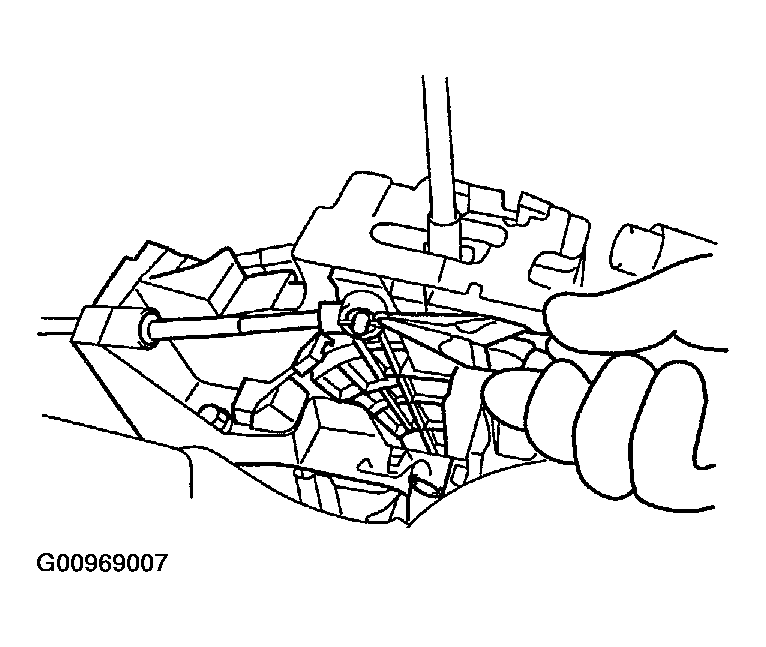

    Fig 10: Removing The Control Cable Snap Pin
    G00969007Courtesy of HYUNDAI MOTOR CO.
  12. Remove the control cable clip and the control cable.

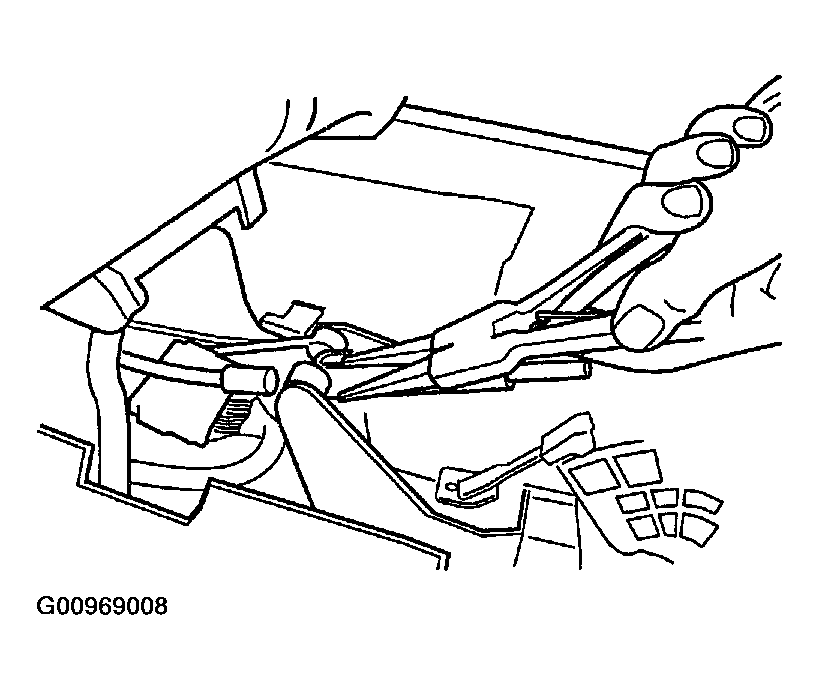

    Fig 11: Removing The Control Cable Clip & The Control Cable
    G00969008Courtesy of HYUNDAI MOTOR CO.

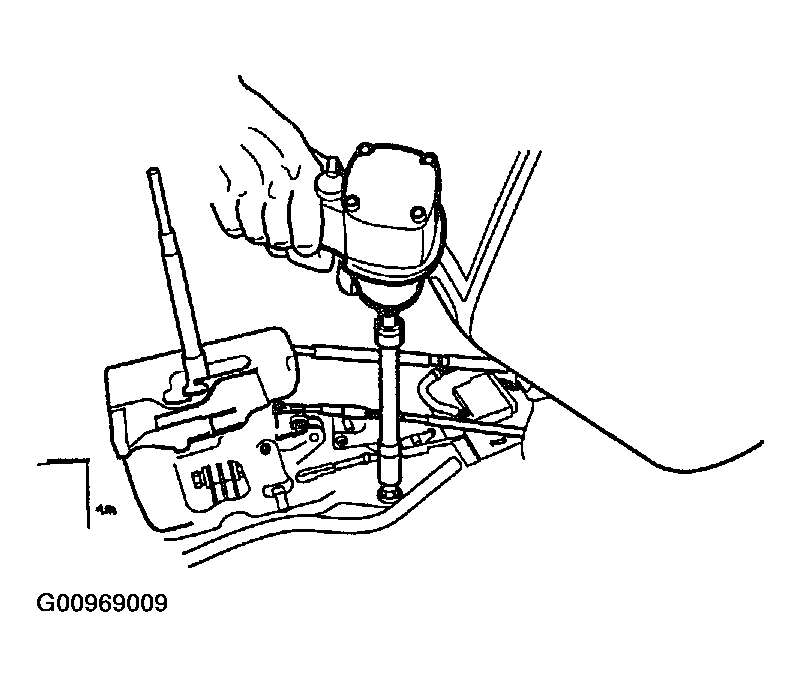

  13. Remove the shift lever bracket bolt.
    Fig 12: Removing The Shift Lever Bracket Bolt
    G00969009Courtesy of HYUNDAI MOTOR CO.

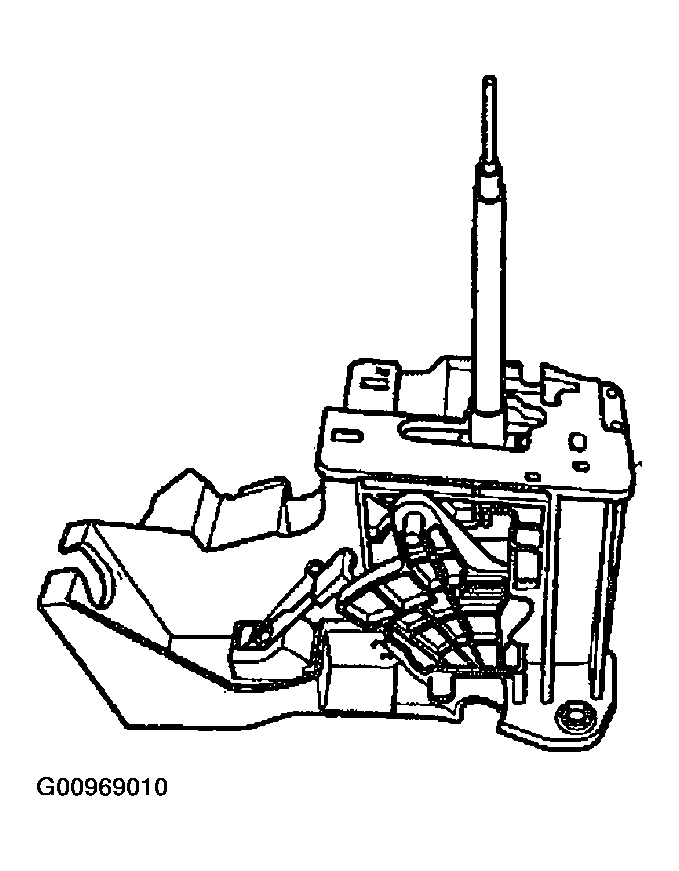

  14. Remove the shift lever.
    Fig 13: Removing The Shift Lever
    G00969010Courtesy of HYUNDAI MOTOR CO.
