2003 Hyundai Santa Fe Base, StandardFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor: Adjustment
- Connect a HI-SCAN to the data link connector.

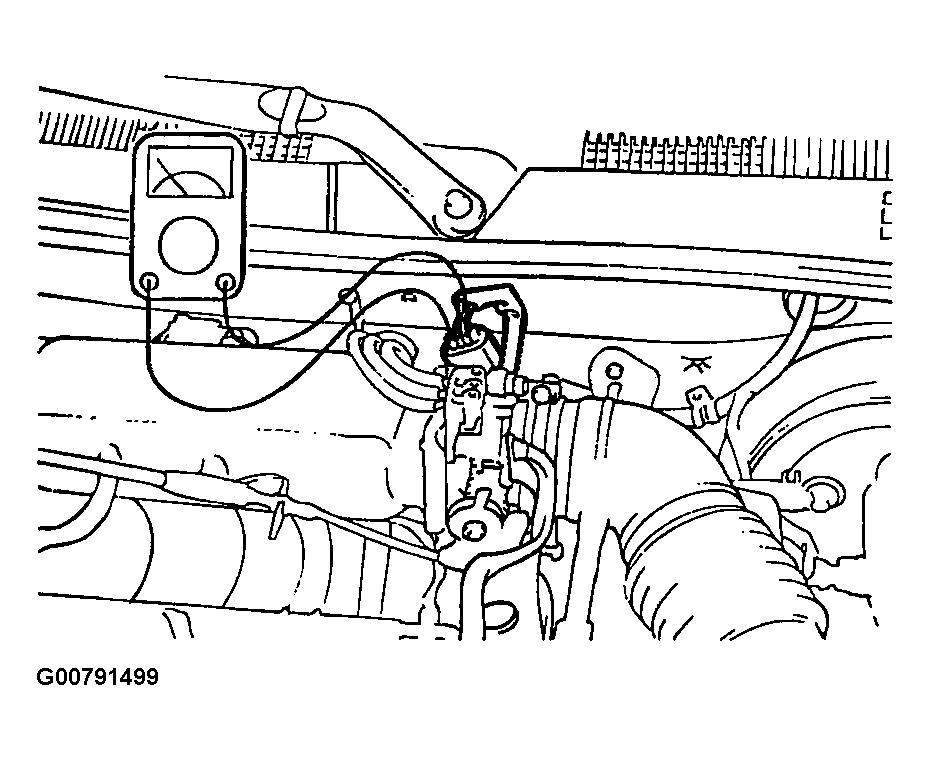

- If a HI-SCAN is not used, connect a digital type voltmeter between connector 1 and 3.
- Turn the ignition switch to the ON position (do not start engine) and check that the TP Sensor output voltage is as specified. If a HI-SCAN is used, press code No. 14 and read the voltage.
Standard value: 300~900 mV
- If the voltage is not within the specification, loosen the TPS mounting screws and adjust it by turnings the TPS.NOTE:
- Turning the TP Sensor clockwise increases the output voltage.
- Tighten the screws securely after adjustment.
- Turn the ignition switch to the OFF position.
