2003 Hyundai Santa Fe Base, StandardFACTORY OEM SERVICE PROCEDURE

Trouble Codes (For 2.4L I4)

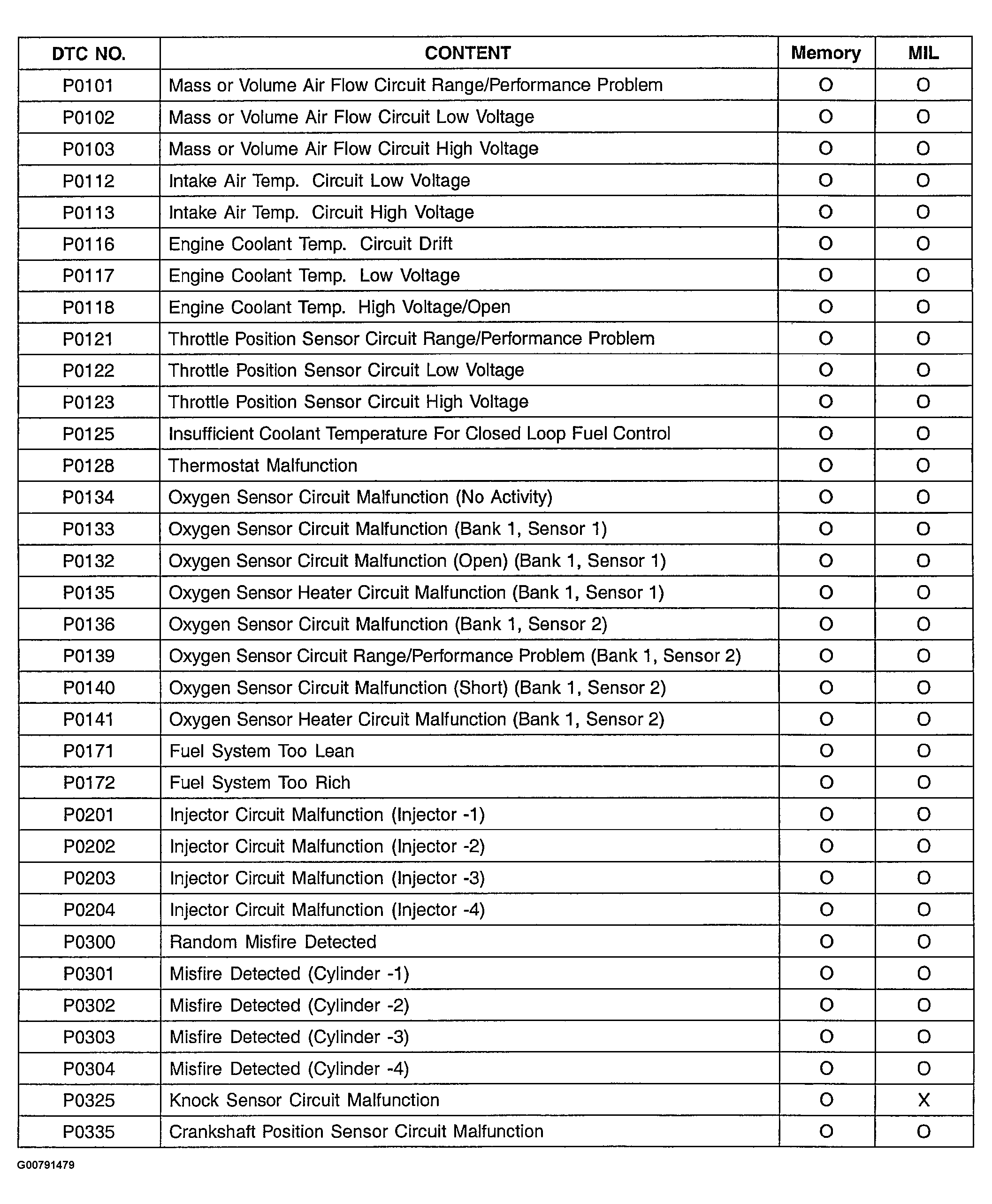

Fig 1: Inspection Chart For Diagnostic Trouble Codes (DTCs P0101-P0335)
G00791479Courtesy of HYUNDAI MOTOR CO.
