Accelerator Pedal: Inspection
- Check the inner and outer cable for damage.
- Check the cable for smooth movement.
- Check the accelerator arm for deformation.
- Check the return spring for deterioration.
- Check the connection of the bushing to end metal fitting.
- Check that the accelerator switch operates properly.

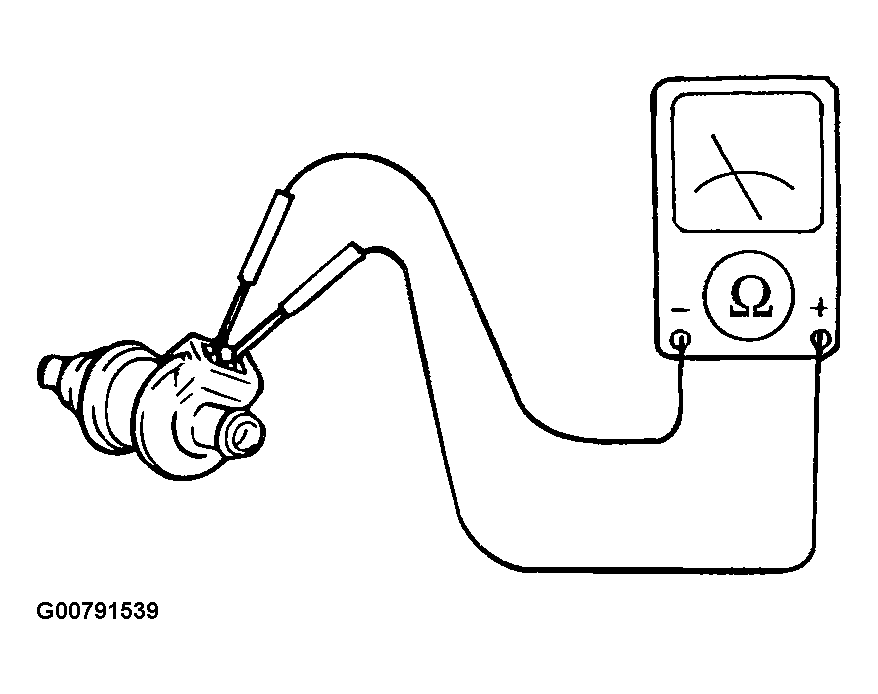

- Measure the resistance of the injectors between the terminals using an ohmmeter.
Resistance:Β 13-16Ξ© (at 20Β°C (68Β°F))
- If the resistance is not within specification, replace the injector.
Use the Manual With the Right Hardware
Pair factory procedures with proven DIY tools so the instructions are easier to execute.
Disclosure: Verified tool recommendations may earn an affiliate commission at no cost to you.
When to See a Mechanic
Stop DIY work and contact a certified mechanic immediately if any of the following apply:
- β’ You smell fuel, burning insulation, or see smoke.
- β’ Brakes feel soft, pull hard to one side, or make grinding noises.
- β’ The engine overheats, stalls repeatedly, or misfires under load.
- β’ You are missing required tools, torque specs, or safe lifting equipment.
- β’ You are not confident in the next step or safety outcome.
