2003 Hyundai Santa Fe Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Coupling Assembly: Disassembly

Remove the coupling flange mounting nut.

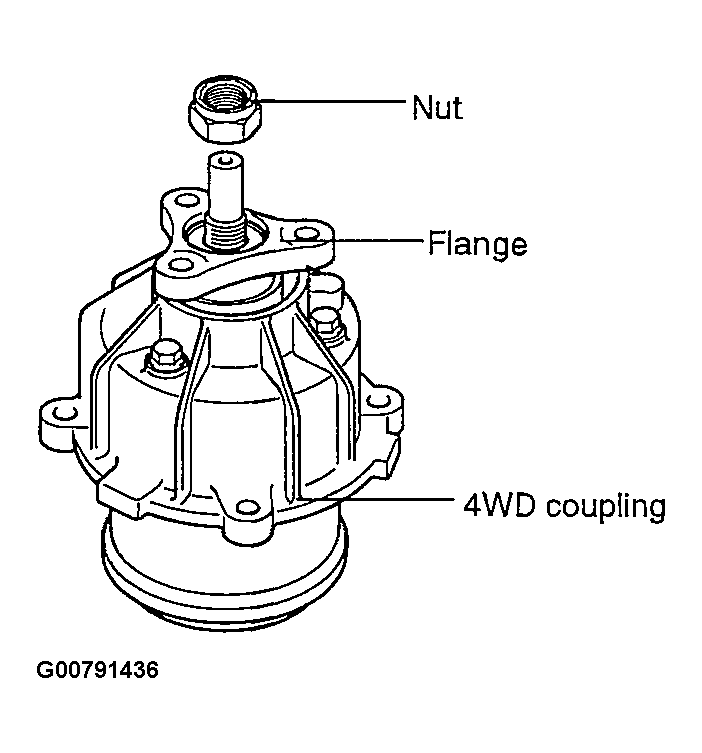

Fig 1: Identifying Flange Mounting Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the flange spacer.

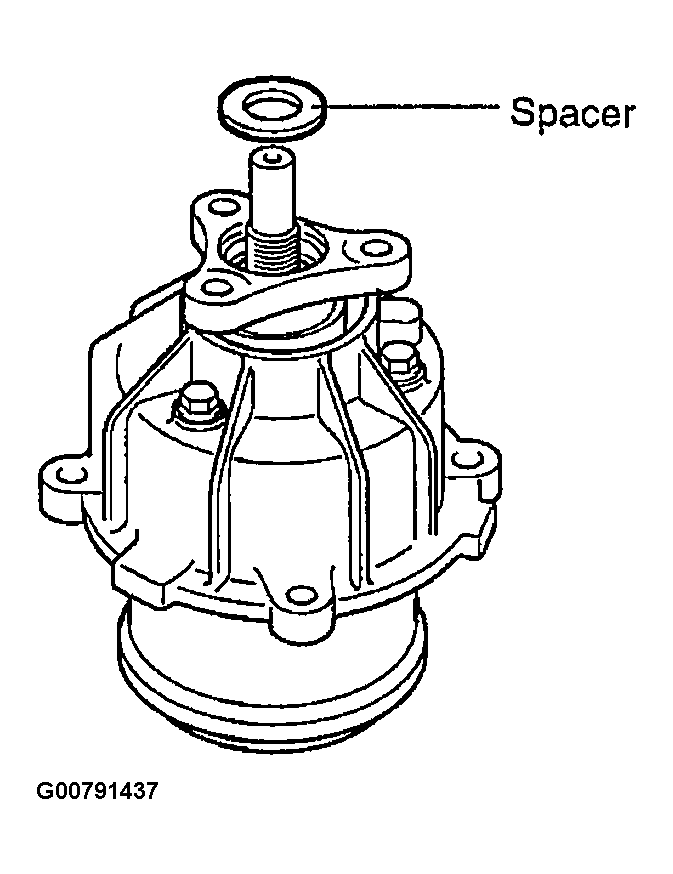

Fig 2: Identifying Flange Spacer
Courtesy of HYUNDAI MOTOR CO.
Remove the coupling flange oil seal.

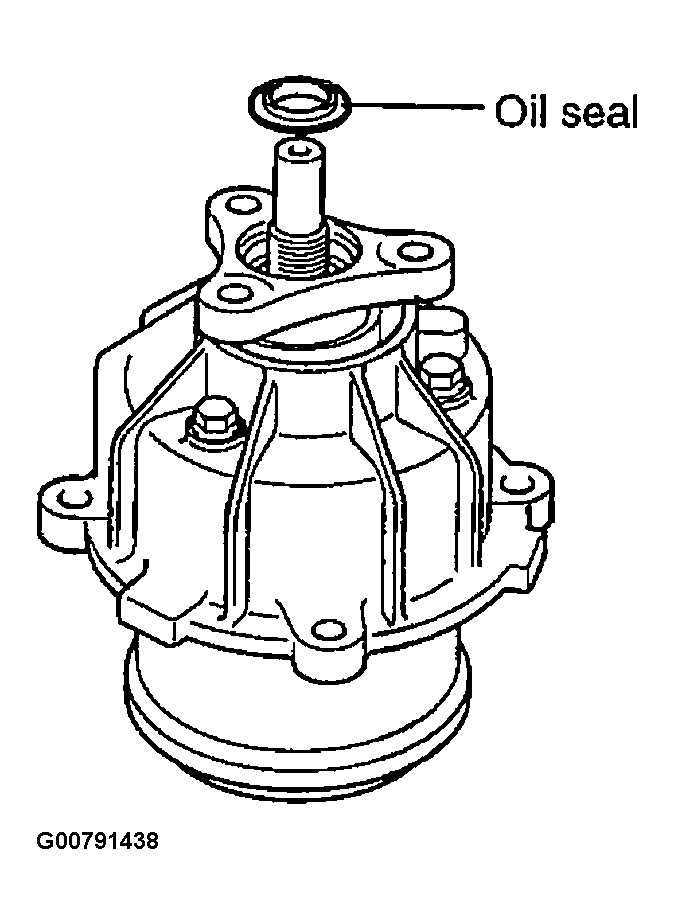

Fig 3: Identifying Coupling Flange Oil Seal
Courtesy of HYUNDAI MOTOR CO.
Using a general tool, 3-way puller, remove the flange assembly.

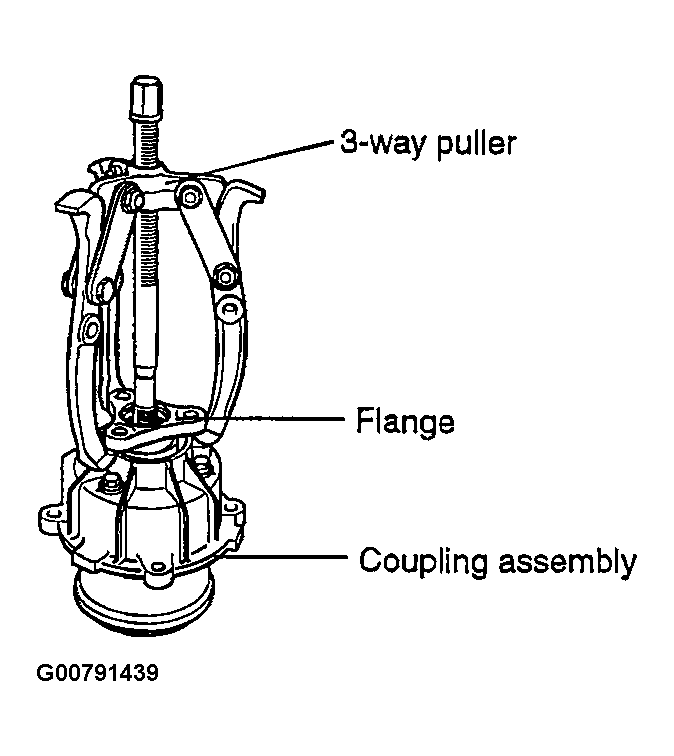

Fig 4: Removing Flange Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the flange oil seal using special tool (09432 33200).

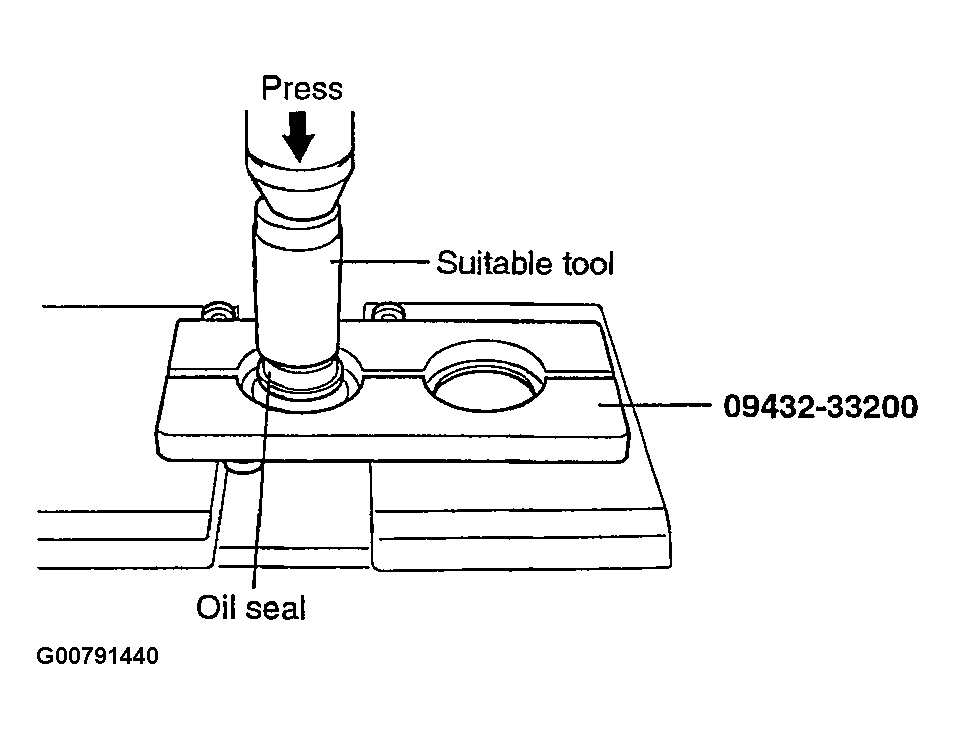

Fig 5: Removing Flange Oil Seal
Courtesy of HYUNDAI MOTOR CO.
Remove the coupling case assembly.

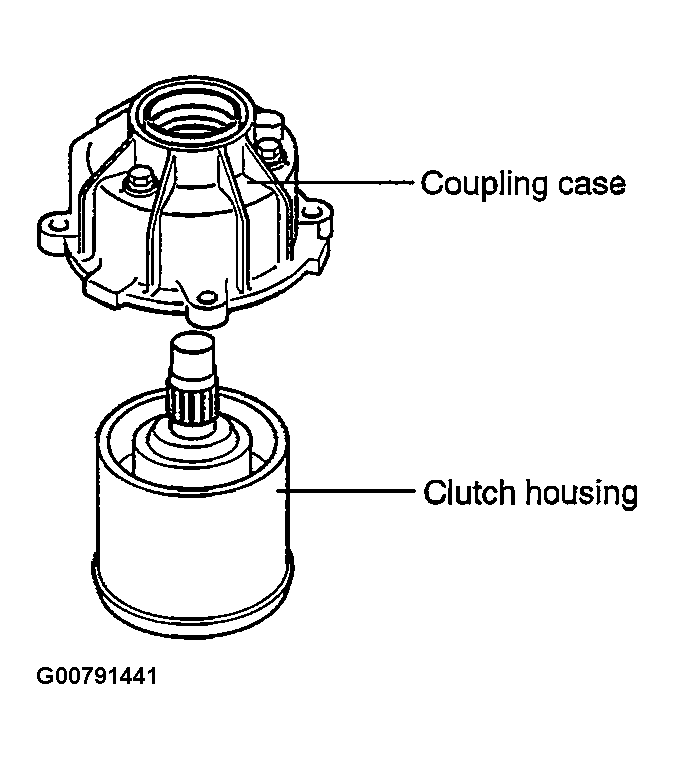

Fig 6: Removing Coupling Case
Courtesy of HYUNDAI MOTOR CO.
1. Remove the coupling case oil seal

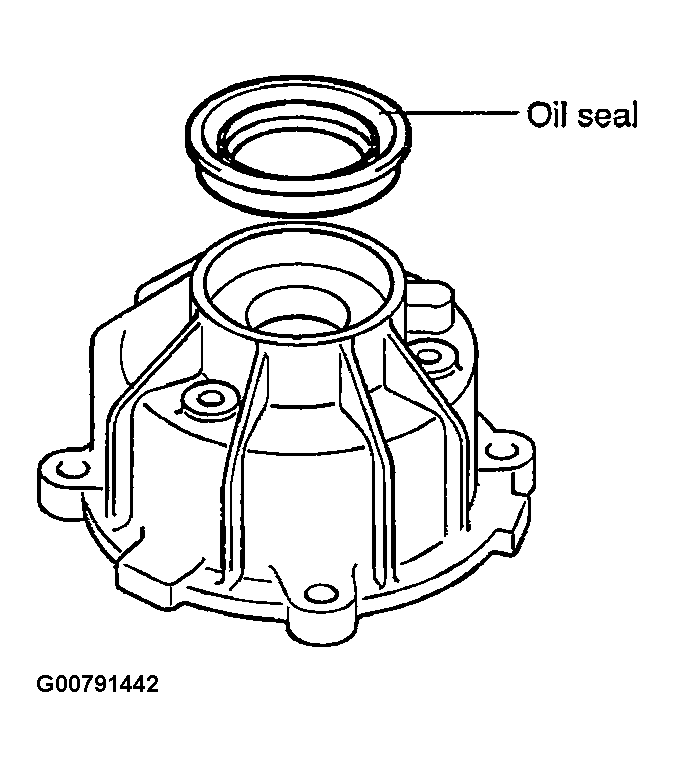

  Fig 7: Removing Coupling Case Oil Seal
  Courtesy of HYUNDAI MOTOR CO.
