2003 Hyundai Accent BaseFACTORY OEM SERVICE PROCEDURE
Starter Specifications
STARTER SPECIFICATIONS
| Application | Specification | |||
|---|---|---|---|---|
| Amperage | 60 Amps | |||
| Armature Maximum Runout | 0.004" (0.10 mm) | |||

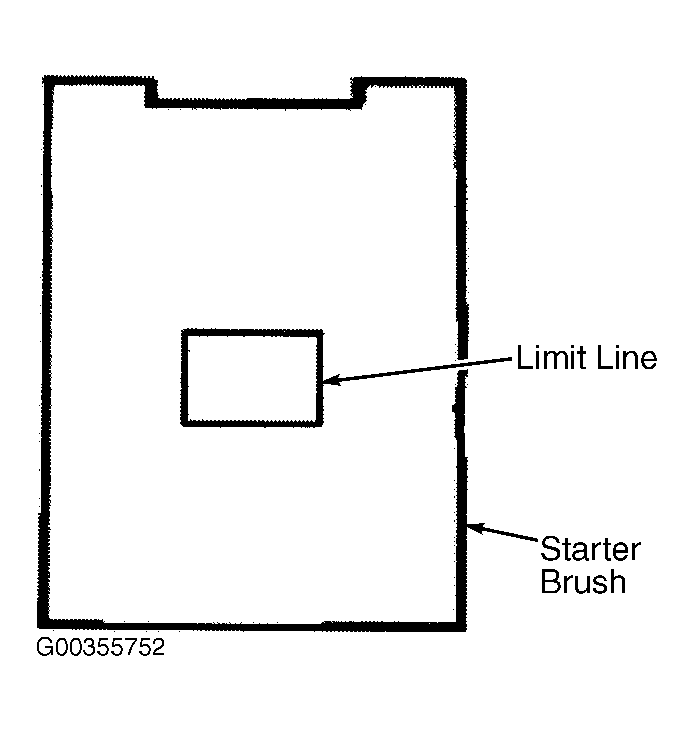

| Brush Length | (1) | |||
| Commutator Outside Diameter | 1.118-1.157" (28.4-29.4 mm) | |||
| Insulator Depth | 0.008-0.020" (0.2-0.5 mm) | |||
| Maximum Speed | 5500 RPM | |||
| No-Load Ratings | ||||
| Maximum Draw | 90 Amps | |||
| Minimum RPM | 2800 | |||
| Number Of Pinion Teeth | 8 | |||
| Pinion Gap | 0.020-0.079" (0.5-2.0 mm) | |||
| Rated Output | 12 Volts (0.9 kW) | |||
| Rated Time | 30 Seconds | |||
| Terminal Voltage | 11.5 Volts | |||
| Type | Direct Drive | |||
|
||||
