2003 Hyundai Accent BaseFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

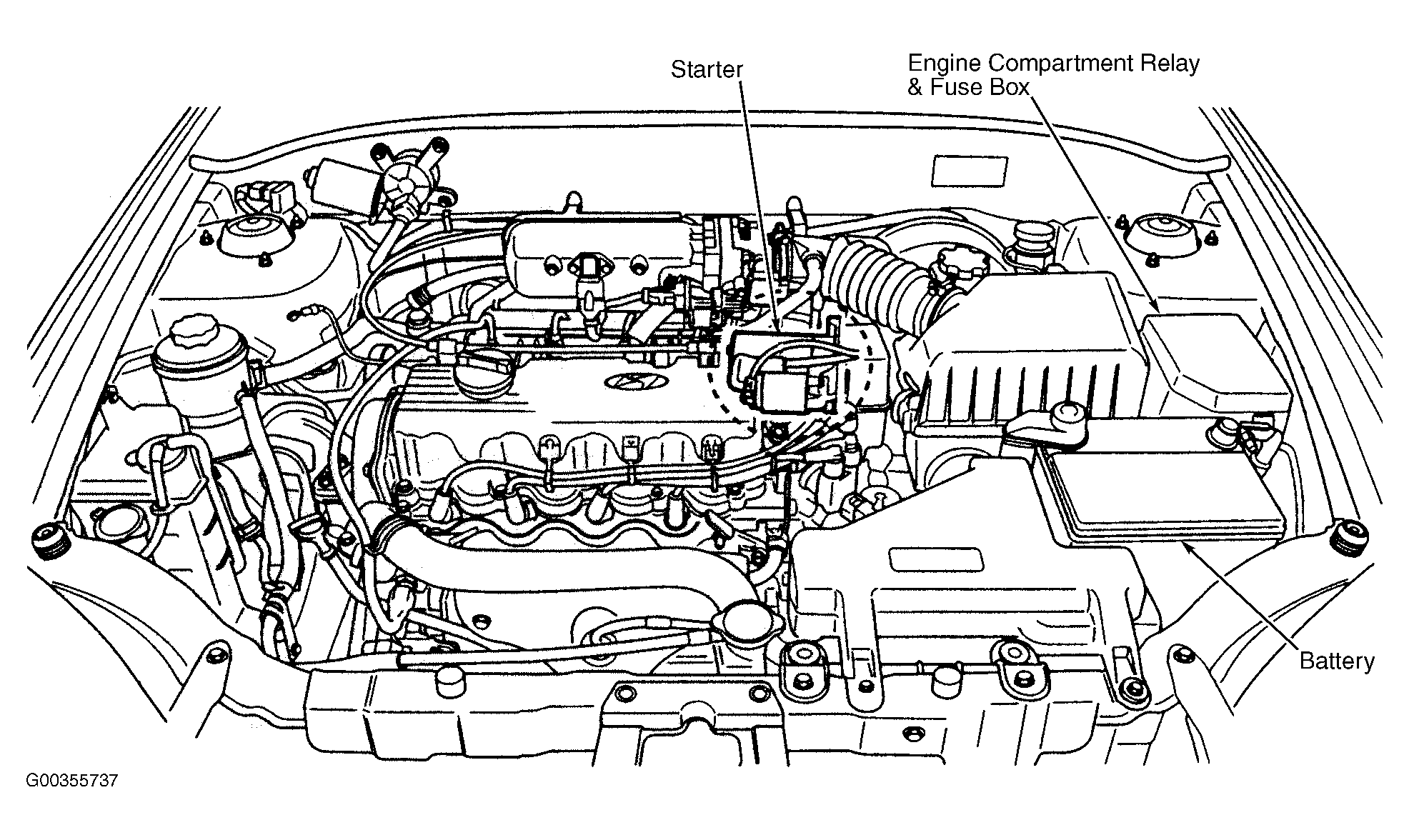

| Battery | Left Front Of Engine Compartment. See Fig 1 . |
| Electronic Time & Alarm Control Module (ETACM) | Behind Instrument Panel Trim, Left Of Steering Column. See Fig 2 . |
| Engine Compartment Relay & Fuse Box | Left Side Of Engine Compartment, In Front Of Strut Tower. See Fig 1 . |
| Fusible Link | In Engine Compartment Relay & Fuse Box. See Fig 3 . |
| Starter | Left Front Of Engine. Fig 1 . |
| Starter Clutch Position Switch | Under Left Side Of Dash. Fig 4 . |
| Starter Relay | In Engine Compartment Fuse Box. See Fig 3 . |
| Transaxle Range Switch | On Top Left Of Transaxle. Fig 5 . |
