2003 Hyundai Accent BaseFACTORY OEM SERVICE PROCEDURE
Test Procedure
- Turn ignition on, with engine off. Ensure that the charge indicator light is illuminated.

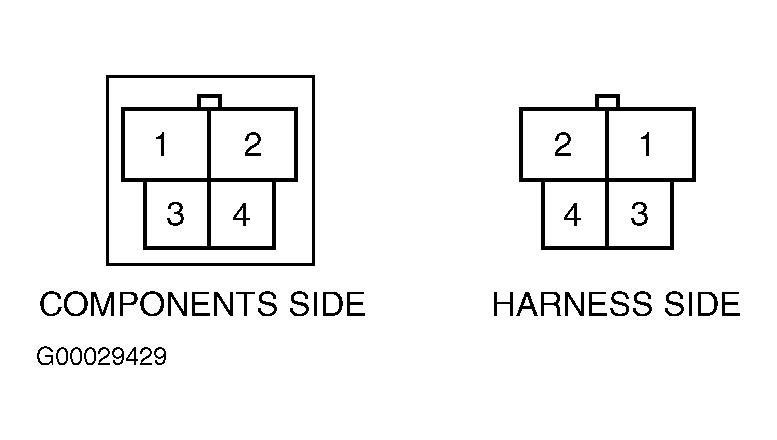

- Disconnect pre-excitation resistor 4-pin connector, located in engine compartment fuse box. Connect the positive lead of the DVOM to terminal No. 4 and the negative lead to terminal No. 1 of the pre-excitation resistor. See Fig 1 .
NOTE:
If the leads of the Digital Volt-Ohmmeter (DVOM) are not connected properly, there will be no reading on the ohmmeter. Be sure to connect the leads correctly.
