2002 Hyundai XG350 BaseFACTORY OEM SERVICE PROCEDURE

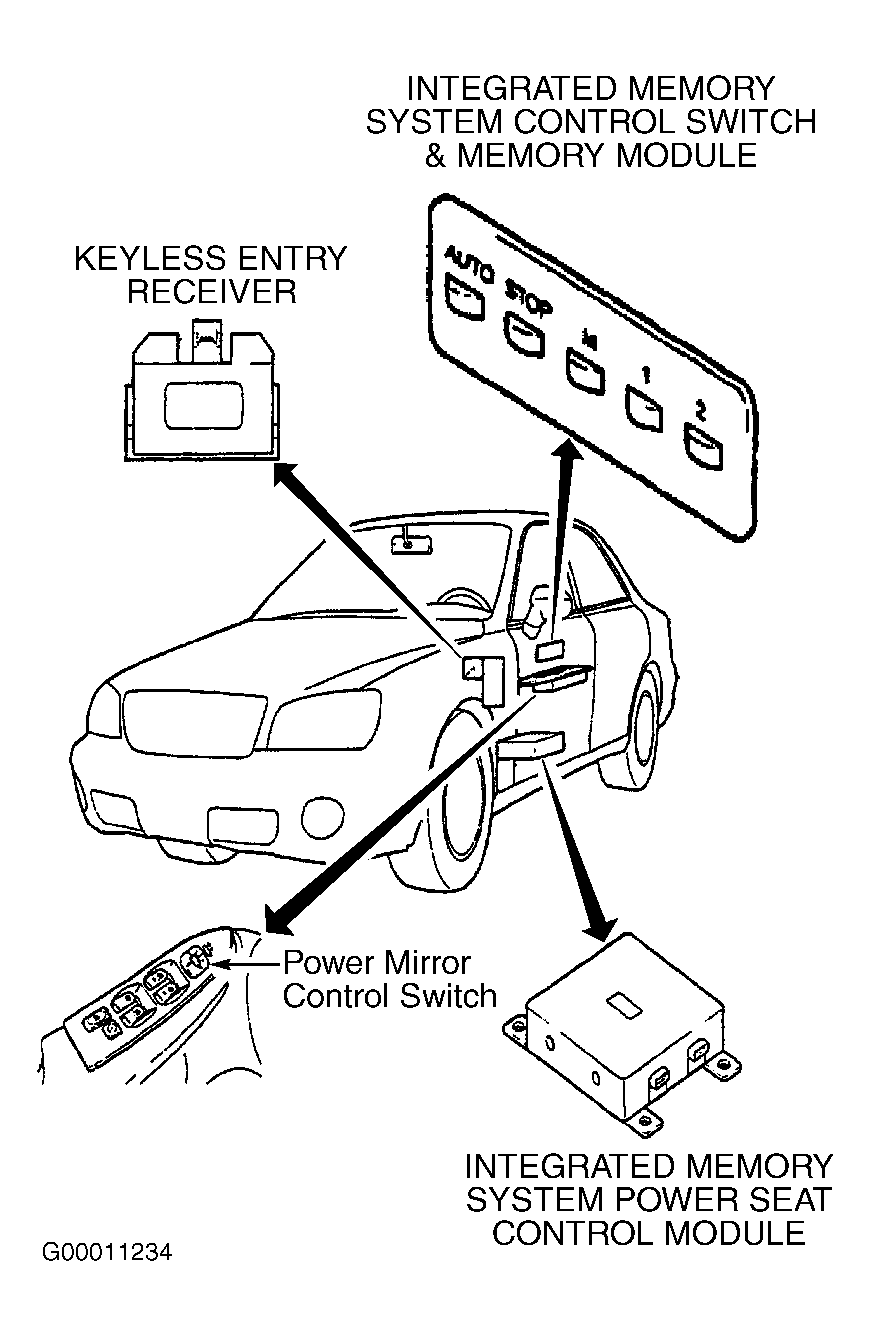

Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Electronic Timing & Alarm Control System (ETACS) | Under Driver's Side Of Instrument Panel |
| Keyless Entry Transmitter Receiver | Under Driver's Side Of Instrument Panel |
| Integrated Memory System (IMS) Control Module | Under Driver's Seat |
| Integrated Memory System (IMS) Memory Module | Driver's Side Door Memory Switch |
