2002 Hyundai Accent GL, AutomaticFACTORY OEM SERVICE PROCEDURE

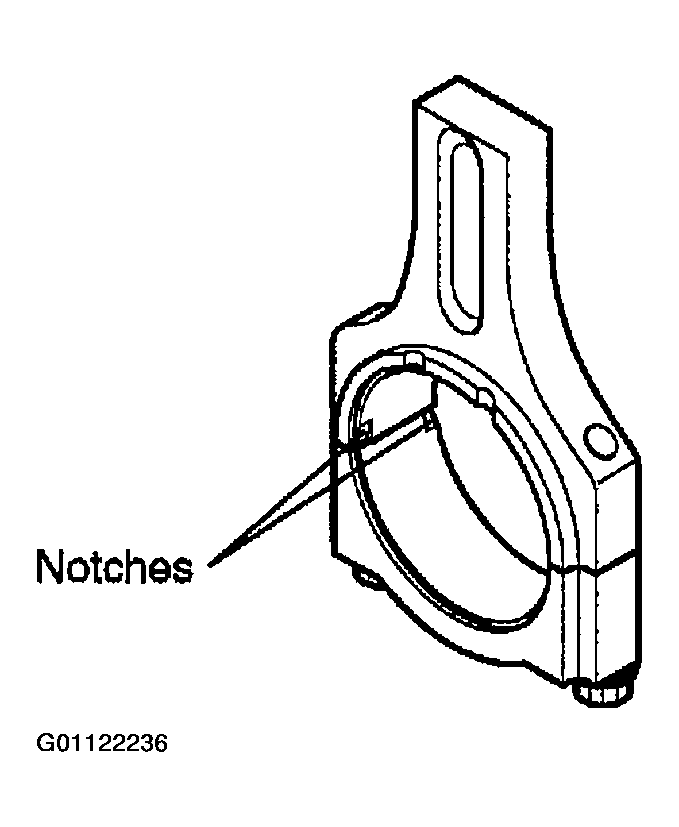

Connecting Rod Cap
CAUTION:
Keep the bearings in order with their corresponding connecting rods (according to cylinder numbers) for proper reassembly.
- Remove the connecting rod cap bolts, then remove the caps and the big end lower bearing.
- Push each piston connecting rod assembly toward the top of the cylinder.
