2002 Hyundai Accent GL, AutomaticFACTORY OEM SERVICE PROCEDURE
Mounting Bushing
NOTE:
- The front and rear cross member mounting bushings are directional.
- Be sure to install the bushings in the correct direction.

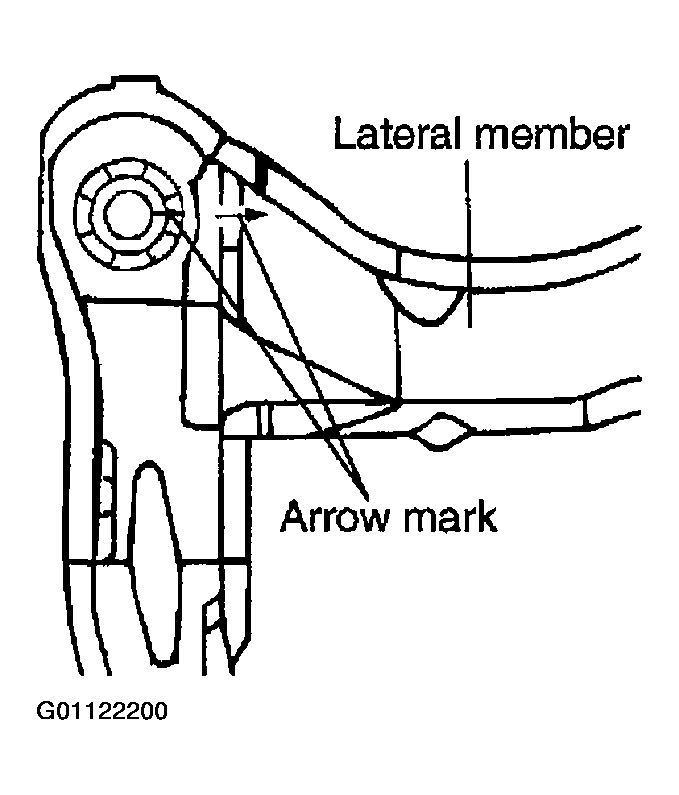

- There are 2 arrow marks on the upper side of the front and rear cross member mounting bushings.
- When installing the bushings into the cross member inner pipe, align the arrow marks on the bushing with the lateral direction of the lateral member.
