Power Door Lock Control Module

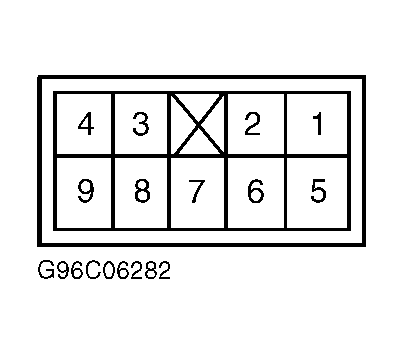

Remove power door lock control module and disconnect 9-pin connector. Ensure continuity exists between indicated module terminals. See POWER DOOR LOCK CONTROL MODULE TEST table. See WIRING DIAGRAMS . See Fig 1 . If continuity is not as specified. Replace control module.
| Application | Continuity Between Terminals No. |
|---|---|
| Accent | 1 & 5; 3 & 4; 6 & 7; 8 & 9 |
