2000 Hyundai Tiburon AutomaticFACTORY OEM SERVICE PROCEDURE
Power Window Sub-Switch

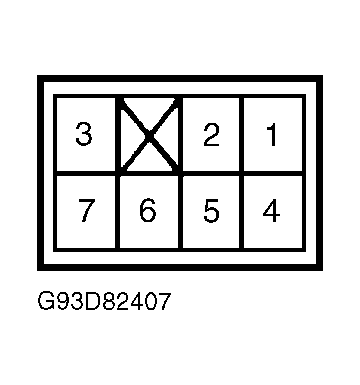

Remove sub-switch to be tested. Check continuity between specified terminals with switch in specified position. See SUB-SWITCH CONTINUITY table. See Fig 1. If continuity is not as specified, replace sub-switch.
SUB-SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. | |||
|---|---|---|---|---|
| Accent | (1) | |||
| Elantra | ||||
| Up | 4 & 6; 2 & 7 | |||
| Off | 4 & 6; 5 & 7 | |||
| Down | 2 & 6; 5 & 7 | |||
| Sonata | (1) | |||
| Tiburon | ||||
| Up | 3 & 7; 1 & 2 | |||
| Off | 1, 3 & 7 | |||
| Down | 2 & 3; 1 & 7 | |||
|
||||
