1996 Hyundai Elantra GLFACTORY OEM SERVICE PROCEDURE
Power Circuits

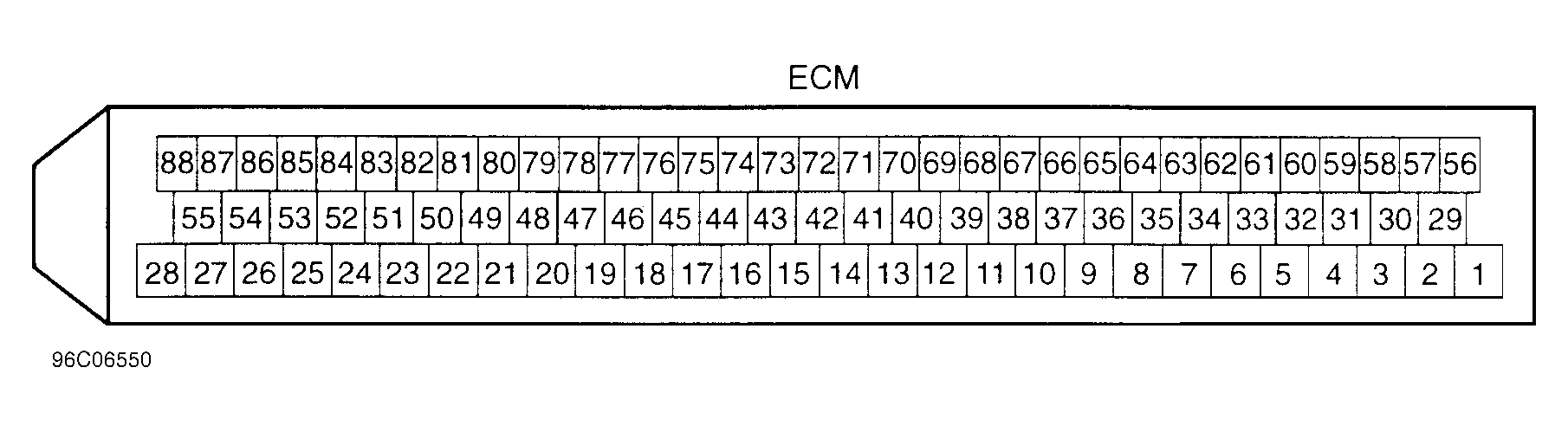

Turn ignition on. Check for battery voltage at ECM power terminals. See POWER TERMINAL IDENTIFICATION table. If battery voltage is not present, check operation of SFI control relay. See RELAYS.
GROUND TERMINAL IDENTIFICATION
| Application | ECM Terminals No. (1) | ||
|---|---|---|---|
| Elantra | 28 & 55 | ||
|
|||
POWER TERMINAL IDENTIFICATION
| Application | ECM Terminals No. (1) | ||
|---|---|---|---|
| Elantra | 25 & 52 | ||
|
|||
