1994 Hyundai Excel GL, Standard
Fuel Pump Test
1994 Hyundai Excel GL, StandardSECTION Fuel Pump Test

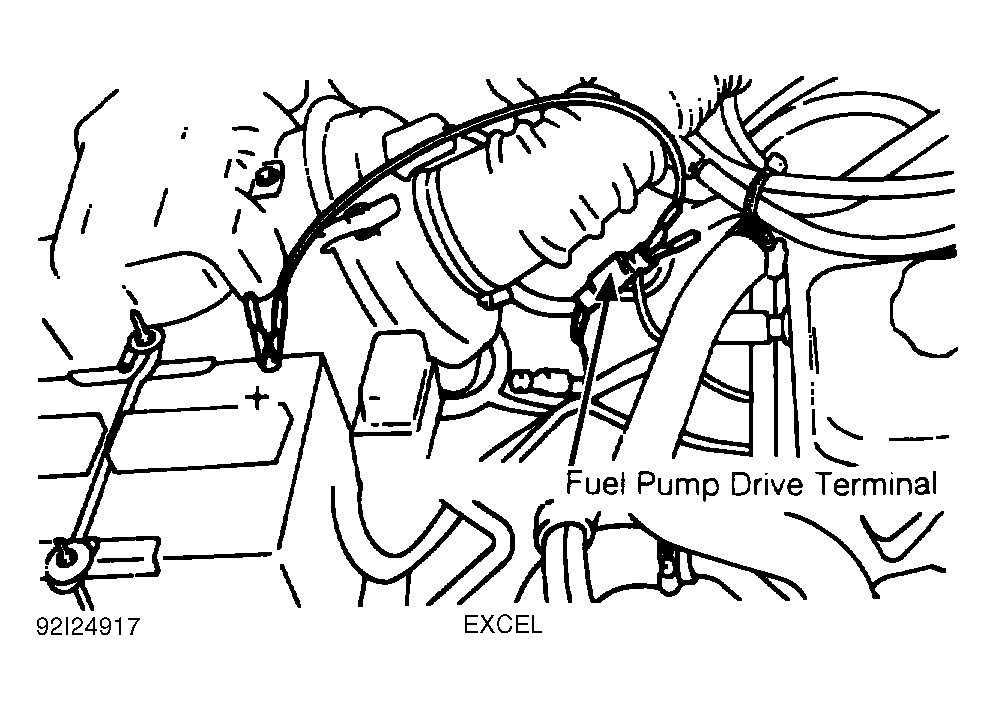

Turn ignition off. Apply battery voltage to fuel pump drive terminal Yellow wire. See Fig 1 . Remove fuel tank cap and listen for fuel pump operation. Pinch fuel hoses by hand and ensure fuel pressure can be felt.
