Power Circuits

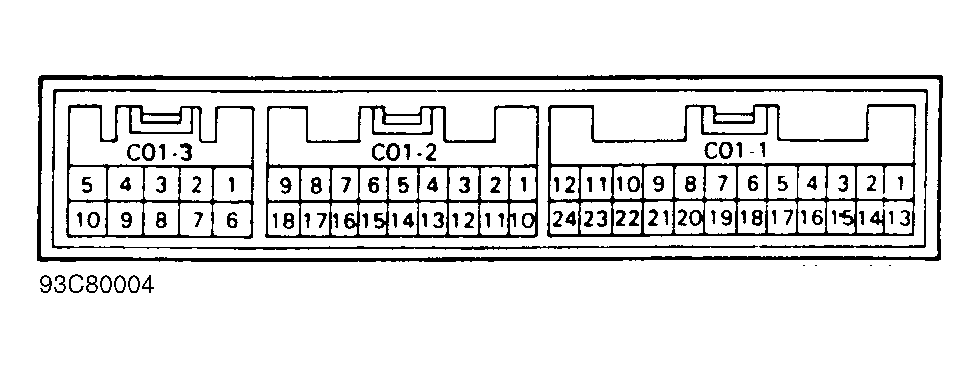

Turn ignition on. Check for battery voltage at ECM power terminals. See POWER TERMINAL IDENTIFICATION table. If battery voltage is not present, check operation of MPI control relay. See RELAYS.
| Application | (1) ECM Terminal No. | ||||||
|---|---|---|---|---|---|---|---|
| Elantra, Excel (Fed.) & Sonata | (2) 5 & 10 | ||||||
| Excel (CA) | (3) 11 & 14 | ||||||
| Scoupe | 19 | ||||||
|
|||||||
| Application | (1) ECM Terminal No. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Elantra | (2) 12 & 15 | ||||||||||
| Excel | (3) 4 & 9 | ||||||||||
| Scoupe | 18 & (4) 42 | ||||||||||
| Sonata | (5) 16 & 17 | ||||||||||
|
|||||||||||
