1990 Hyundai Excel Base, 2D Hatchback, StandardFACTORY OEM SERVICE PROCEDURE
Grid Filament Repair

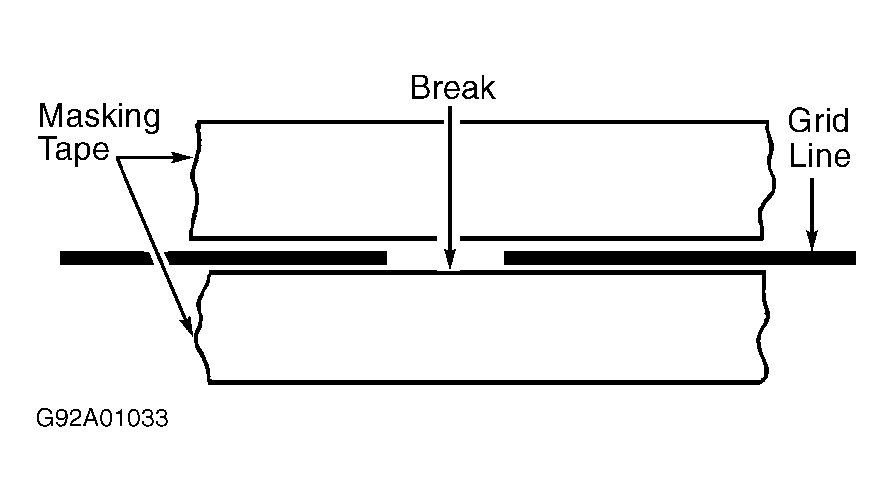

- If repair is required, use razor blade to remove small amount of silicone covering from damaged area, exposing grid line. Clean exposed broken grid line area with alcohol. Place masking tape along both sides of grid line area to be repaired. See Fig 1 .
- Thoroughly mix small amount of repair agent (Dupont paste No. 4817). Apply agent to grid line break area, overlapping each end of line about 3/4". After a few minutes drying time, carefully remove tape from line edges. DO NOT touch repaired area for 24 hours.
