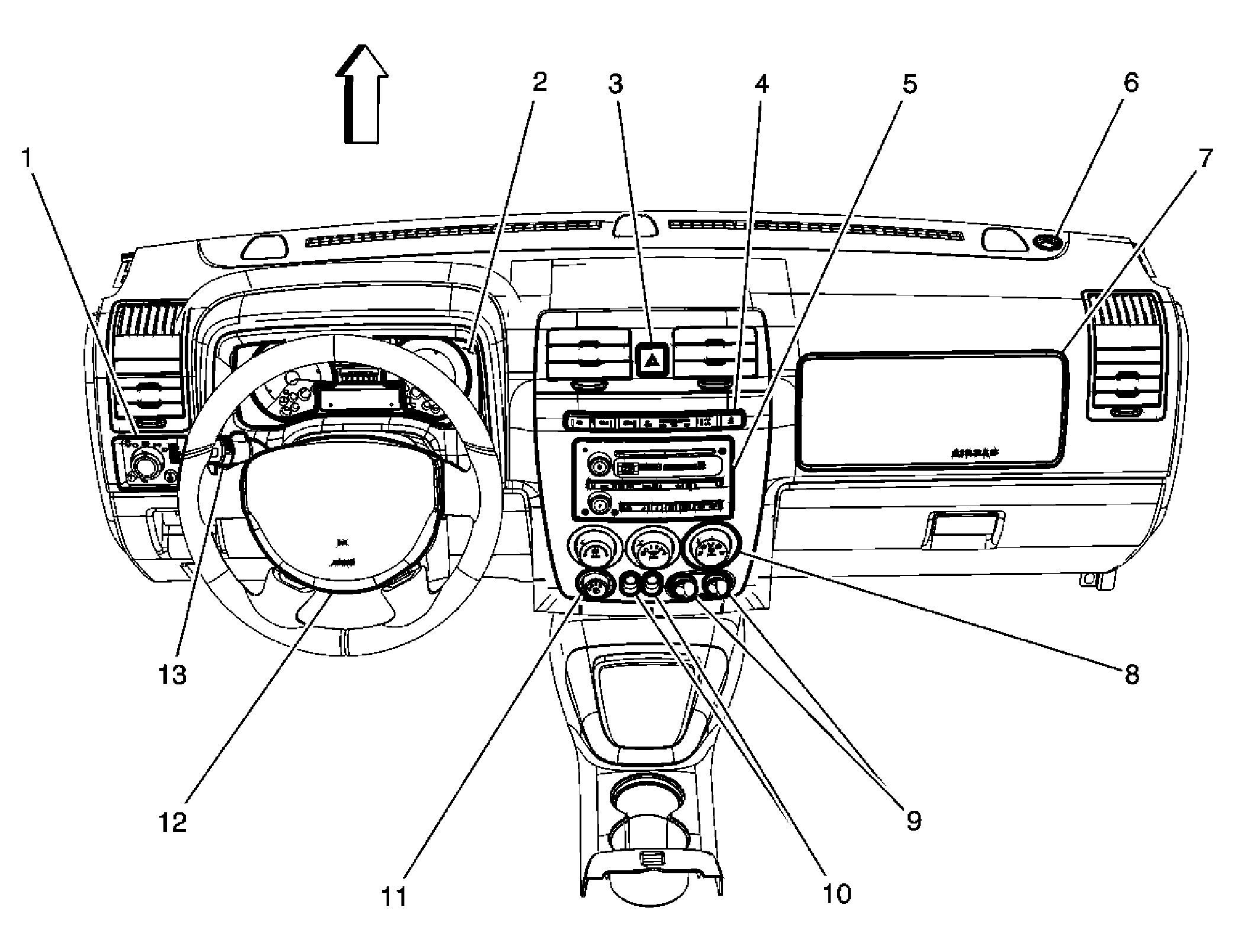

Fig 1: I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch (Left Hand Drive)
2	Instrument Panel Cluster (IPC) (Left Hand Drive)
3	Hazard Warning Switch
4	Multifunction Switch I/P
5	Radio
6	Ambient Light Sensor (Left Hand Drive)
7	Inflatable Restraint I/P Module (Left Hand Drive)
8	HVAC Control Module
9	Accessory Power Outlet - I/P 1 and Accessory Power Outlet - I/P 2
10	Frontview Camera Switch (UVF), Off Road Grille Lamp Switch (UNR), Off Road Roof Lamp Switch (UNJ), or Traction Control Switch (TCS) (G93)
11	Window Wiper/Washer Switch - Rear (SUV)
12	Inflatable Restraint Steering Wheel Module (Left Hand Drive)
13	Turn Signal/Multifunction Switch (Left Hand Drive)

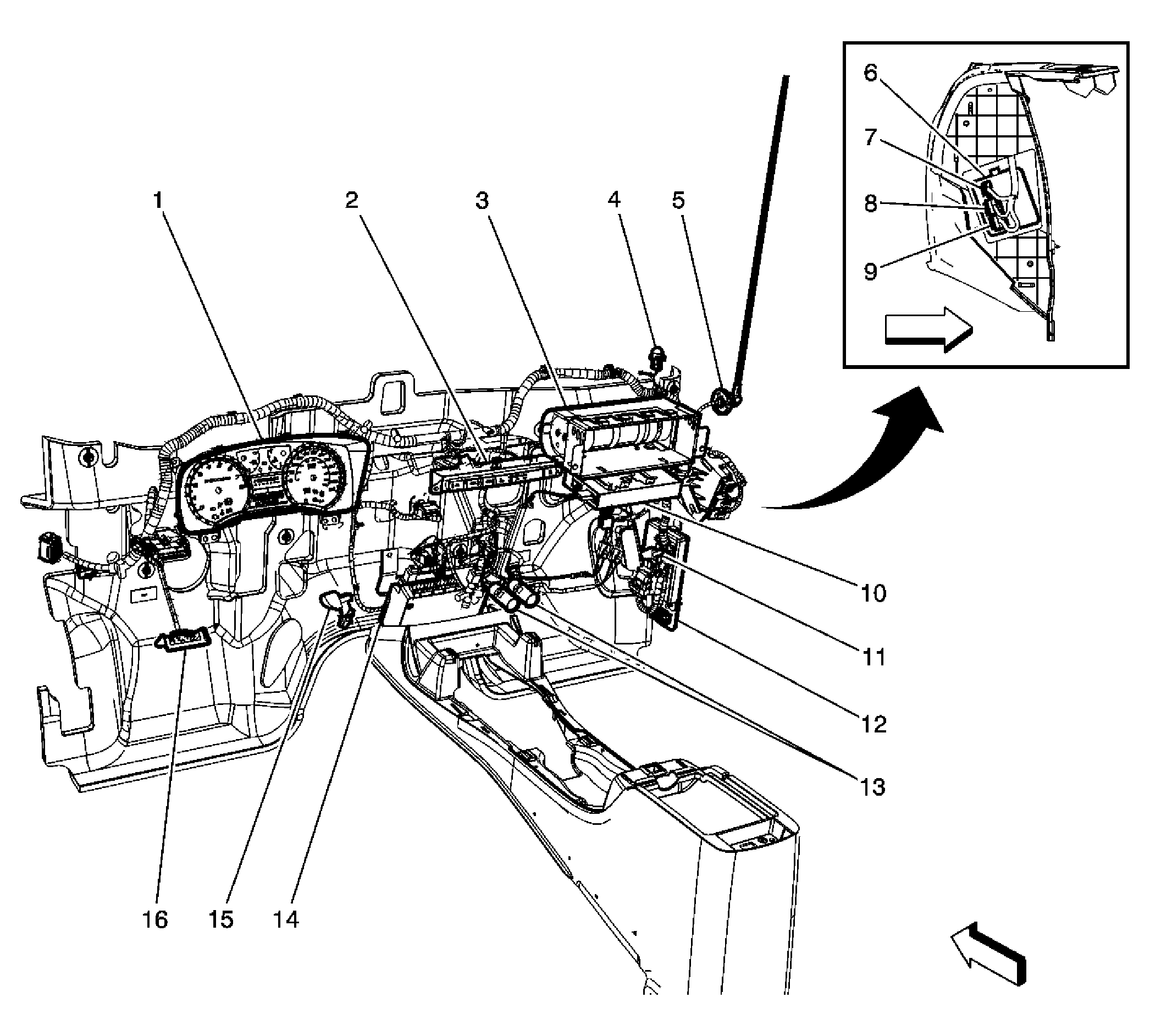

Fig 2: Behind I/P Components - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (Left Hand Drive)
2	Multifunction Switch - I/P
3	Inflatable Restraint I/P Module
4	Ambient Light Sensor (Left Hand Drive)
5	Radio Antenna
6	Transfer Case Shift Control Module
7	Transfer Case Shift Control Module X3
8	Transfer Case Shift Control Module X2
9	Transfer Case Shift Control Module X1
10	Digital Radio Receiver (U2K)
11	I/P Courtesy Lamp - Right (Left Hand Drive)
12	Body Control Module (BCM)
13	Accessory Power Outlet - 1 and Accessory Power Outlet - 2
14	Vehicle Communication Interface Module (VCIM) (UE1) or Serial Data Gateway Module (SDGM) (LVC)
15	I/P Courtesy Lamp - Left (Left Hand Drive)
16	Data Link Connector (DLC)

Fig 3: Behind I/P Components - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X205
2	X203
3	Blower Motor
4	Blower Motor High Speed Relay
5	Blower Motor Resistor
6	Recirculation Actuator
7	Evaporator Temperature Sensor
8	HVAC Control Module
9	Air Temperature Actuator - Right
10	Air Temperature Actuator - Left
11	Mode Actuator

Fig 4: Under Left Side Of I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CPP) Sensor (MA5)
2	Accelerator Pedal Position (APP) Sensor
3	Steering Wheel Position Sensor
4	Cruise Control Release Switch
5	Stop Lamp Switch
6	Park Brake Switch

Fig 5: Right Kick Panel Components

Courtesy of GENERAL MOTORS CORP.

Fig 6: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module X2
2	Inflatable Restraint Steering Wheel Module X1
3	X201 (Right Hand Drive)
4	X275 (Right Hand Drive)
5	Steering Wheel Position Sensor
6	Ignition Lock Cylinder Control Actuator (MD8 or M30)
7	Theft Deterrent Module (TDM) (BAE)
8	Ignition Switch
9	Turn Signal/Multifunction Switch
10	Horn Switch Connector

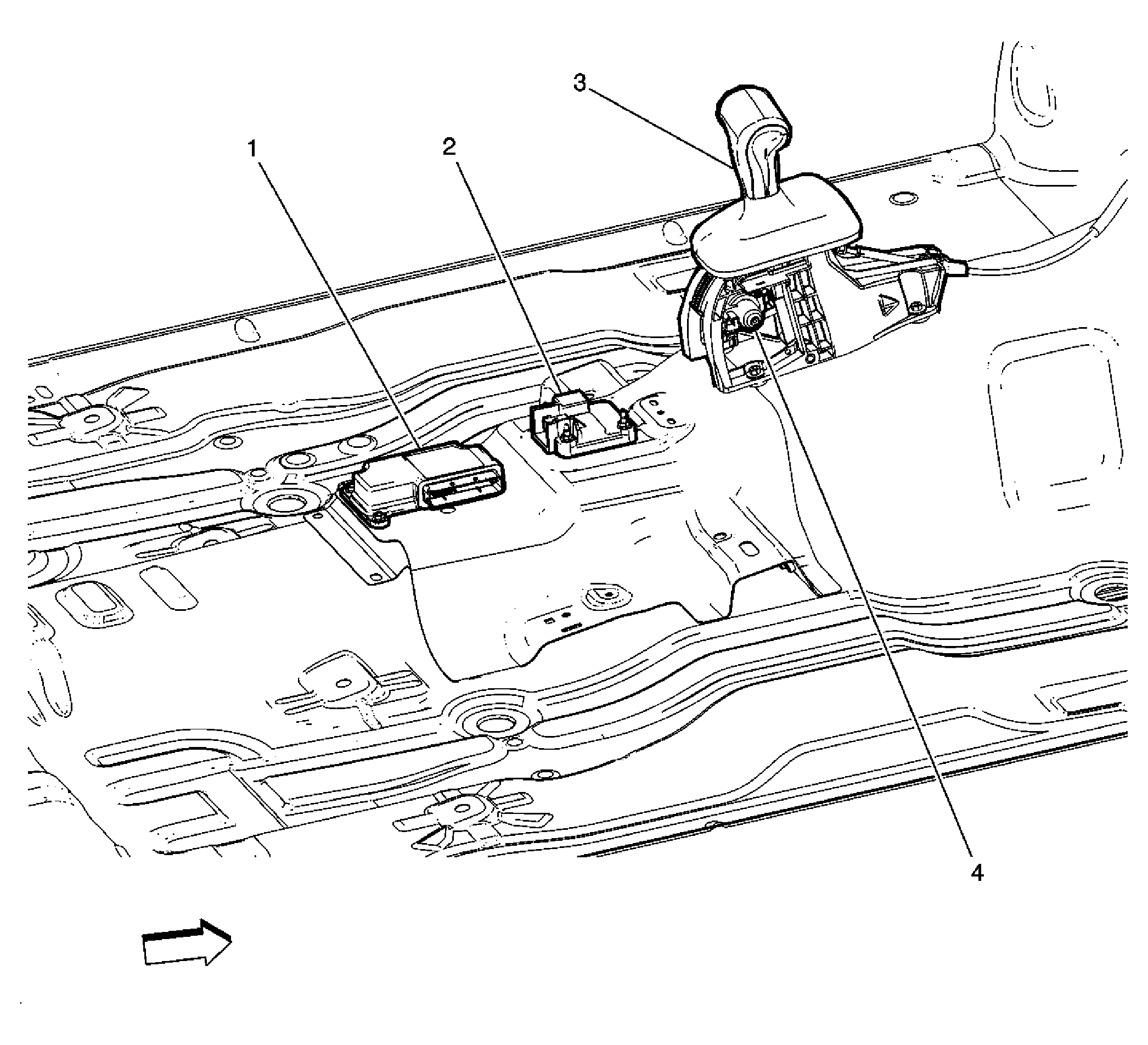

Fig 7: Center Of Floor Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Inflatable Restraint Vehicle Rollover Sensor
3	Automatic Transmission Shift Lever (MD8 or M30)
4	Automatic Transmission Shift Lock Control Solenoid (MD8 or M30)
