2009 Hummer H3 V8-5.3LFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Service and Repair
Vehicle Speed Sensor Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

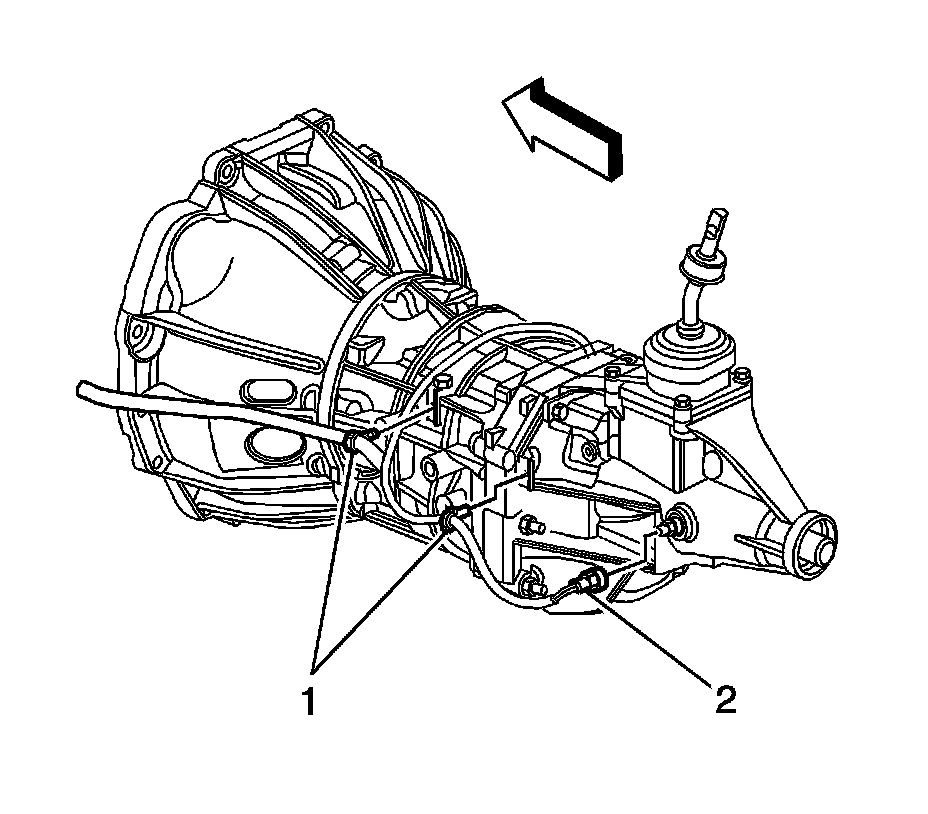

2. Disconnect the vehicle speed sensor (VSS) electrical connector (2).

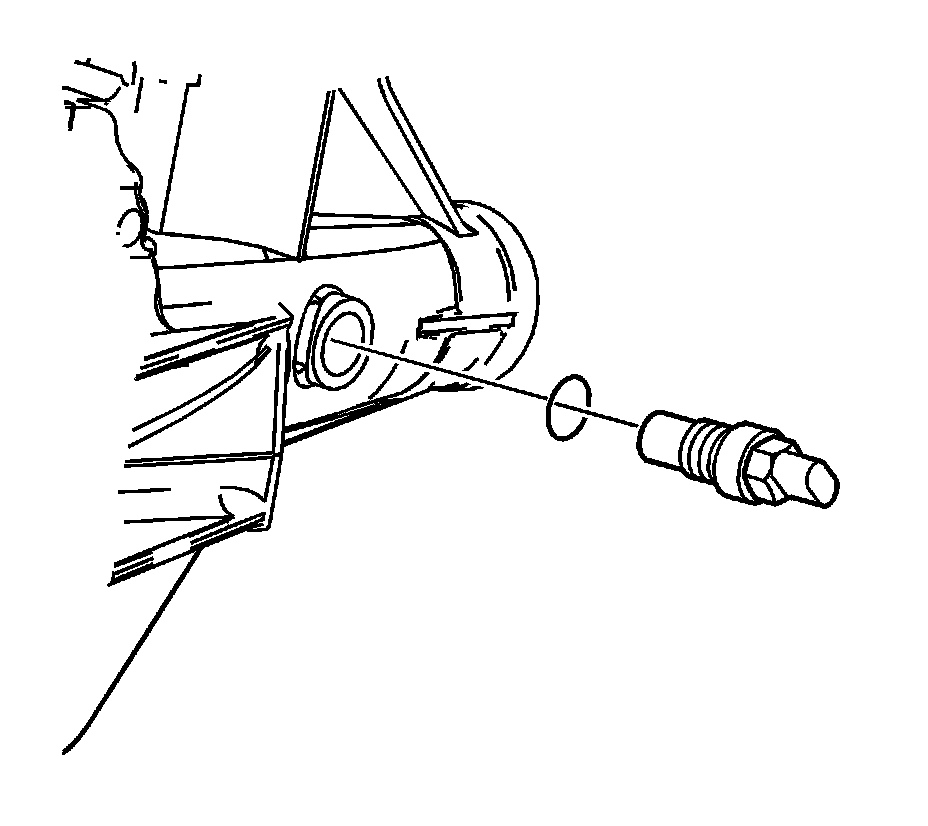

3. Remove the VSS with O-ring seal.
Installation Procedure
Caution: Refer to Component Fastener Tightening Caution (Component Fastener Tightening Caution).
1. Install the VSS with O-ring seal.
Tighten the vehicle speed sensor (VSS) to 17 Nm (13 lb ft).
2. Connect the VSS electrical connector (2).
3. Lower the vehicle.
