2009 Hummer H3 V8-5.3LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Locations
Powertrain Component Views

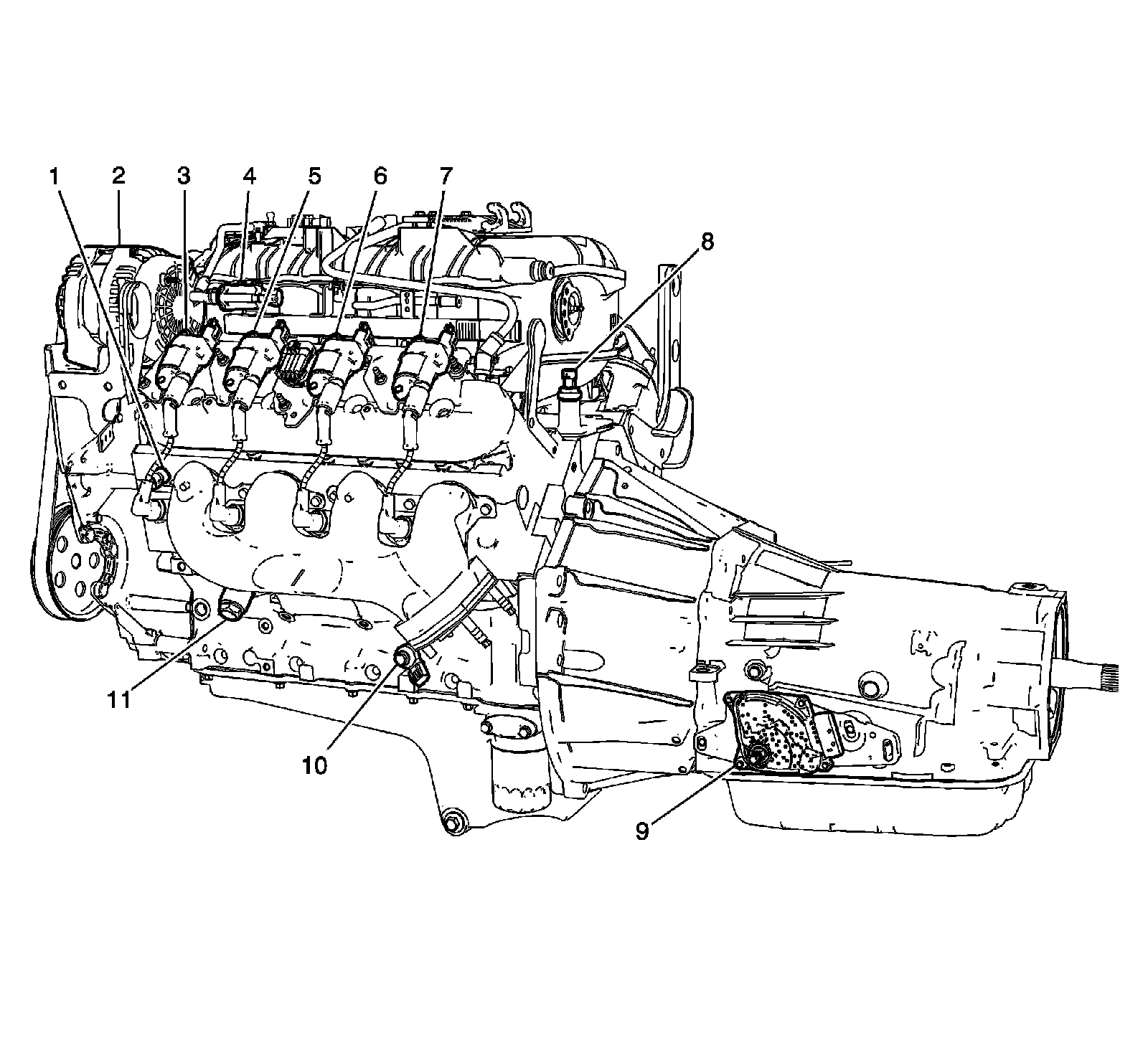

Engine - Left Side (LH8)
1 - Engine Coolant Temperature (ECT) Sensor
2 - Generator
3 - Ignition Coil 1
4 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
5 - Ignition Coil 3
6 - Ignition Coil 5
7 - Ignition Coil 7
8 - Engine Oil Pressure (EOP) Sensor
9 - Park/Neutral Position (PNP) Switch (M30)
10 - Knock Sensor (KS) 1
11 - Engine Block Heater Connector (K05)
Rear of the Transmission and Transfer Case Components (M30)
1 - Transmission
2 - X175
3 - Heated Oxygen Sensor (HO2S) 2 Connector (LLR)
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector
6 - Park/Neutral Position (PNP) Switch
