2009 Hummer H3 V8-5.3LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Locations
Powertrain Component Views
Engine - Left Side (LH8)
1 - Engine Coolant Temperature (ECT) Sensor
2 - Generator
3 - Ignition Coil 1
4 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
5 - Ignition Coil 3
6 - Ignition Coil 5
7 - Ignition Coil 7
8 - Engine Oil Pressure (EOP) Sensor
9 - Park/Neutral Position (PNP) Switch (M30)
10 - Knock Sensor (KS) 1
11 - Engine Block Heater Connector (K05)

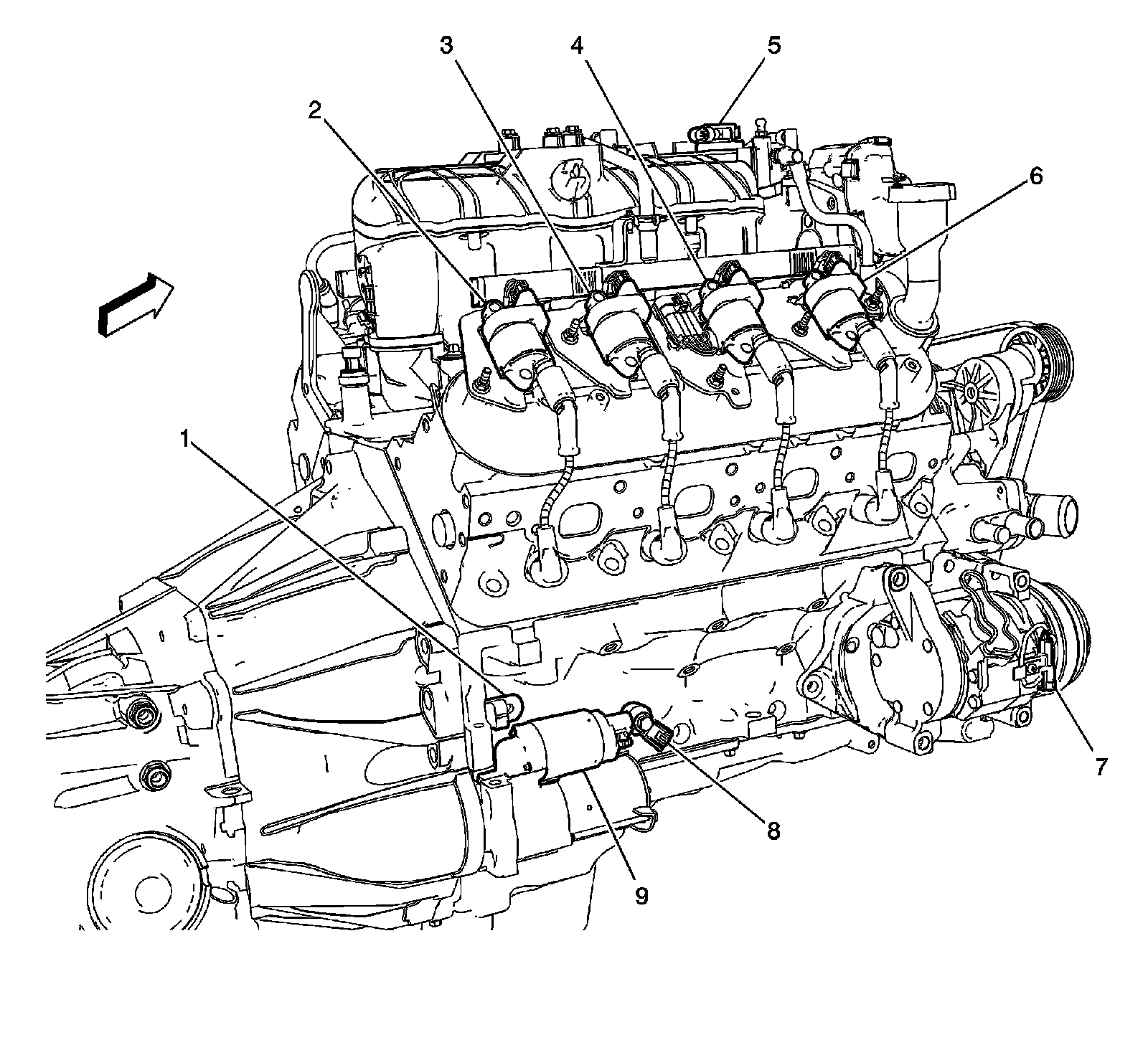

Engine - Right Side (LH8)
1 - Crankshaft Position (CKP) Sensor
2 - Ignition Coil 8
3 - Ignition Coil 6
4 - Ignition Coil 4
5 - Manifold Absolute Pressure (MAP) Sensor
6 - Ignition Coil 2
7 - A/C Compressor Clutch
8 - Knock Sensor (KS) 2
9 - Starter Motor
