2009 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Thread Repair Specifications
Thread Repair Specifications

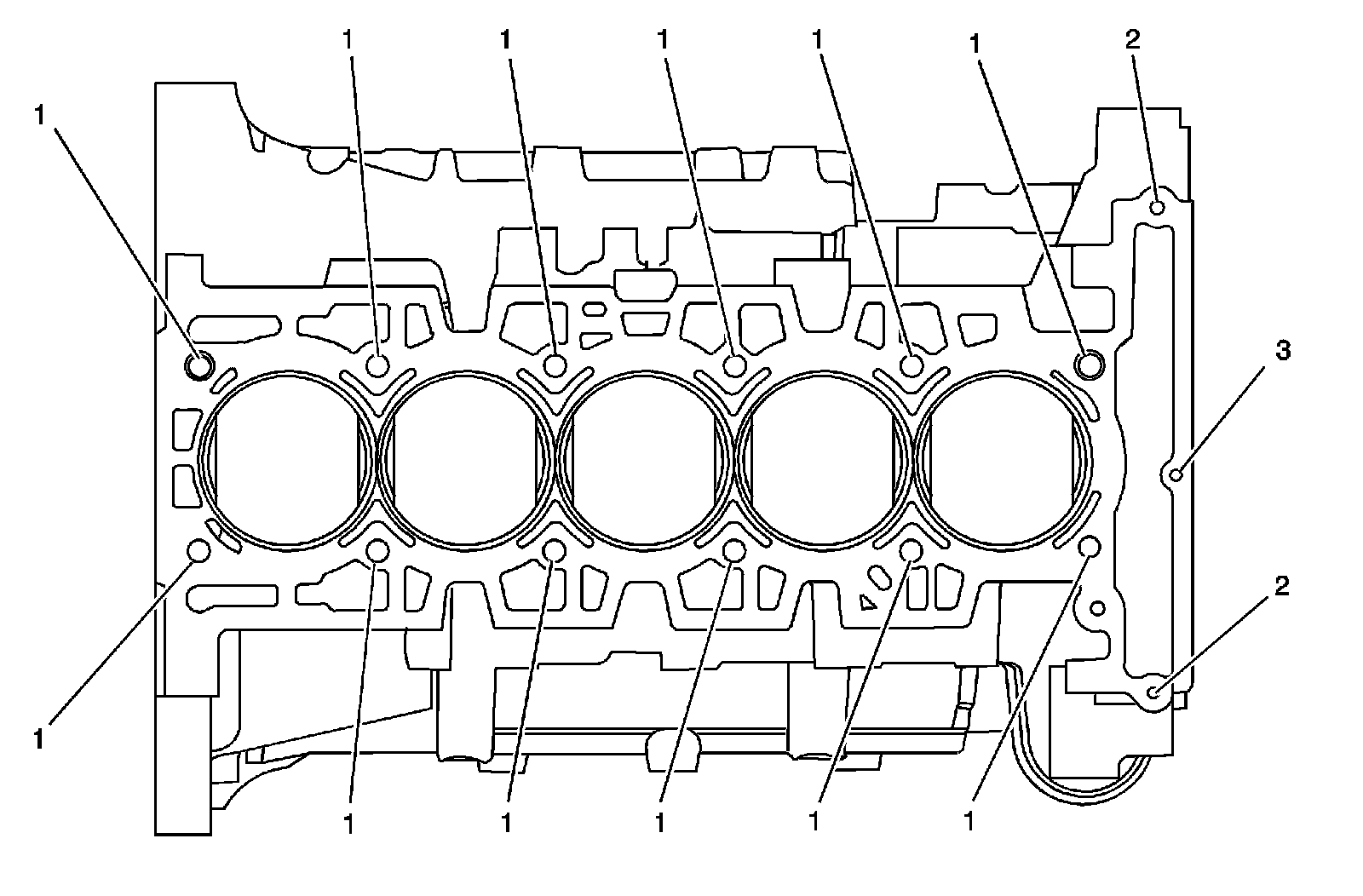

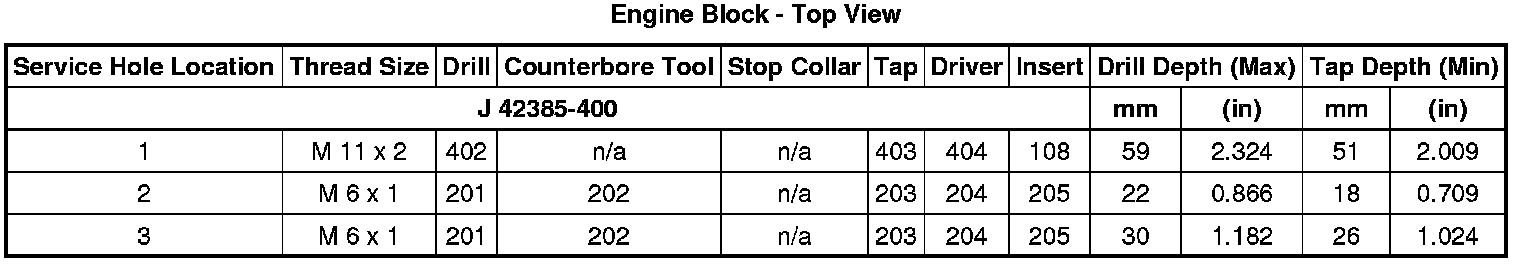

Engine Block - Top View

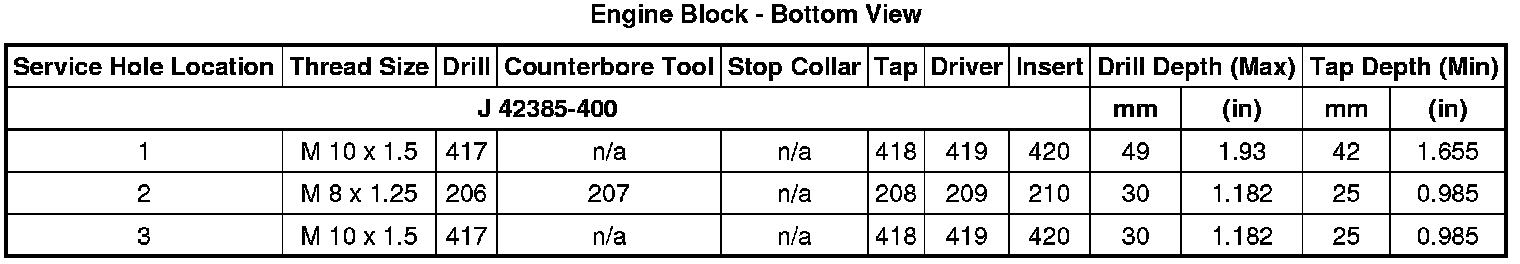

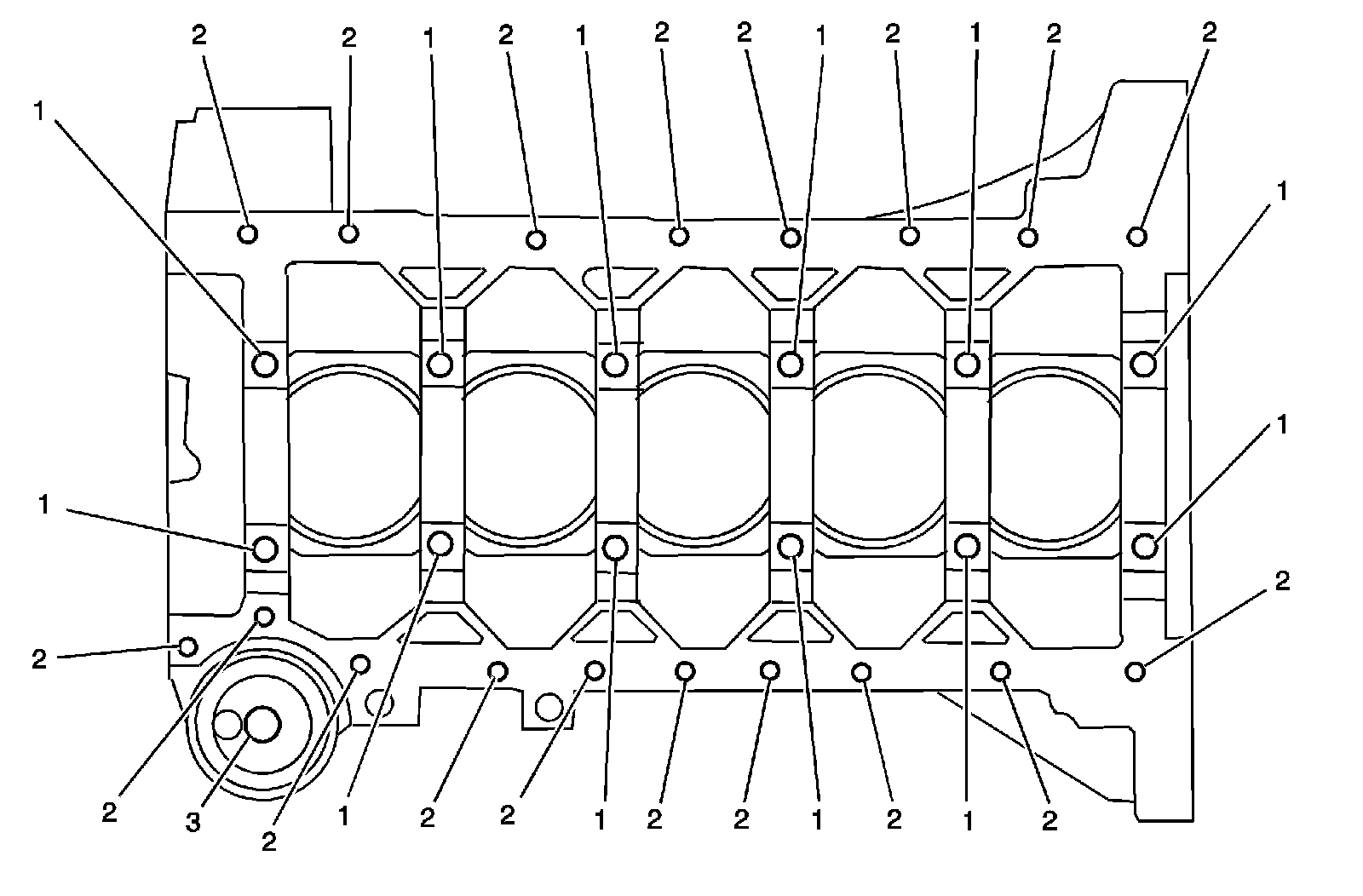

Engine Block - Bottom View

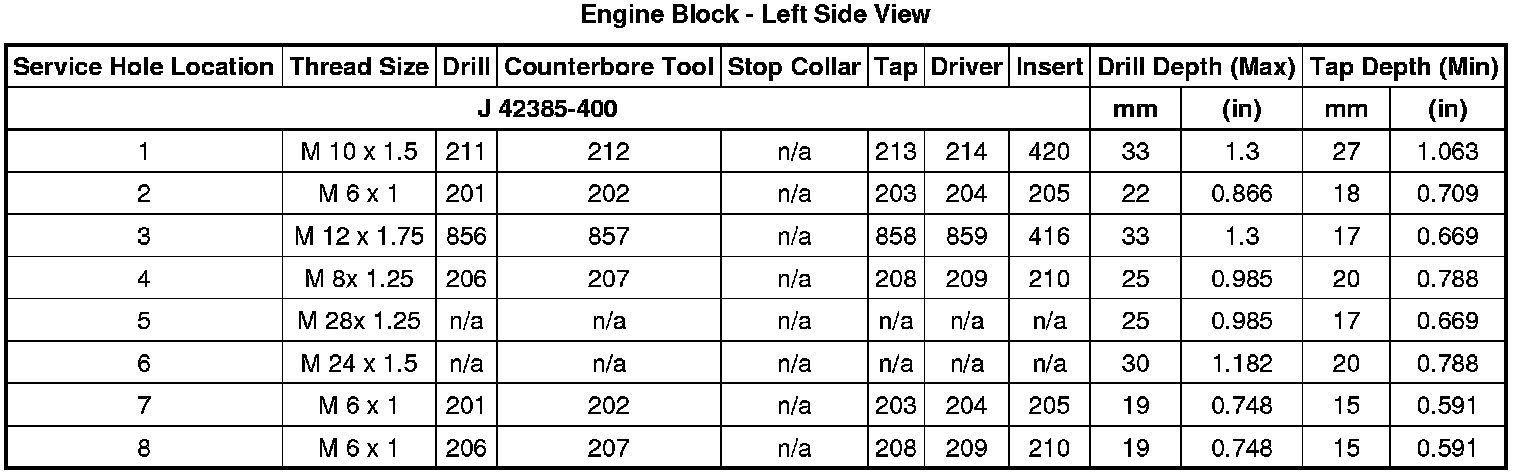

Engine Block - Left Side View

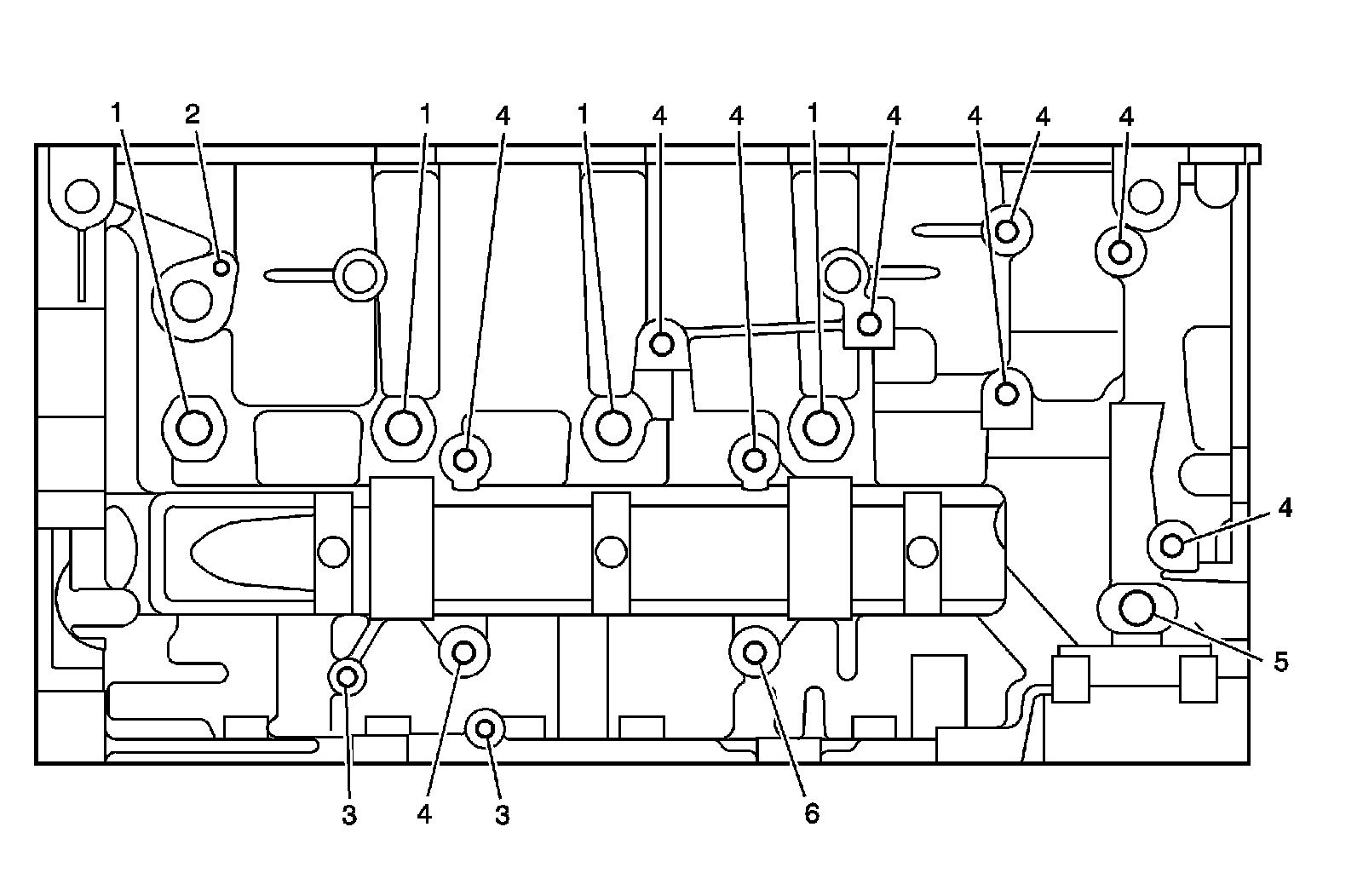

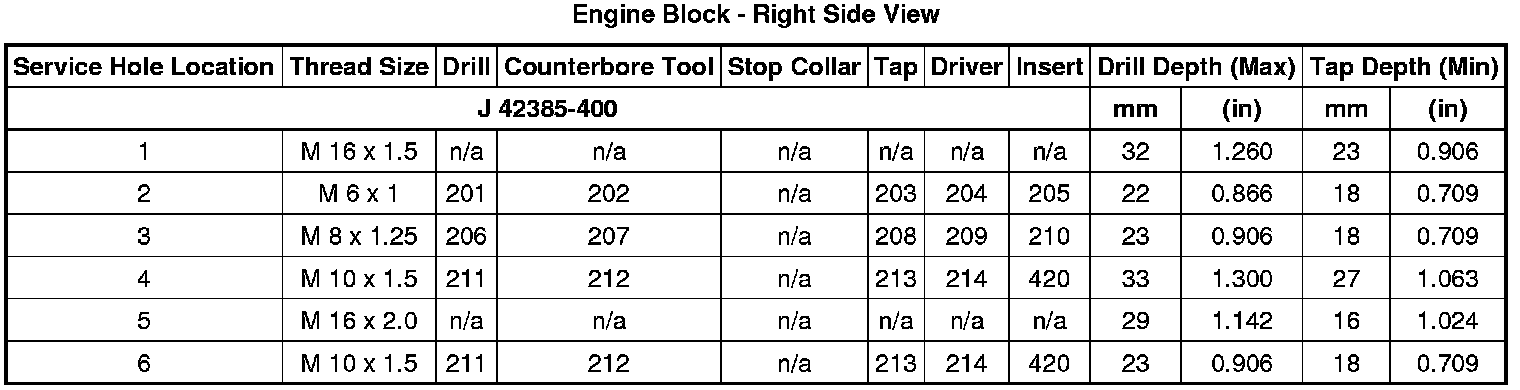

Engine Block - Right Side View

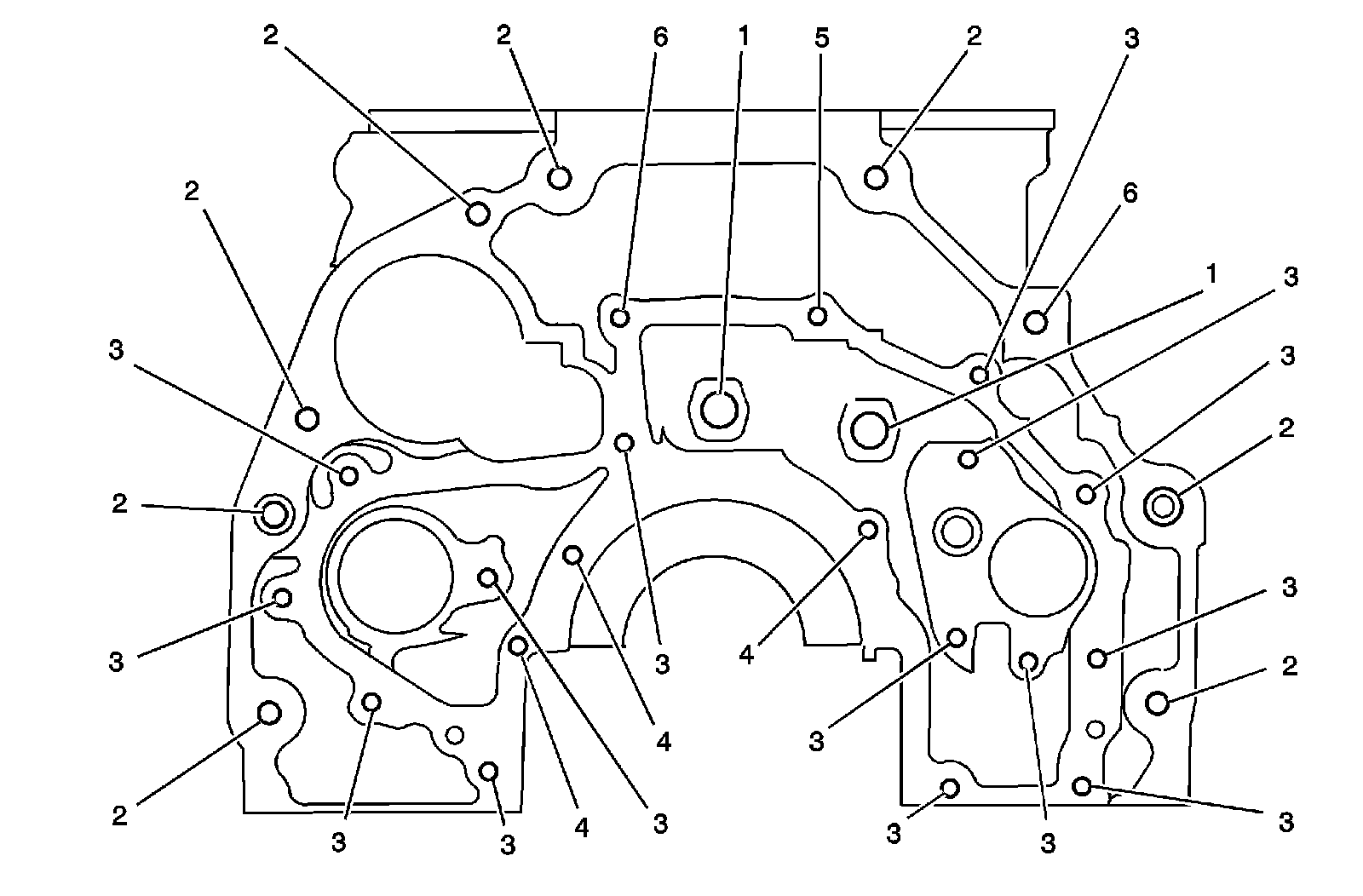

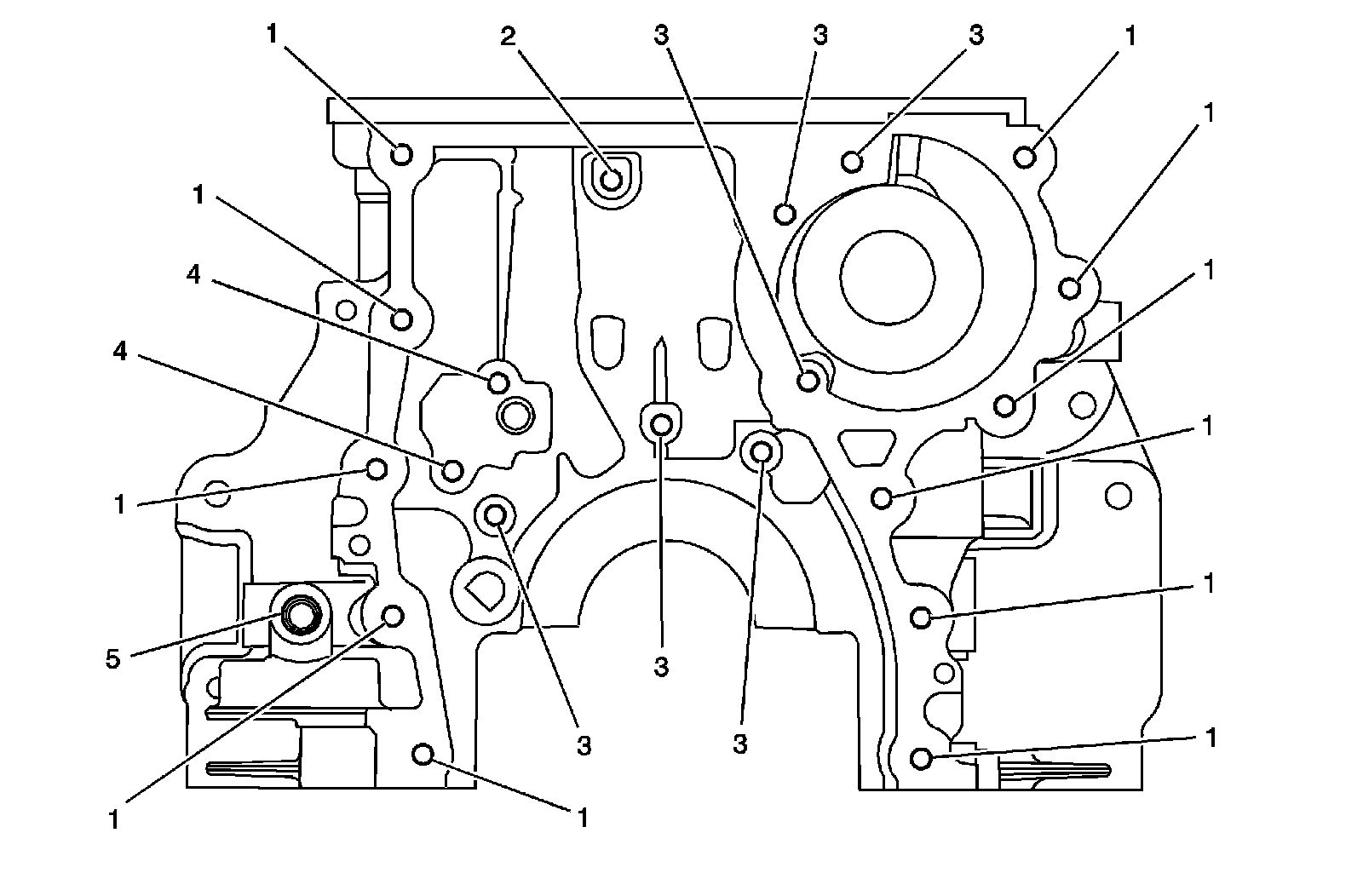

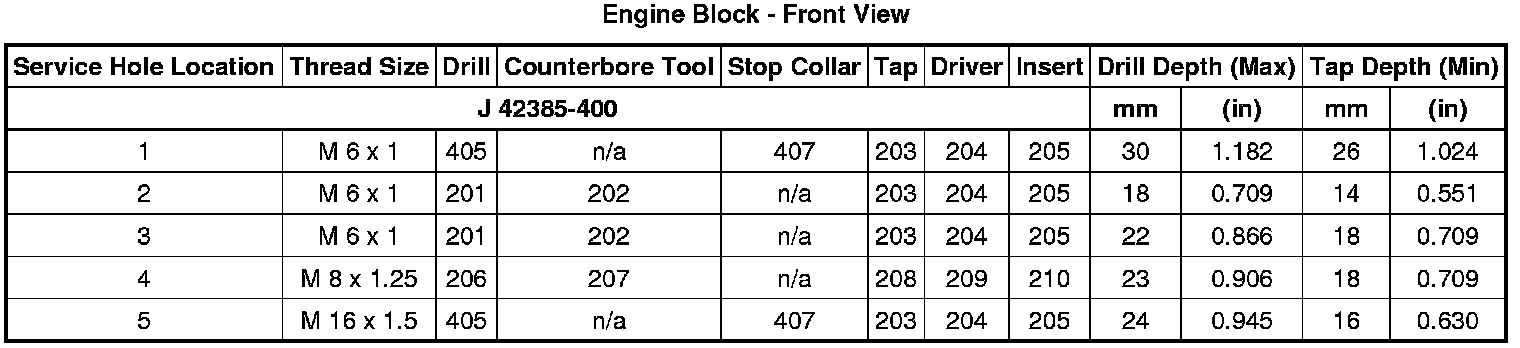

Engine Block - Front View

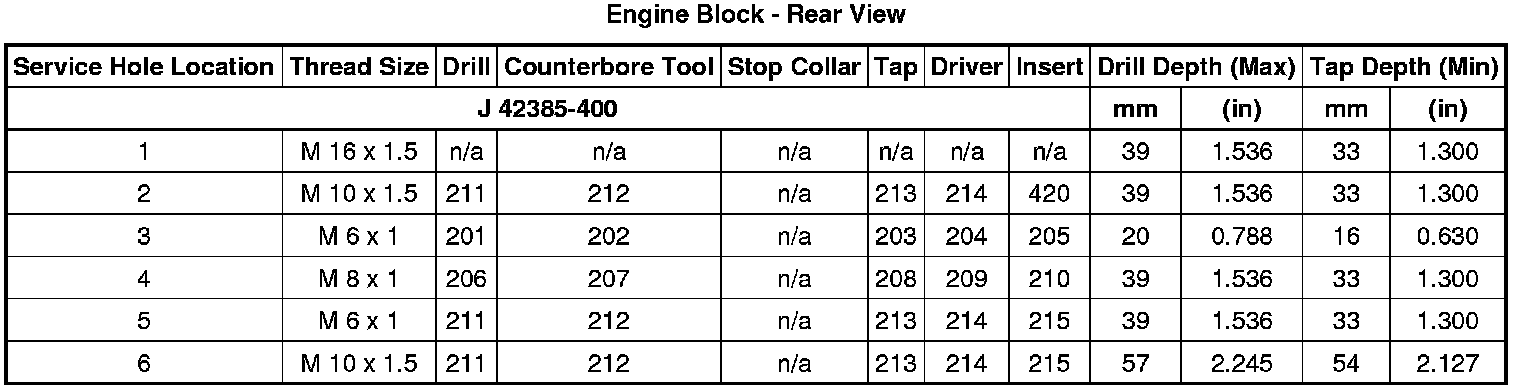

Engine Block - Rear View

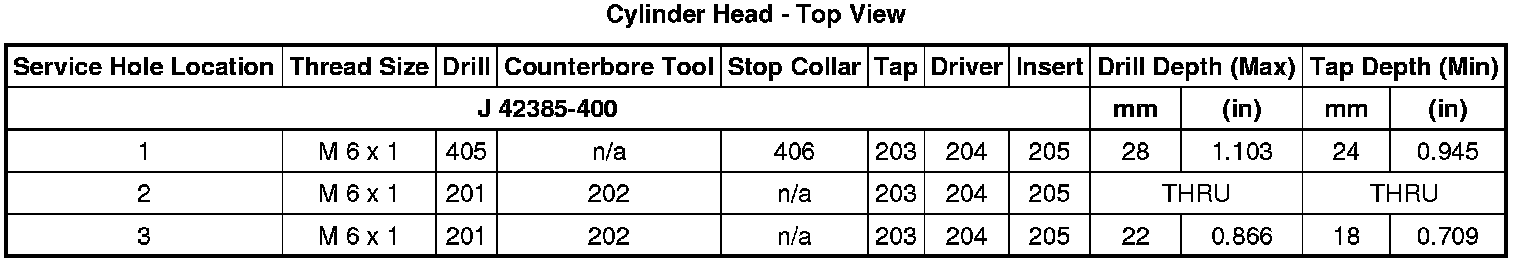

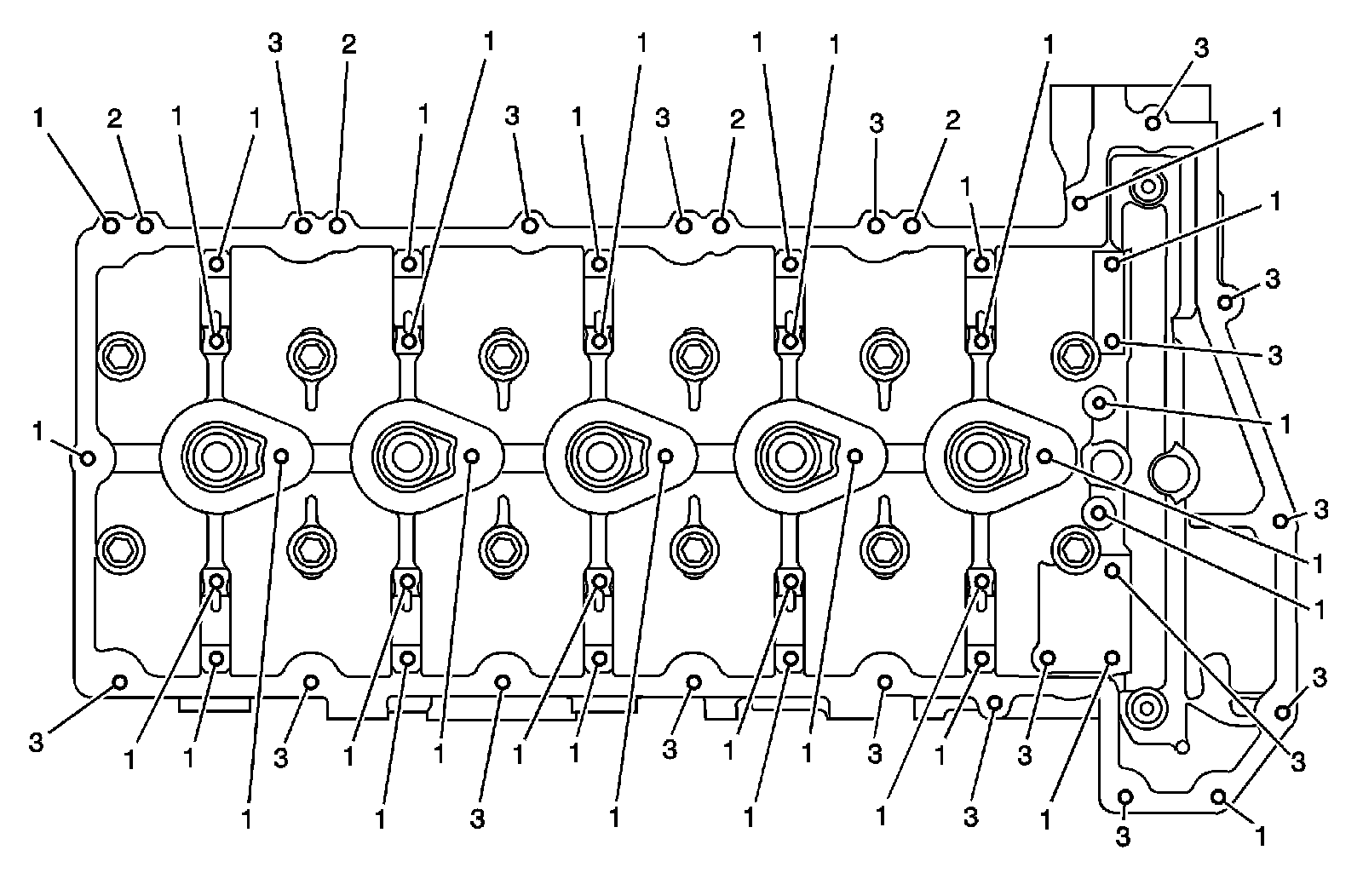

Cylinder Head - Top View

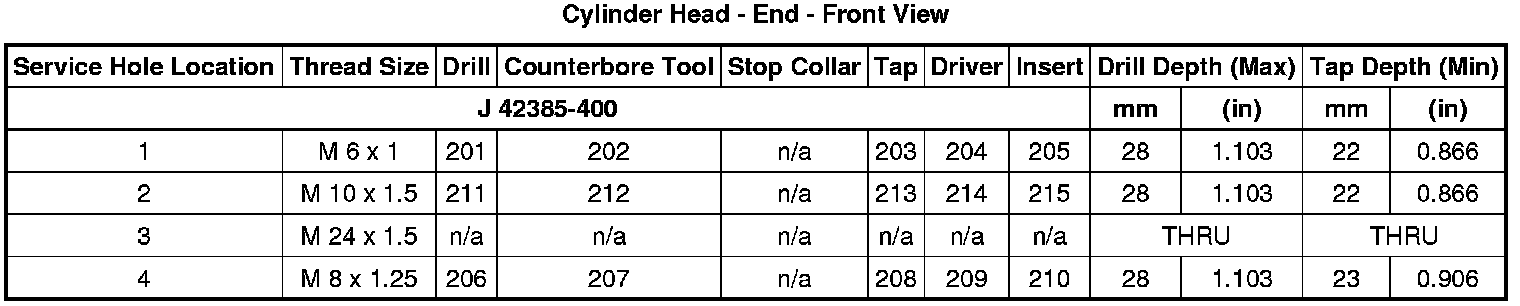

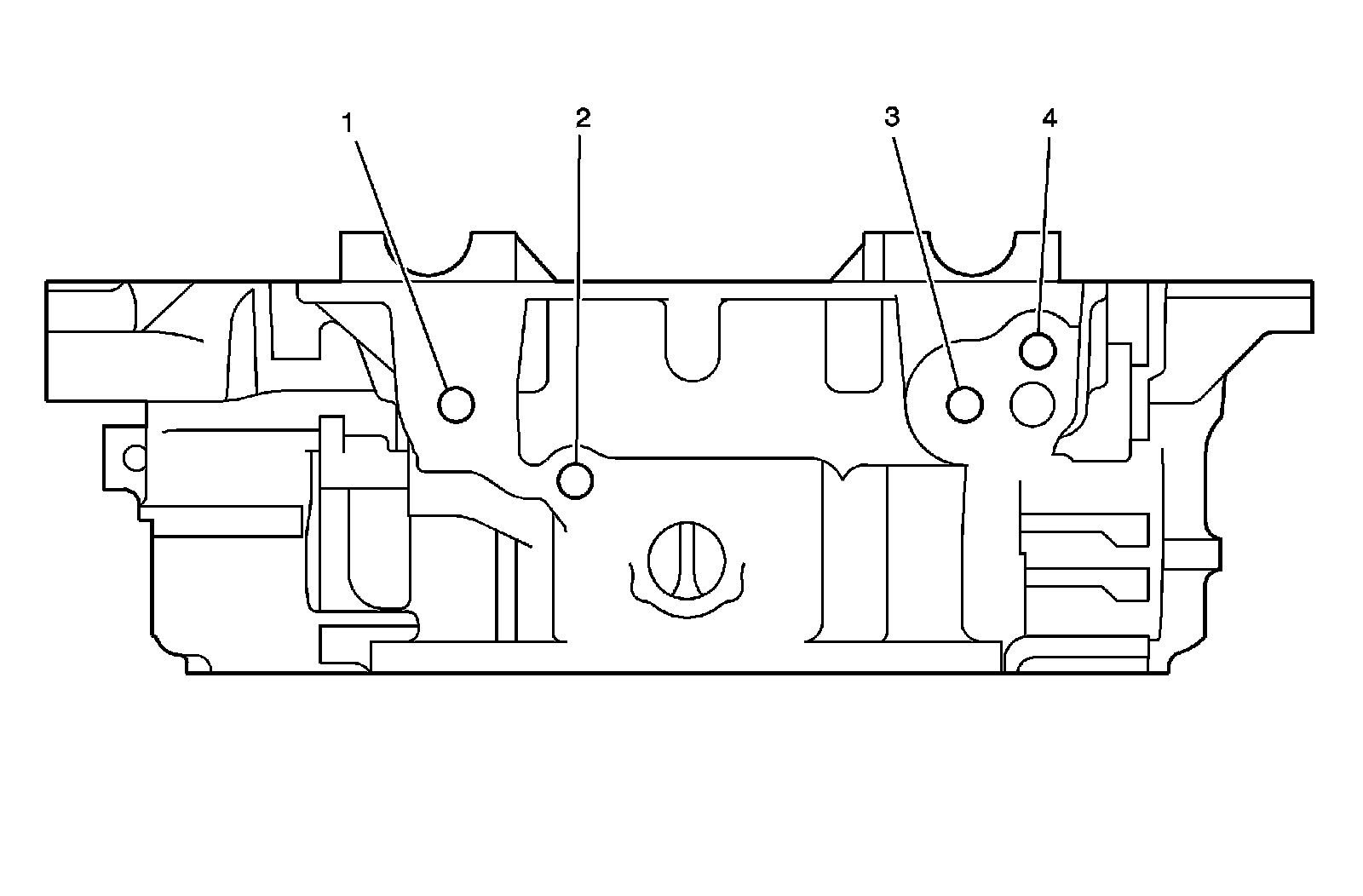

Cylinder Head - End - Front View

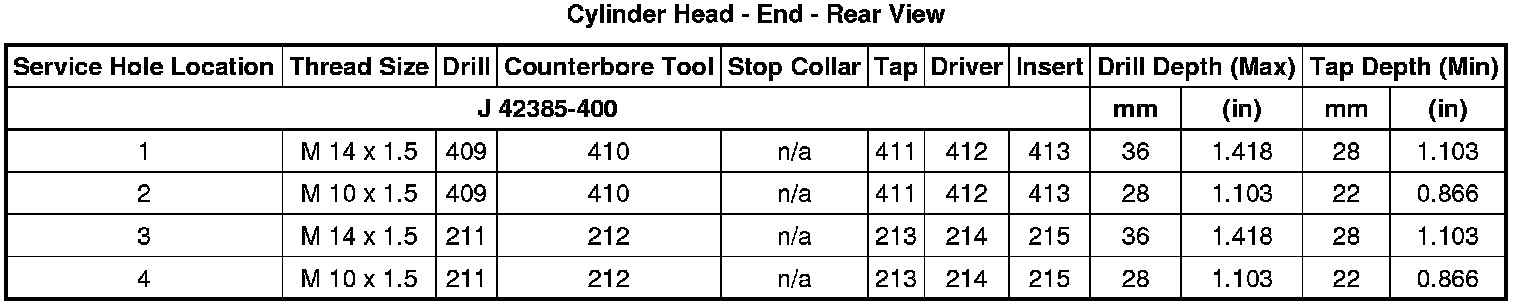

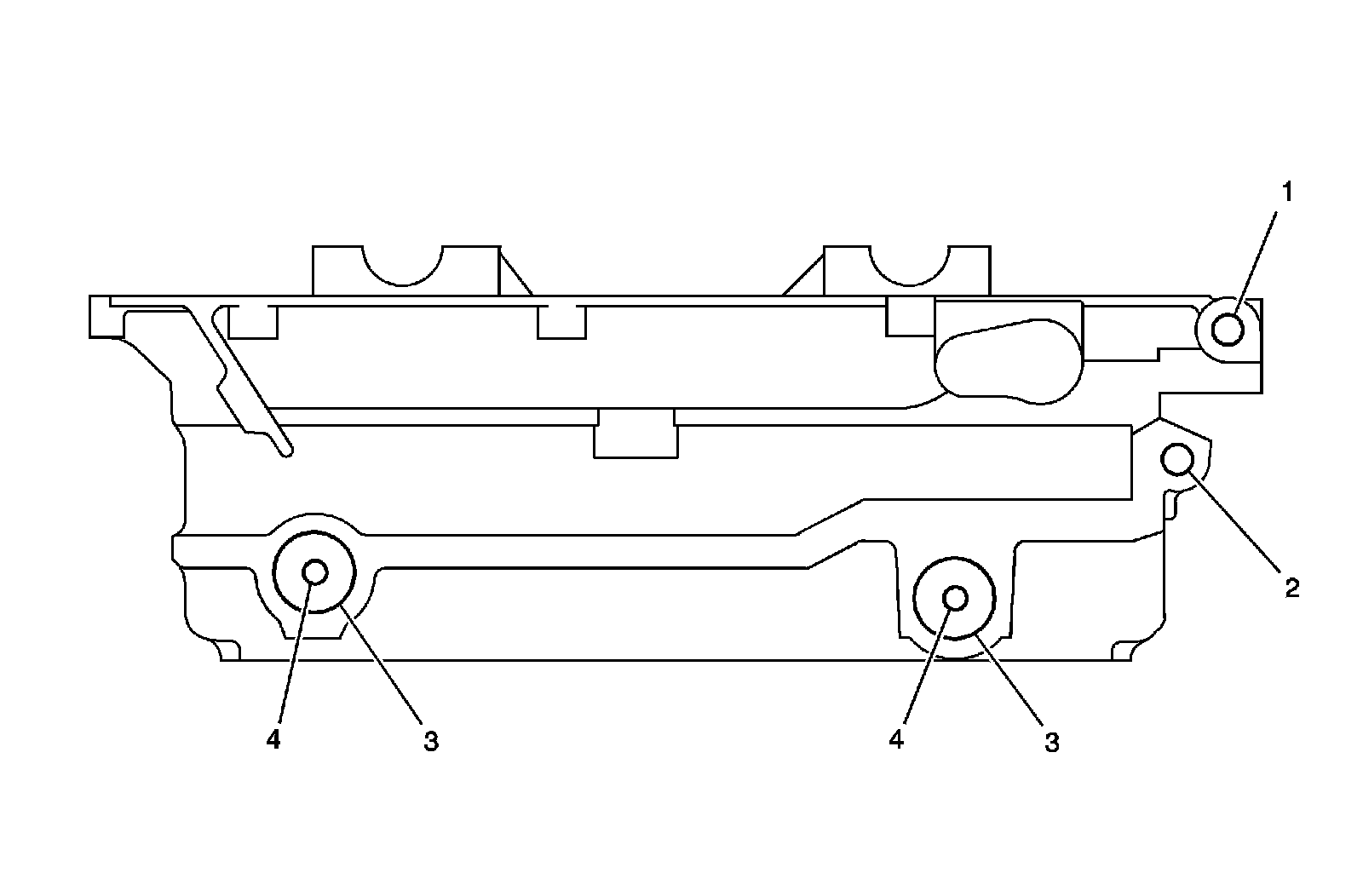

Cylinder Head - End - Rear View

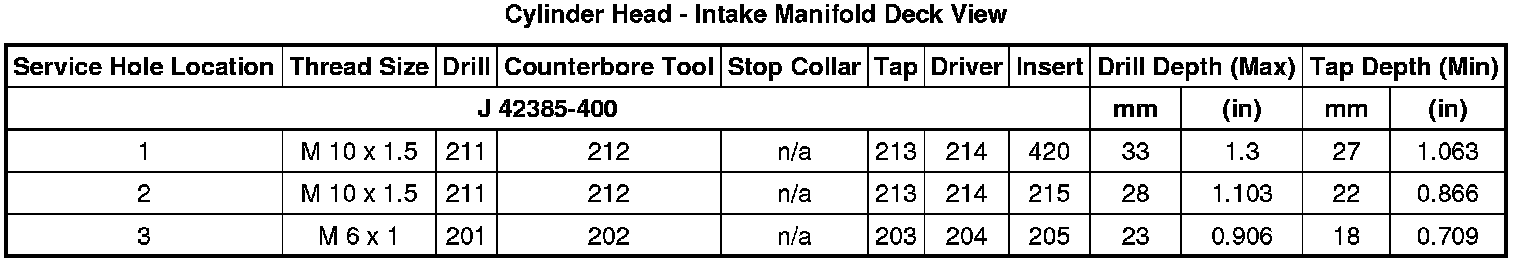

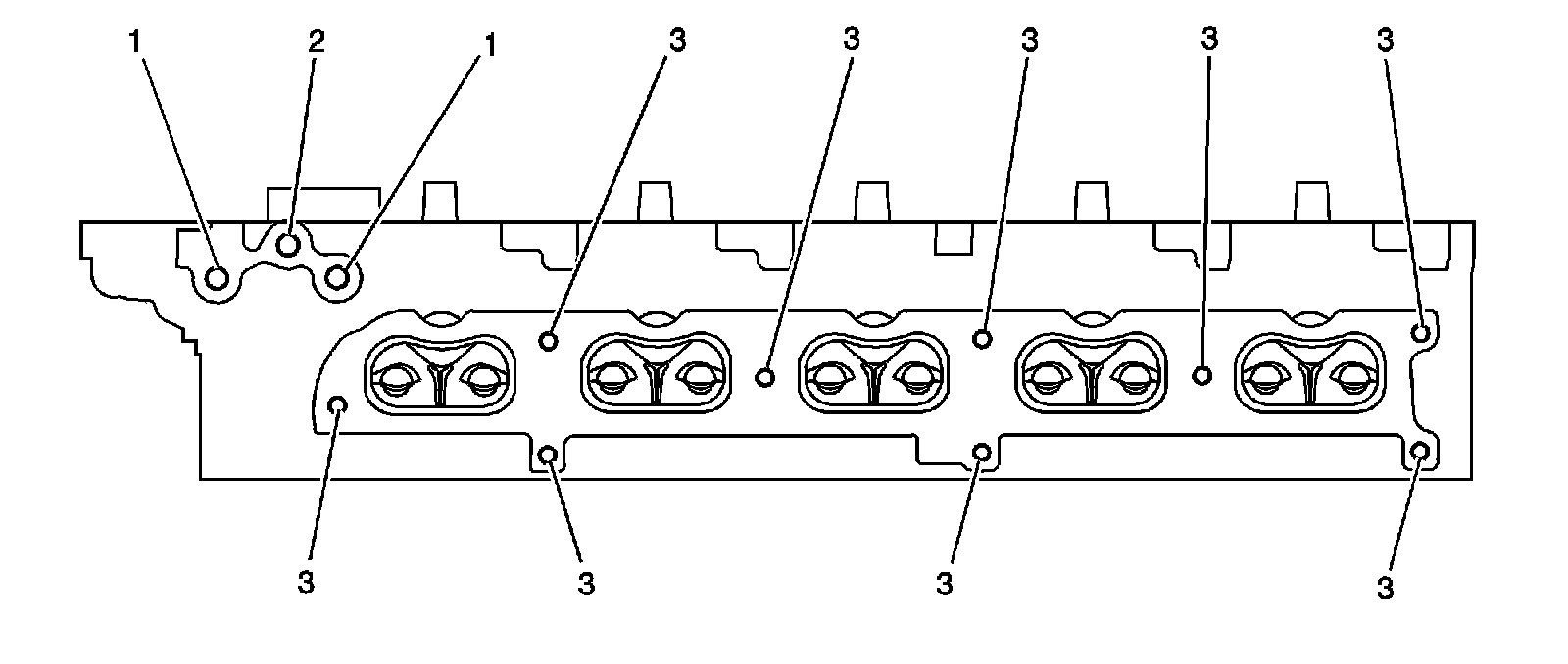

Cylinder Head - Intake Manifold Deck View

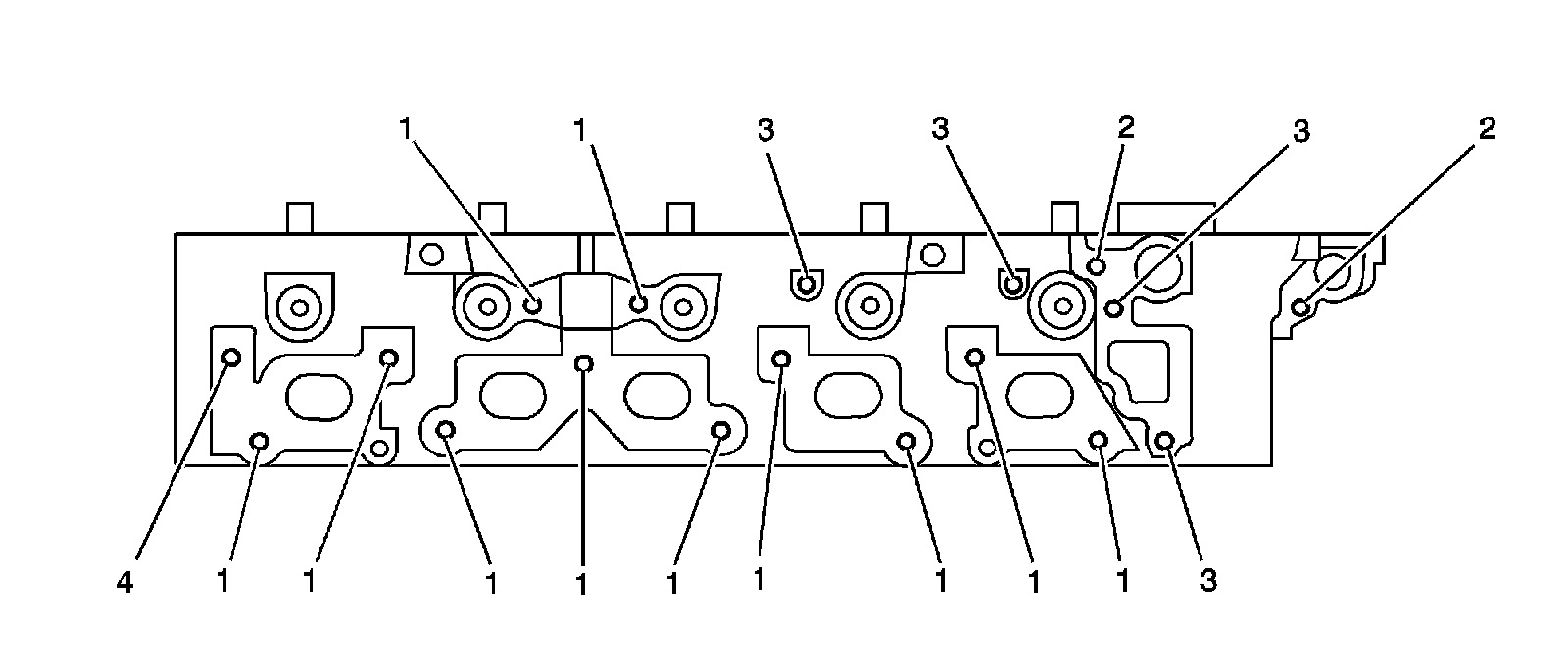

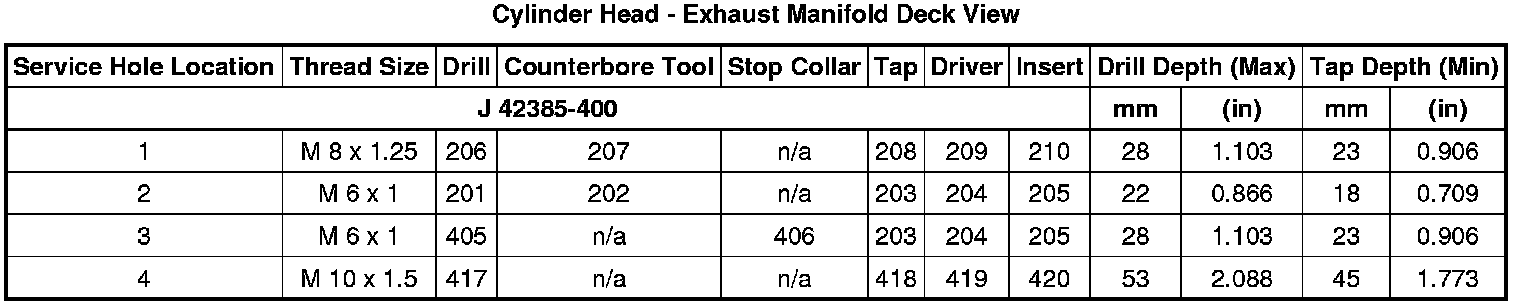

Cylinder Head - Exhaust Manifold Deck View

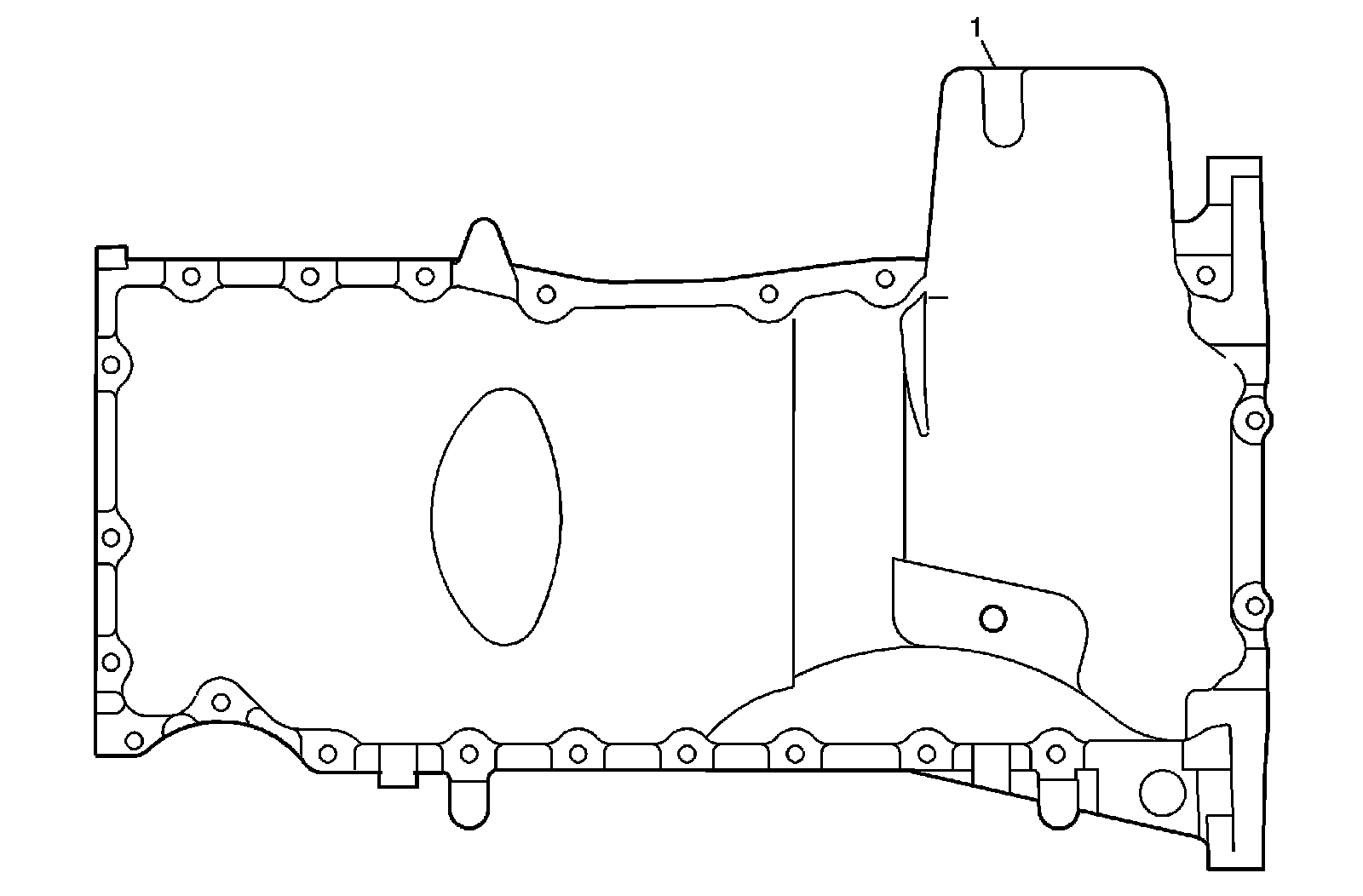

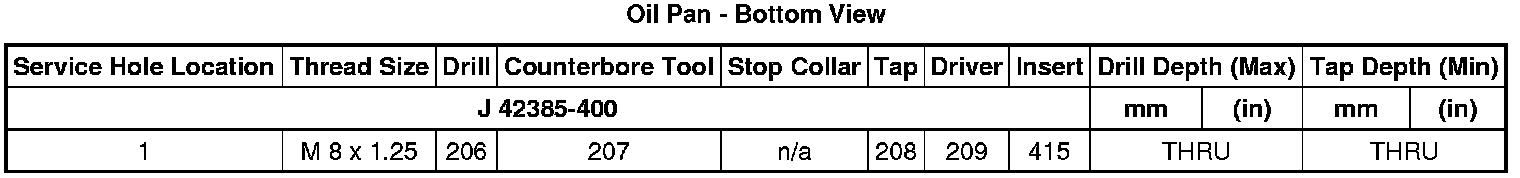

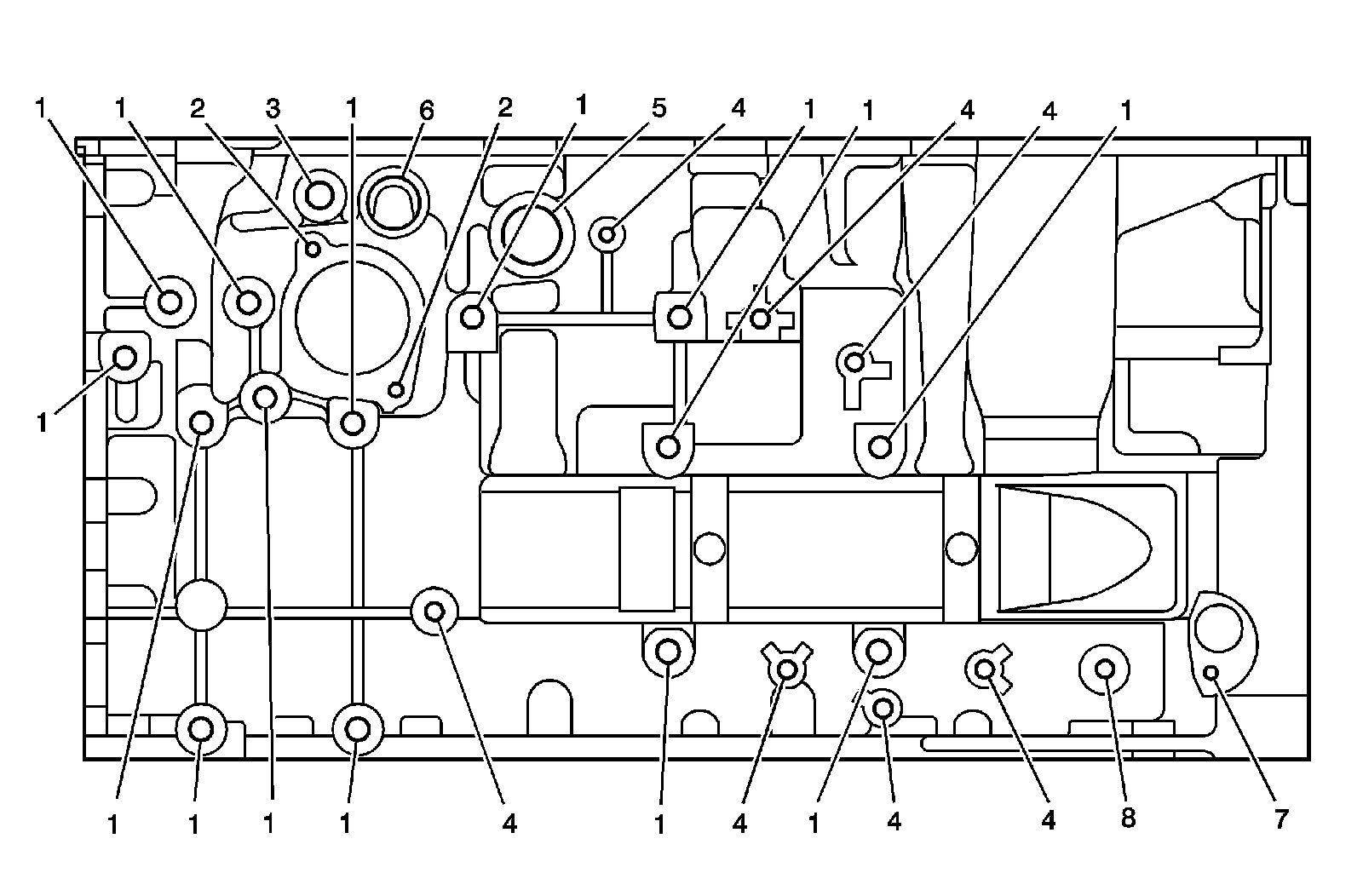

Oil Pan - Bottom View

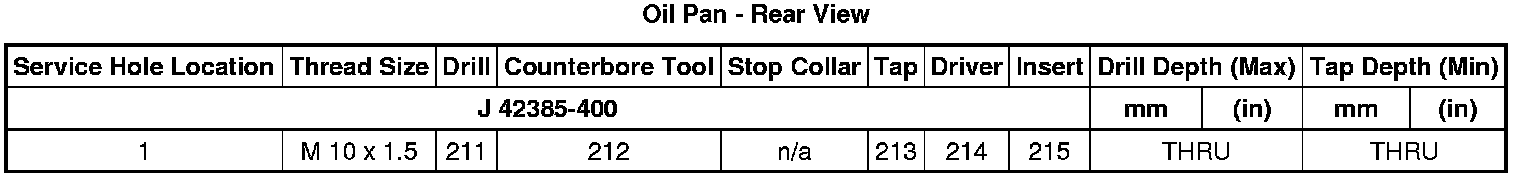

Oil Pan - Rear View

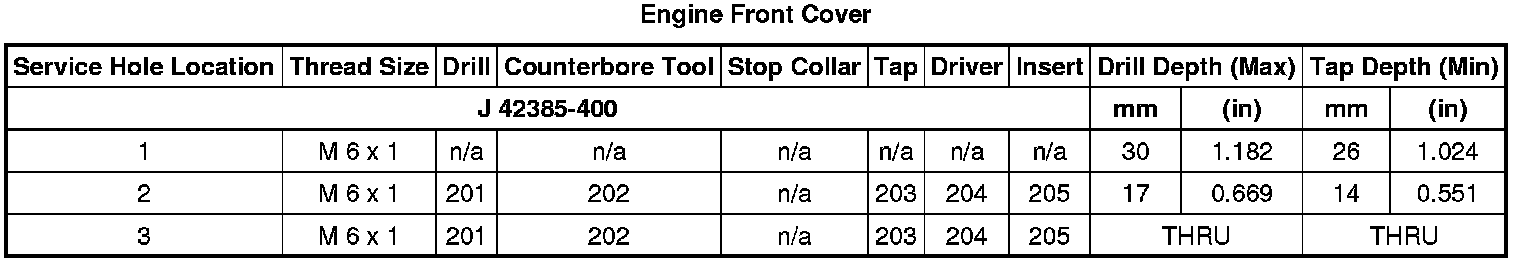

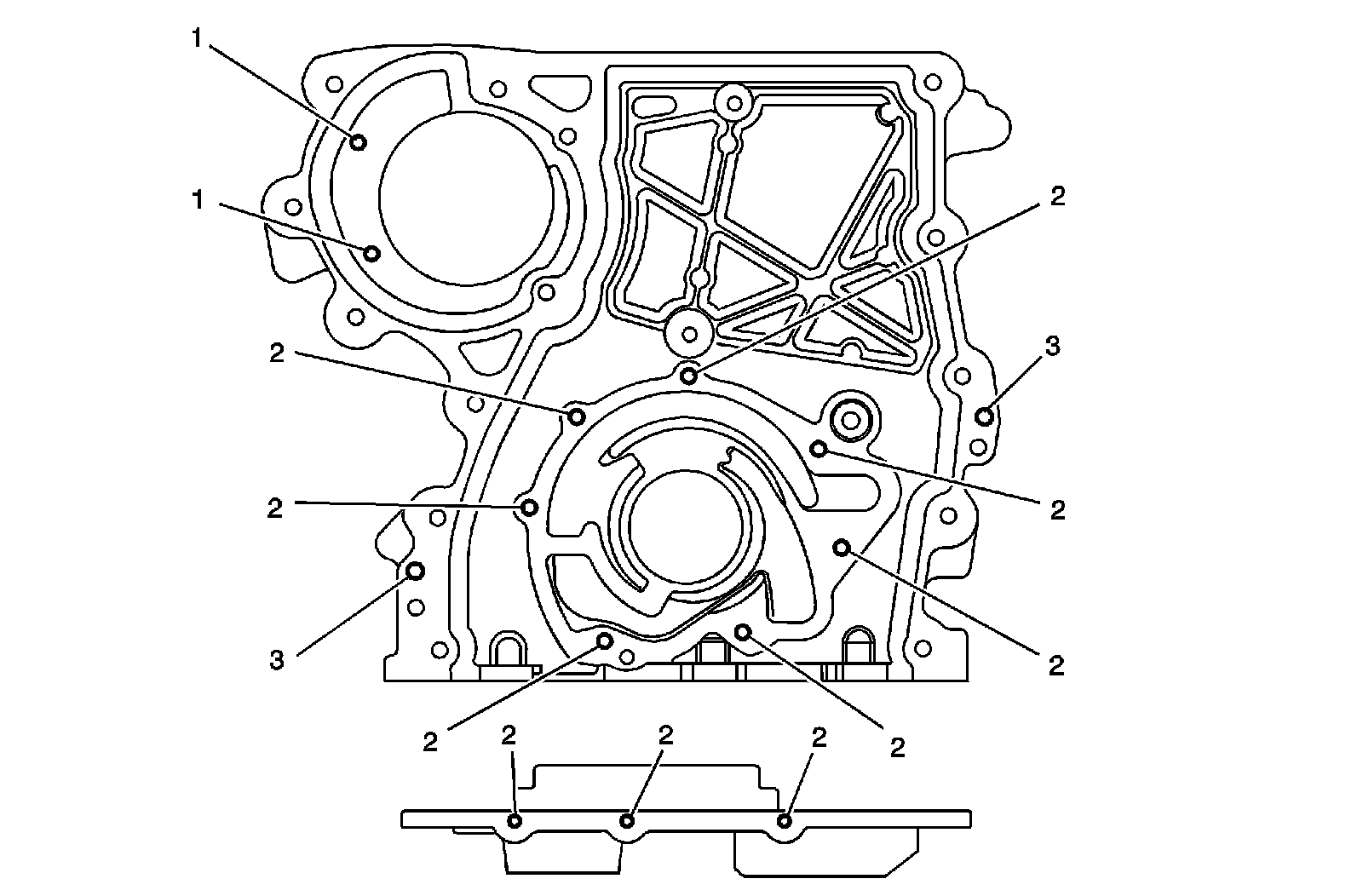

Engine Front Cover

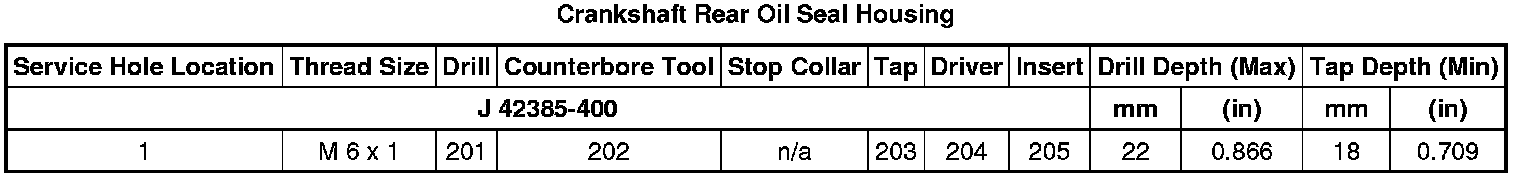

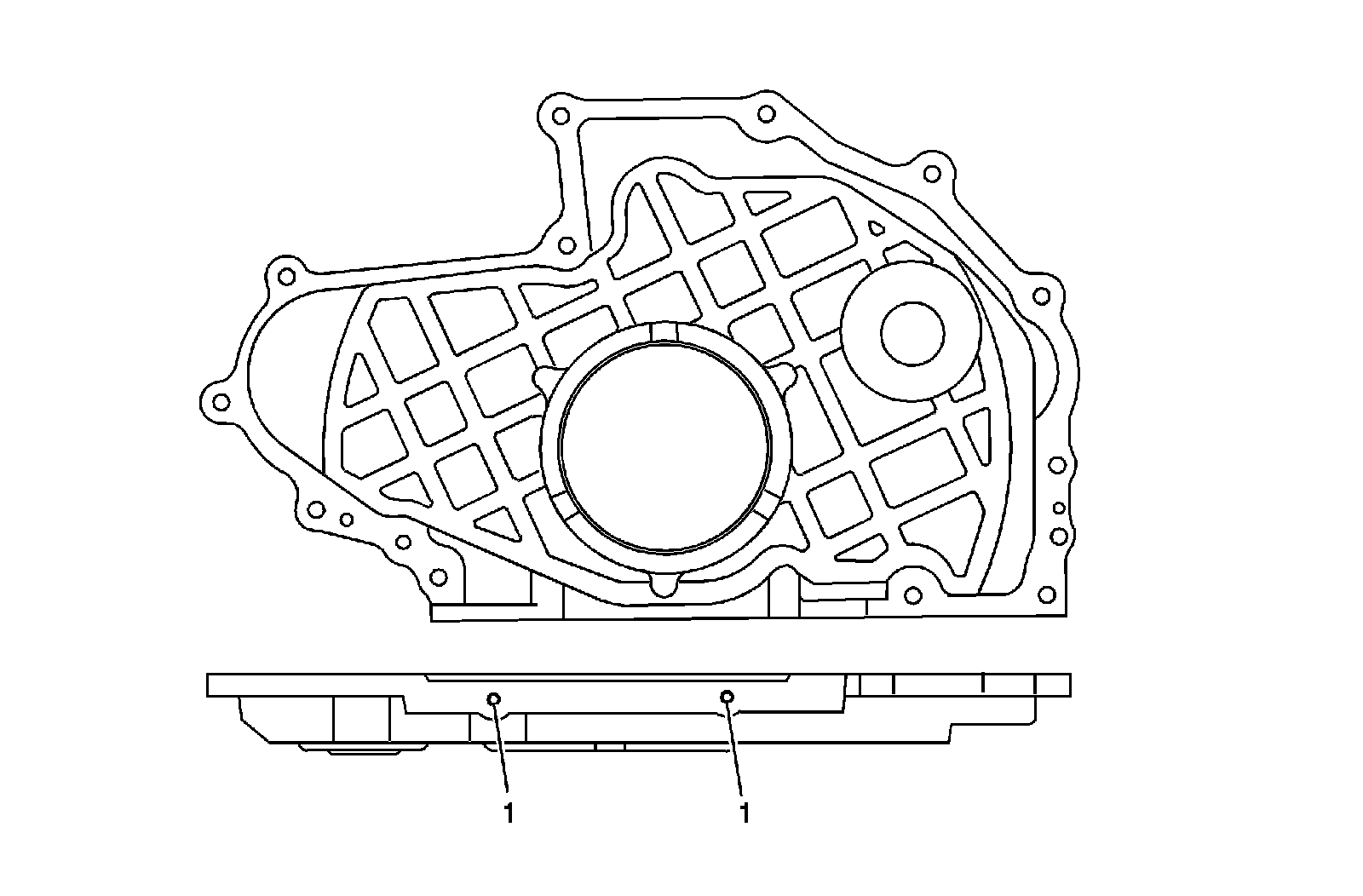

Crankshaft Rear Oil Seal Housing
Factory Service Tools
