2009 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Transfer Case Shift Control Module Replacement

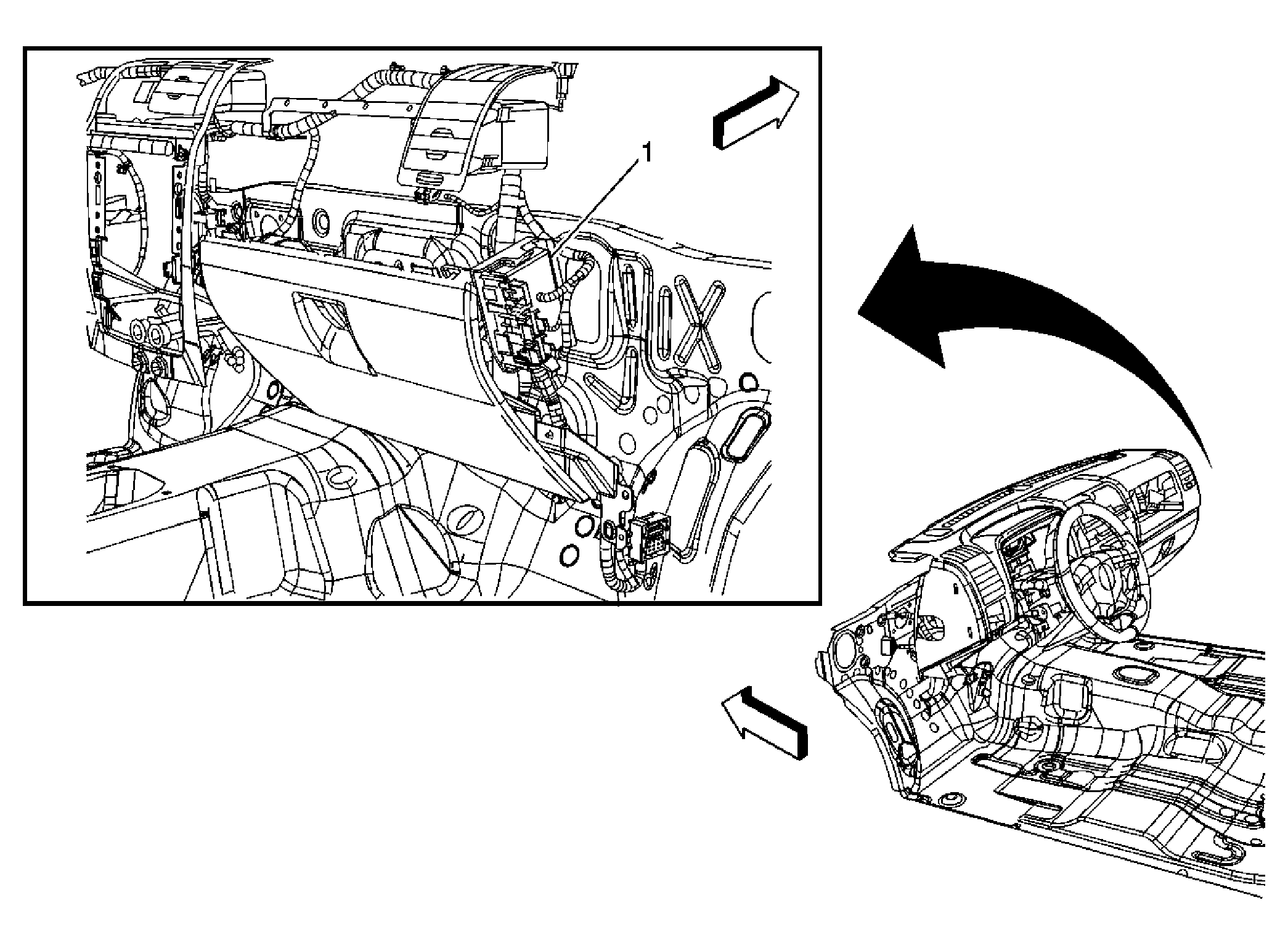

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel (I/P) closeout panel. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side (Right Hand Drive) or Instrument Panel Outer Trim Cover Replacement - Right Side (Left Hand Drive) . |
|
| 1 | Transfer Case Control Module Procedure
|
