2009 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Raise and support the vehicle only high enough to access the knock sensor through the wheelhouse. Refer to Lifting and Jacking the Vehicle .
- Remove the left wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

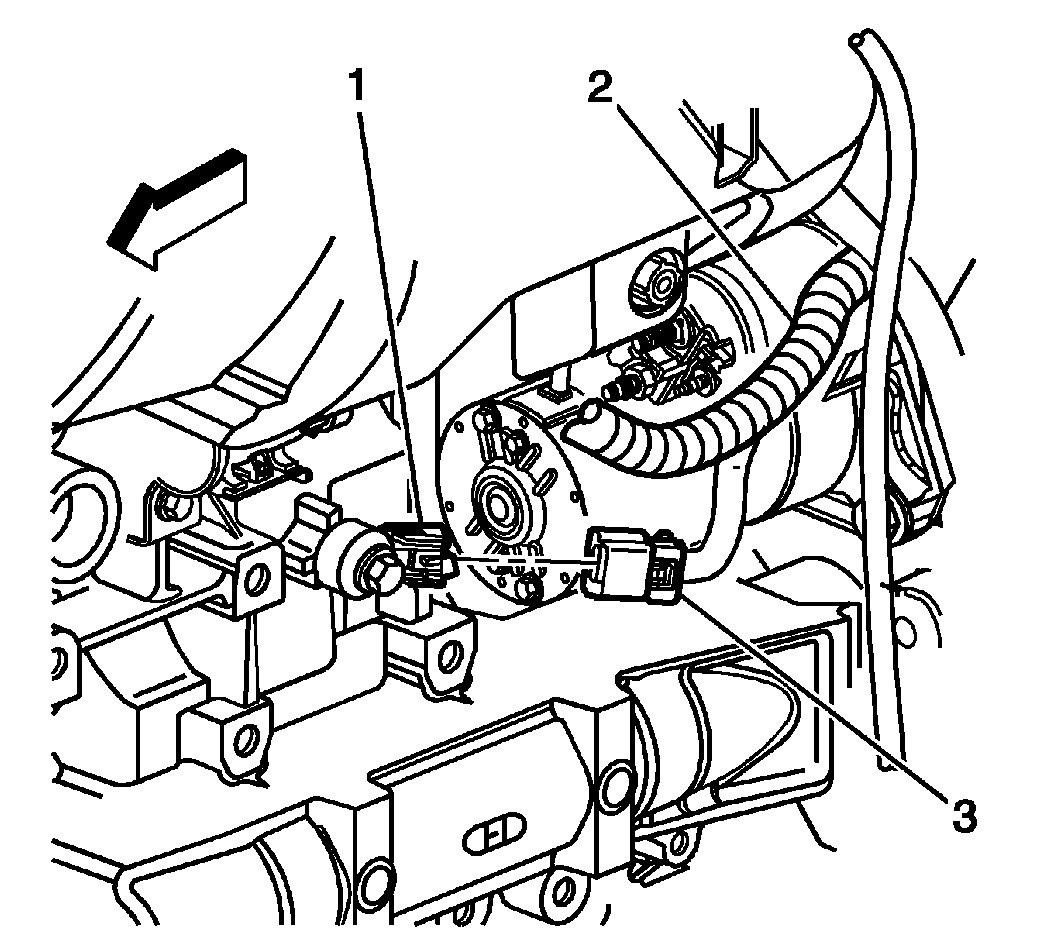

- Disconnect the engine wiring harness electrical connector (3) from the knock sensor (1).
- Remove the knock sensor bolt.
- Remove the knock sensor (1).
