2009 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Right Hand Drive) or Driver Knee Bolster Bracket Replacement (Left Hand Drive) .

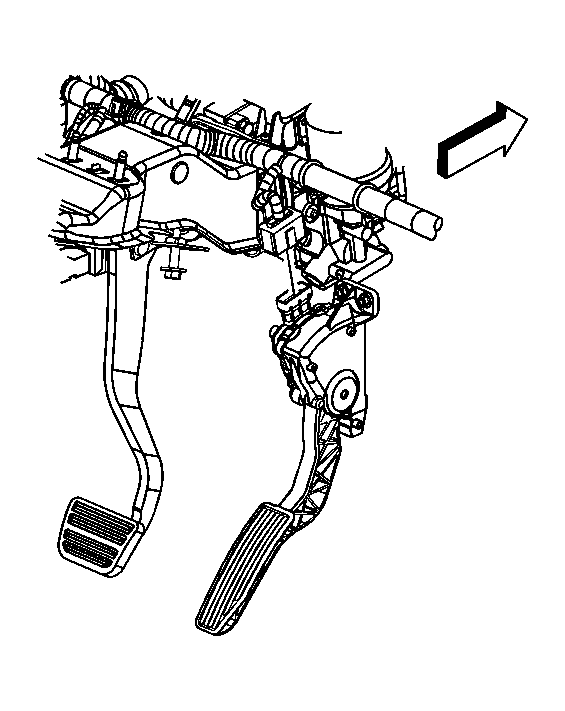

- Disconnect the accelerator pedal position (APP) sensor electrical connector.

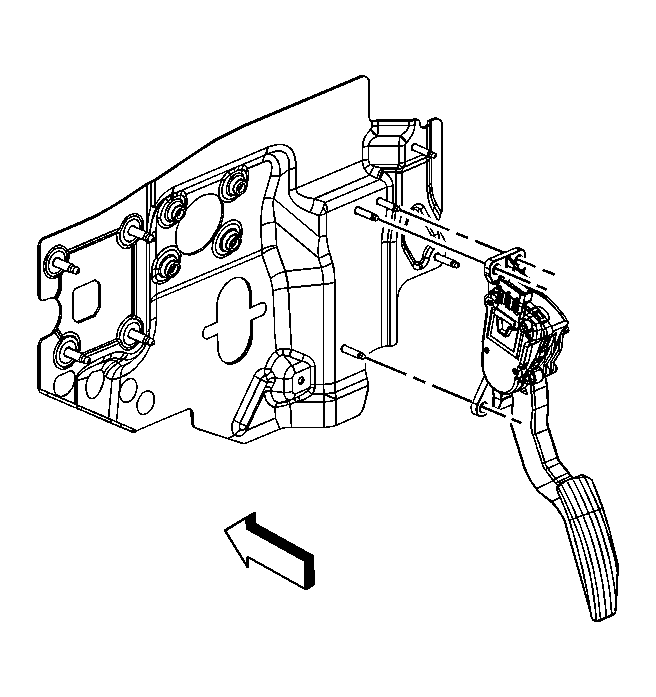

- Remove the accelerator pedal/APP sensor nuts.
- Remove the accelerator pedal/APP sensor from the vehicle.
