2009 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Theft Deterrent Module Replacement

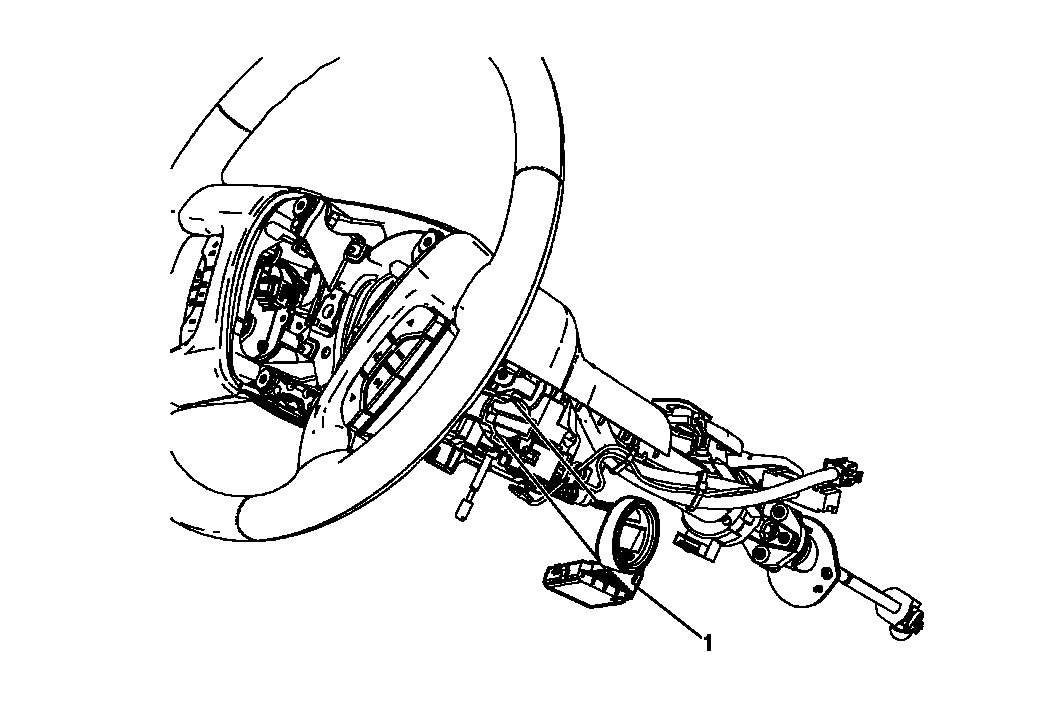

Fig 1: Theft Deterrent Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the steering column shroud. Refer to Steering Column Shroud Replacement
Remove the steering wheel inflatable restraint module. Refer to Steering Wheel Inflatable Restraint Module Replacement
Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and set up procedures.
