2009 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

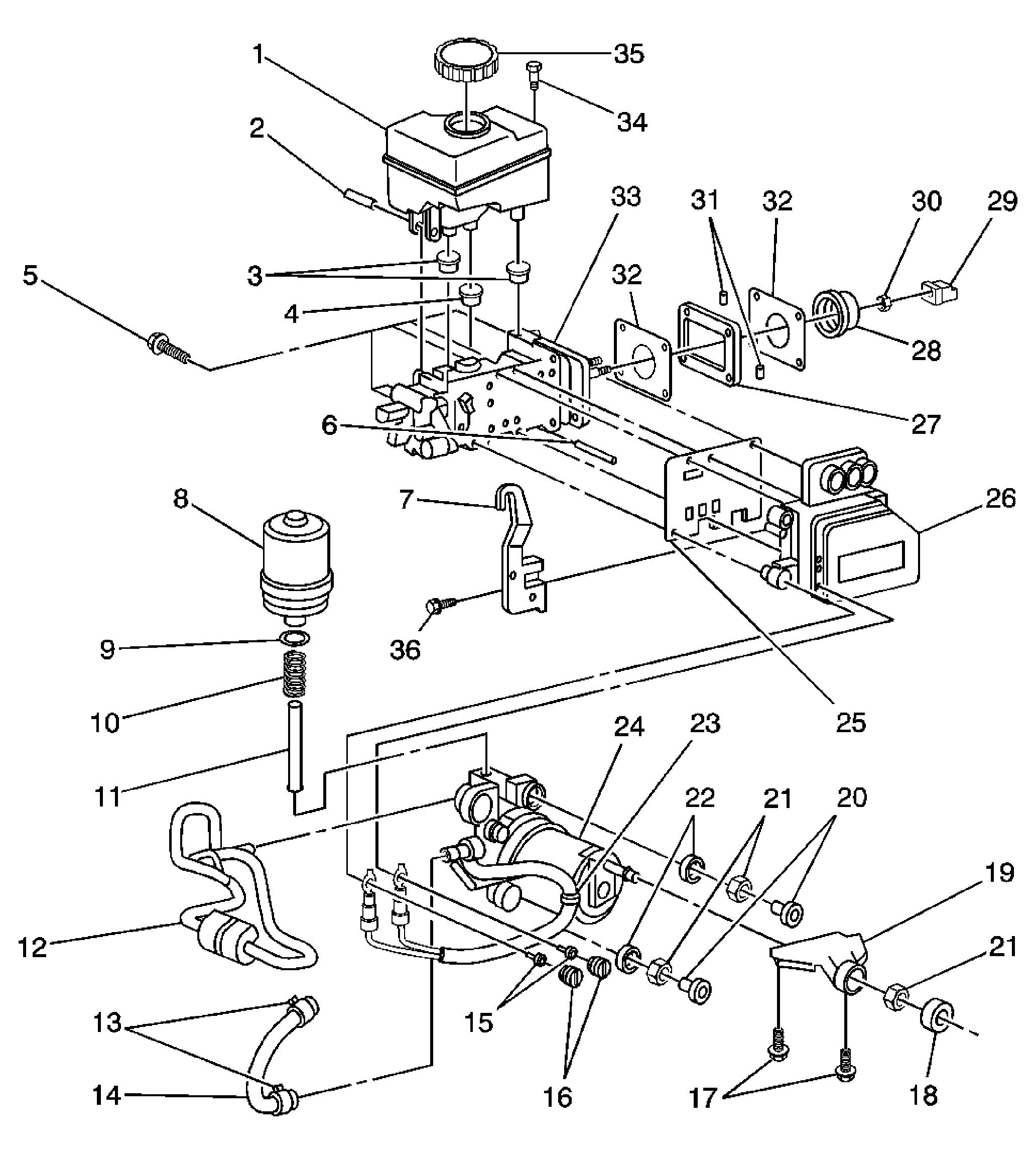

Disassembled Views
| Callout | Component Name |
|---|---|
| 1 | Brake Master Cylinder Reservoir |
| 2 | Reservoir Pin |
| 3 | Brake Master Cylinder Grommet |
| 4 | Brake Master Cylinder Grommet |
| 5 | Electronic Brake and Traction Control Module Bolt |
| 6 | Electronic Brake and Traction Control Module Locator |
| 7 | Brake Fluid Level Indicator Wiring Harness Bracket |
| 8 | Power Brake Booster Pump Fluid Accumulator |
| 9 | Power Brake Booster Pump Fluid Accumulator (O-Ring) Seal |
| 10 | Power Brake Booster Pump Fluid Accumulator Fitting Spring |
| 11 | Power Brake Booster Pump Fluid Accumulator Fitting |
| 12 | Power Brake Booster Outlet Front Pipe |
| 13 | Power Brake Booster Pump Inlet Hose Clamp |
| 14 | Power Brake Booster Inlet Hose |
| 15 | Power Brake Booster Pump Harness Strap Bolt |
| 16 | Electronic Brake Control Wiring Plug |
| 17 | Power Brake Boost Pump Bracket ASM Bolt |
| 18 | Power Brake Booster Pump Damper Retainer |
| 19 | Power Brake Boost Pump Bracket |
| 20 | Power Brake Booster Pump Locator Pin |
| 21 | Power Brake Booster Pump Damper |
| 22 | Power Brake Booster Pump Damper Retainer |
| 23 | Power Brake Booster Pump Harness Strap |
| 24 | Power Brake Booster Pump ASM Motor |
| 25 | Electronic Brake and Traction Control Module ASM Gasket |
| 26 | Electronic Brake and Traction Control (w/Brake Pressure Modulator Valve) ASM Module |
| 27 | Brake Master Cylinder Spacer |
| 28 | Brake Pedal Push Rod Boot |
| 29 | Brake Pedal Push Rod Clevis |
| 30 | Brake Pedal Push Rod Clevis Nut |
| 31 | Brake Master Cylinder Spacer |
| 32 | Brake Master Cylinder Spacer Gasket |
| 33 | Brake Master Cylinder |
| 34 | Brake Master Cylinder Reservoir Bolt |
| 35 | Brake Master Cylinder Reservoir ASM Cap |
| 36 | Brake Fluid Level Indicator Wiring Harness Bracket Bolt |
