Installation Procedure
- Install a NEW throttle body gasket (509).
- Install the throttle body (508).
- Install the throttle body bolts (538) and nuts (507).
Tighten: Tighten the bolts/nuts to 10 N.m (89 lb in).

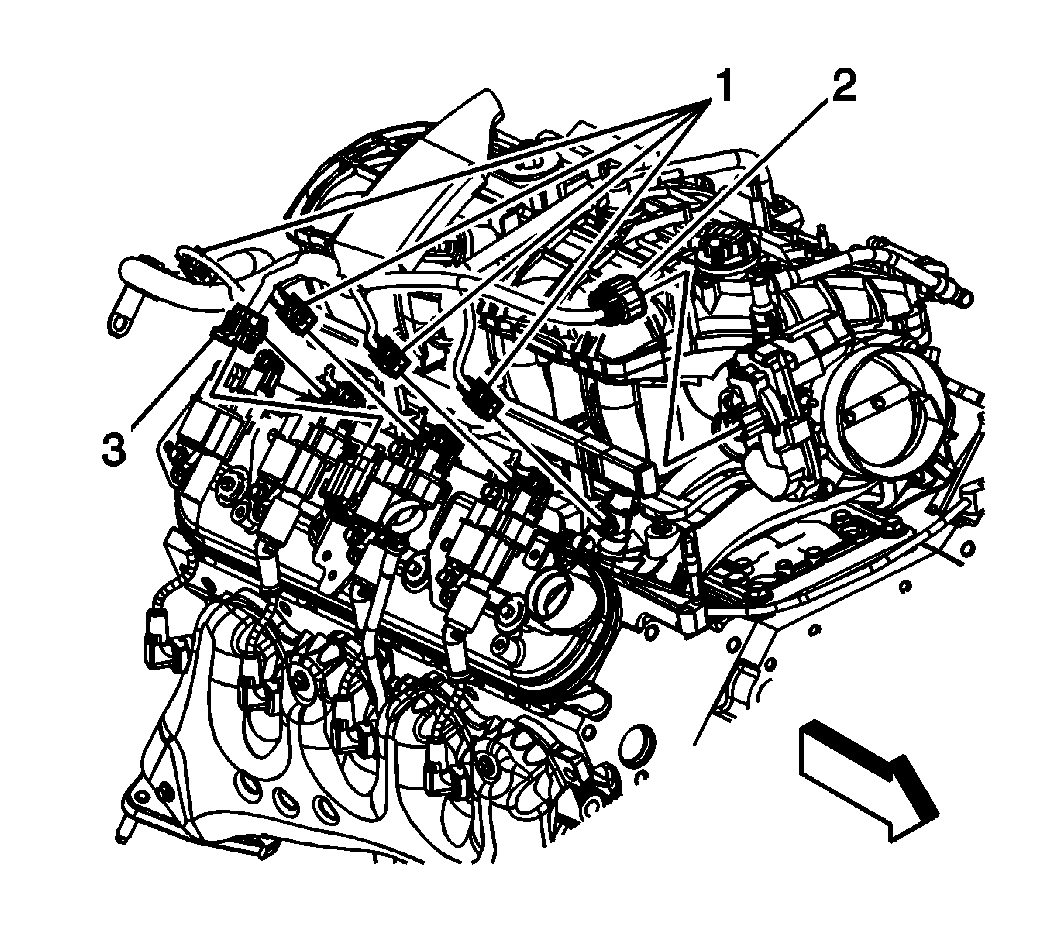

- Connect the engine wiring harness electrical connector (2) to the throttle body.
- Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
- Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
