2009 Hummer H3 AlphaFACTORY OEM SERVICE PROCEDURE

Removal Procedure

CAUTION: Use care when handling the coolant sensor. Damage to the coolant sensor will affect the operation of the fuel control system.

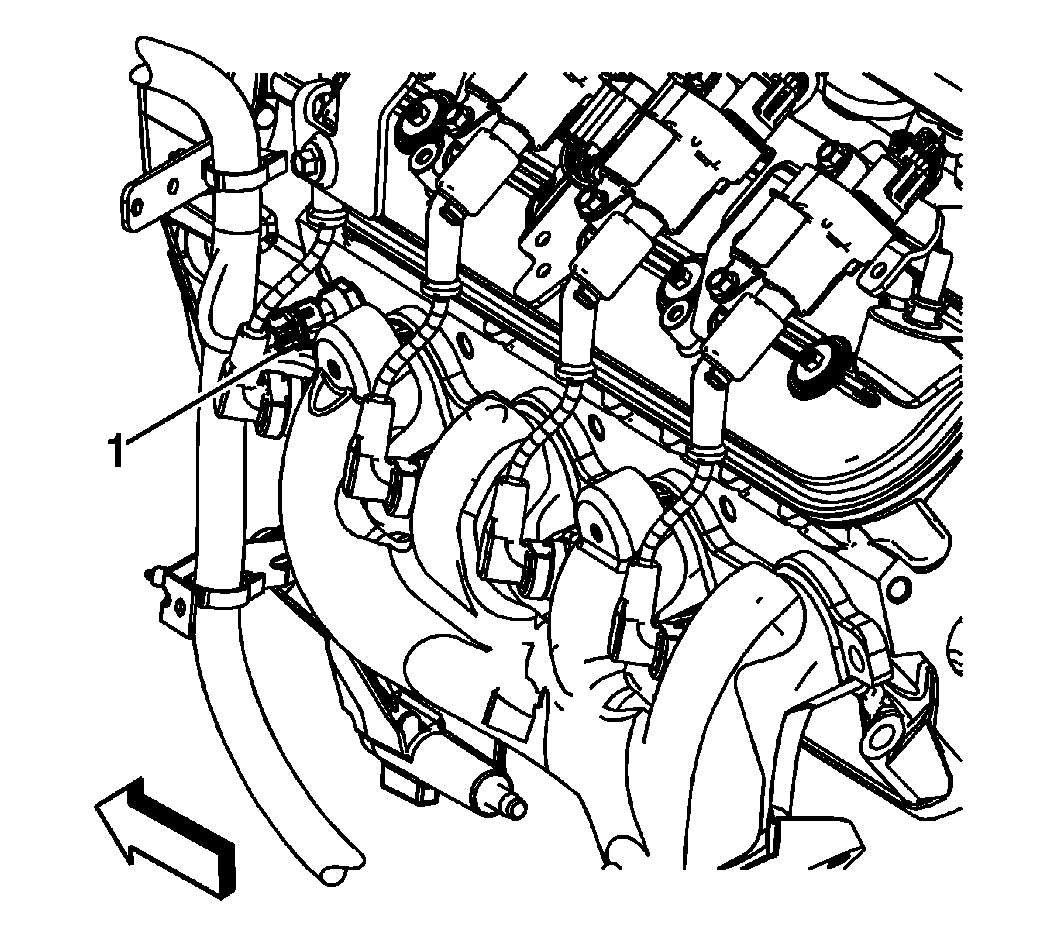

Fig 1: Engine Coolant Temperature Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Drain the cooling system below the level of the ECT sensor. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac-N-Fill) .
Disconnect the engine wiring harness electrical connector (1) from the engine coolant temperature (ECT) sensor.

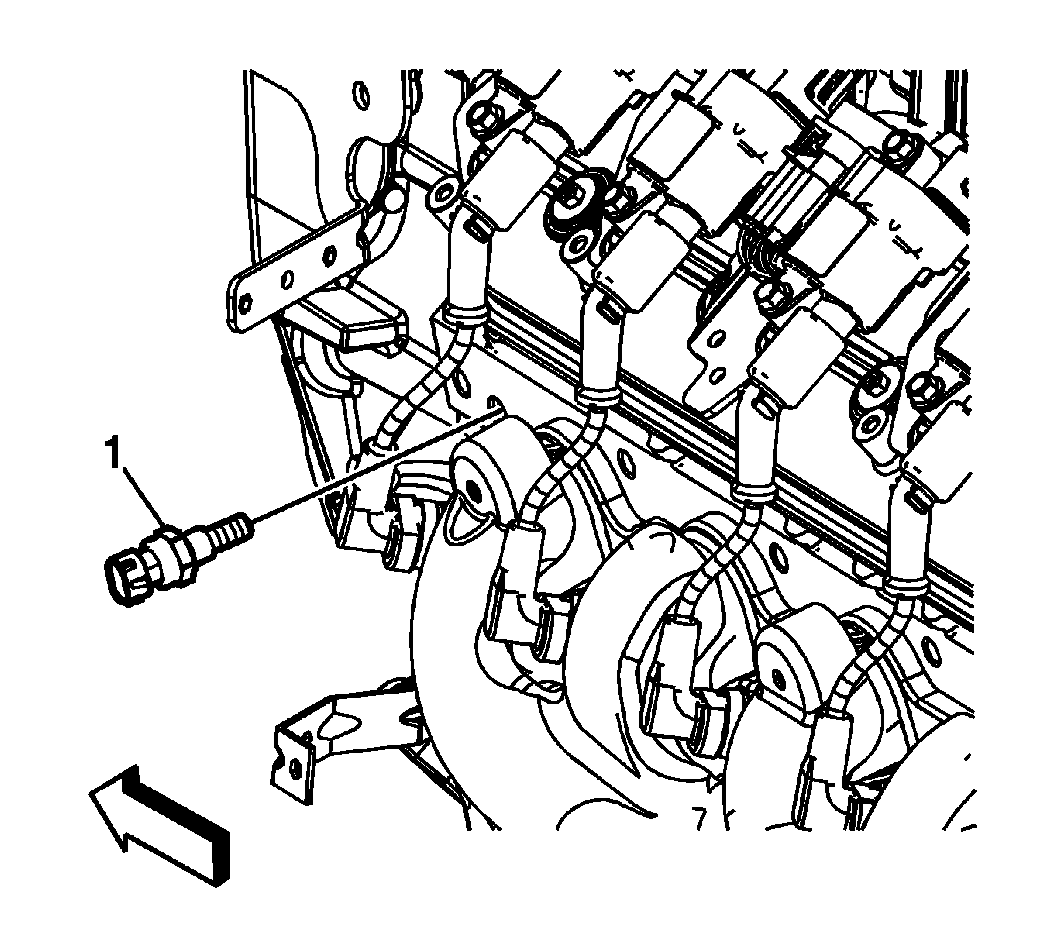

Fig 2: ECT sensor

Courtesy of GENERAL MOTORS CORP.

Remove the ECT sensor (1).
