2009 Hummer H3 AlphaFACTORY OEM SERVICE PROCEDURE
Installation Procedure

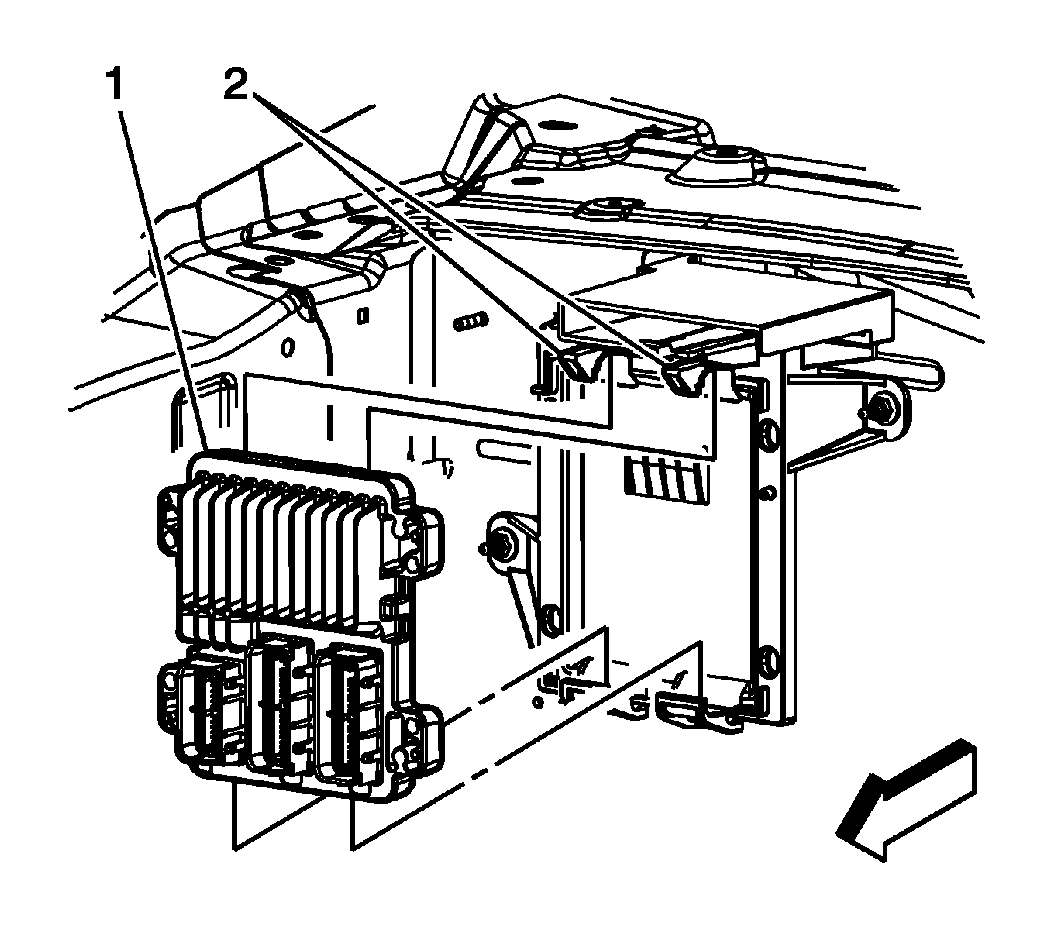

- Set the bottom of the ECM (1) into the bracket, and push the top of the ECM against the bracket. Ensure that the tabs (2) secure the ECM (1).

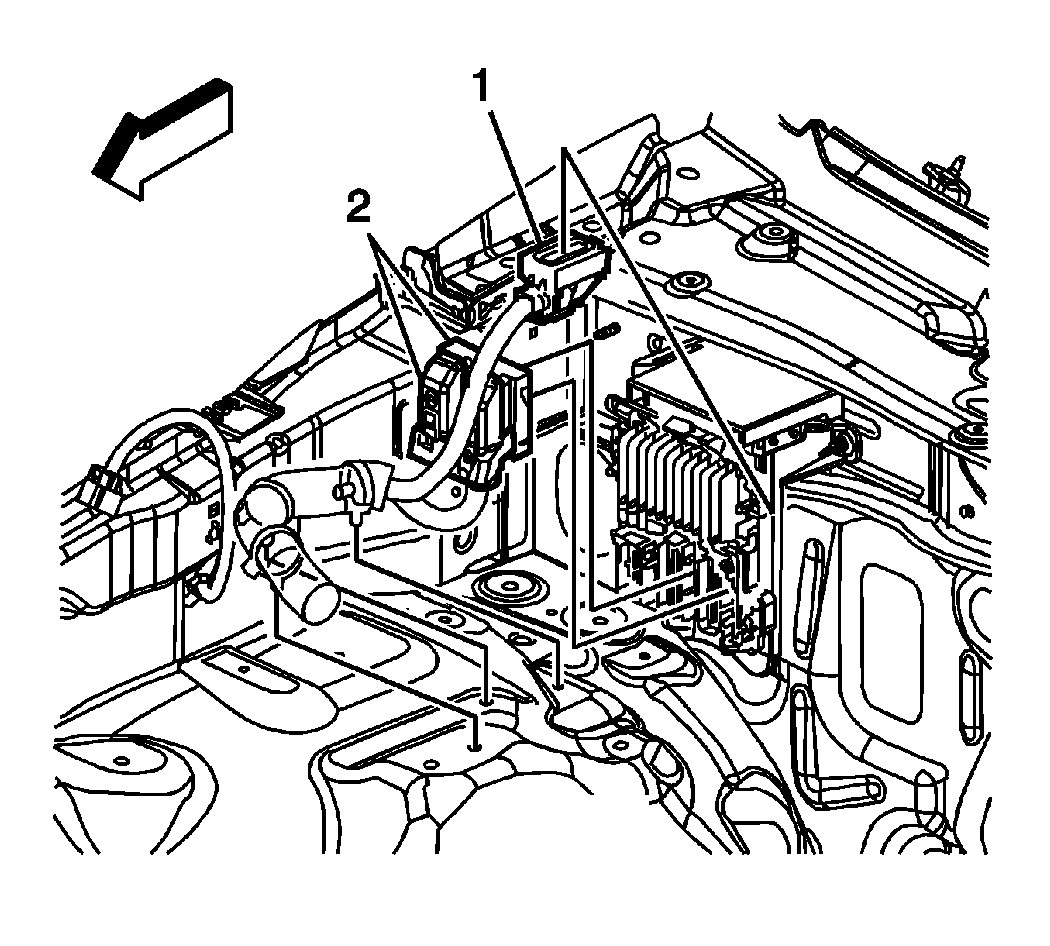

- Connect the engine wiring harness electrical connectors (2) to the ECM.
- Engage the integral CPA retainers on the engine wiring harness electrical connectors.

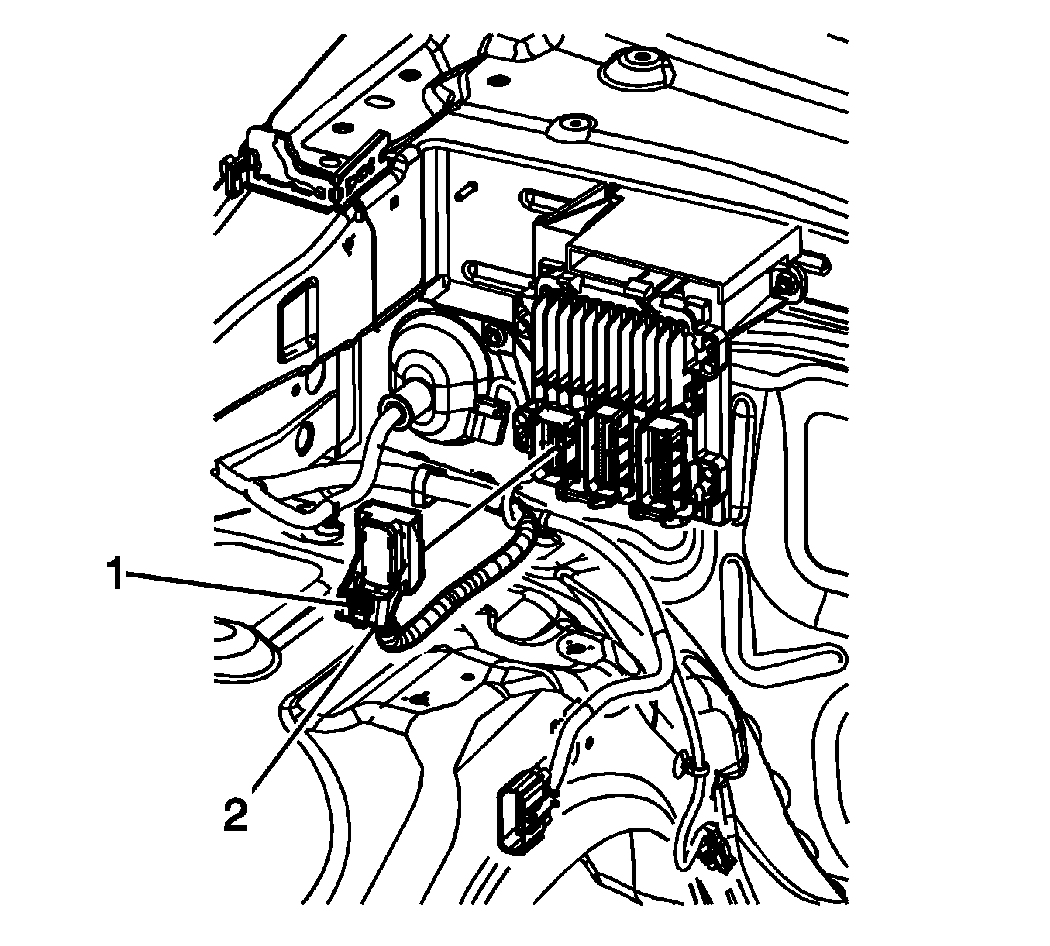

- Connect the body wiring harness electrical connector (2) to the ECM.
- Engage the integral CPA retainer (1) on the body wiring harness electrical connector.
- If a NEW ECM was installed, the ECM must be programmed. Refer to Control Module References .
- Install the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
