2009 Hummer H3 AlphaFACTORY OEM SERVICE PROCEDURE

Installation Procedure

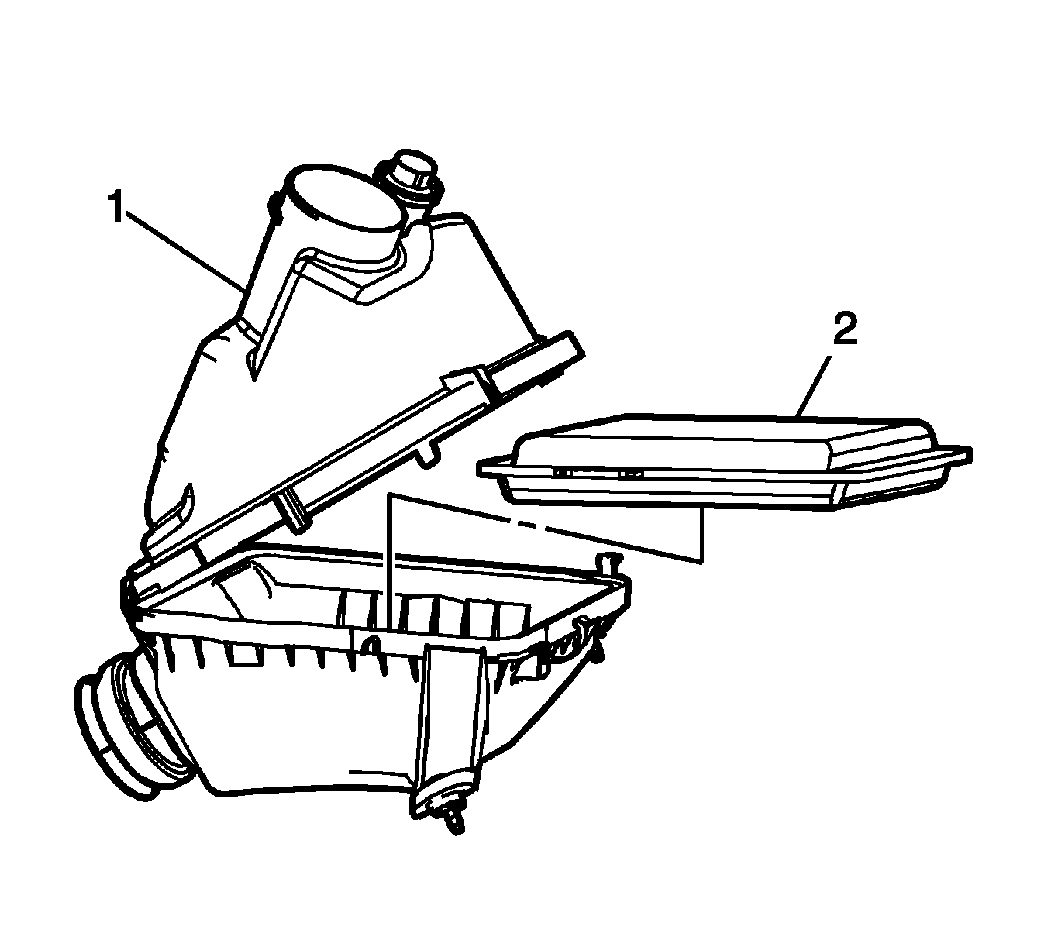

Fig 1: Air Cleaner Upper Housing

Courtesy of GENERAL MOTORS CORP.

Install the air filter element (2) to the lower air cleaner housing.
Close the air cleaner upper housing (1).

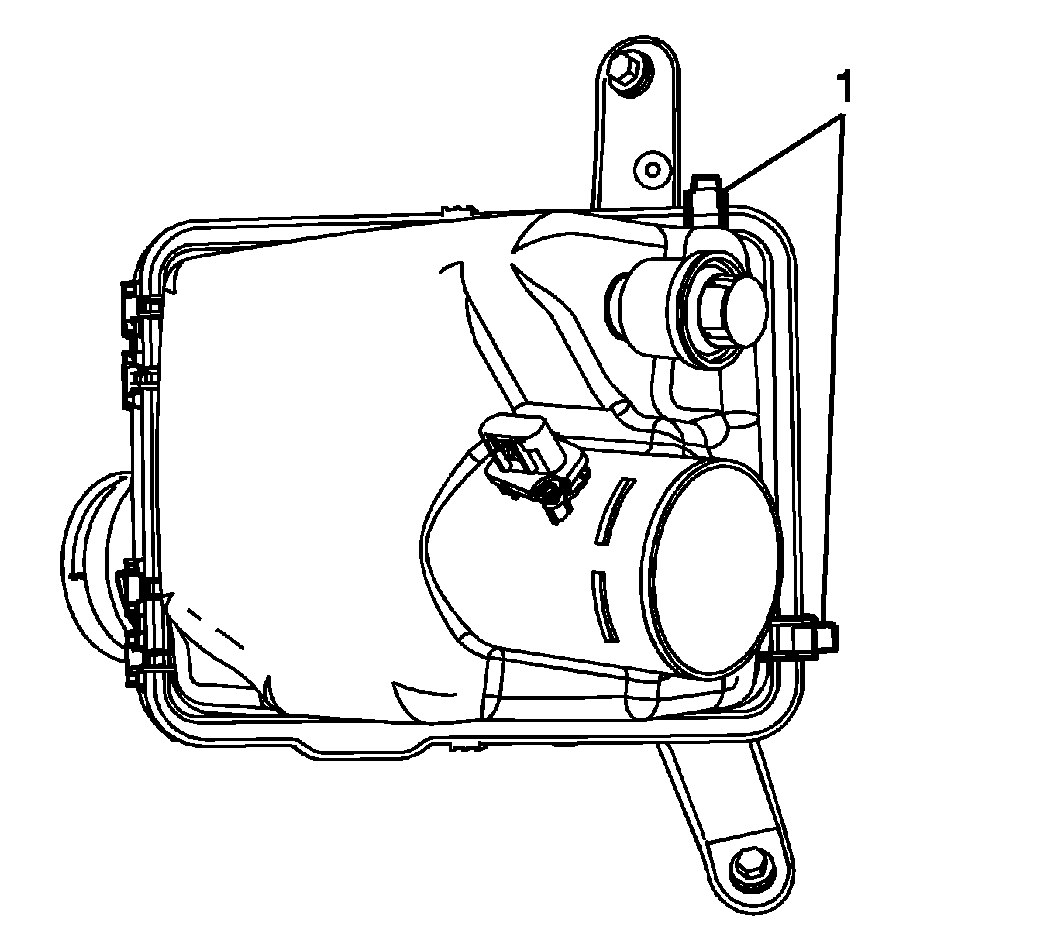

Fig 2: Air Cleaner Upper Housing Retainer Clips

Courtesy of GENERAL MOTORS CORP.

Latch the air cleaner upper housing retainer clips (1).
Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
