2009 Hummer H3 AlphaFACTORY OEM SERVICE PROCEDURE

Installation Procedure

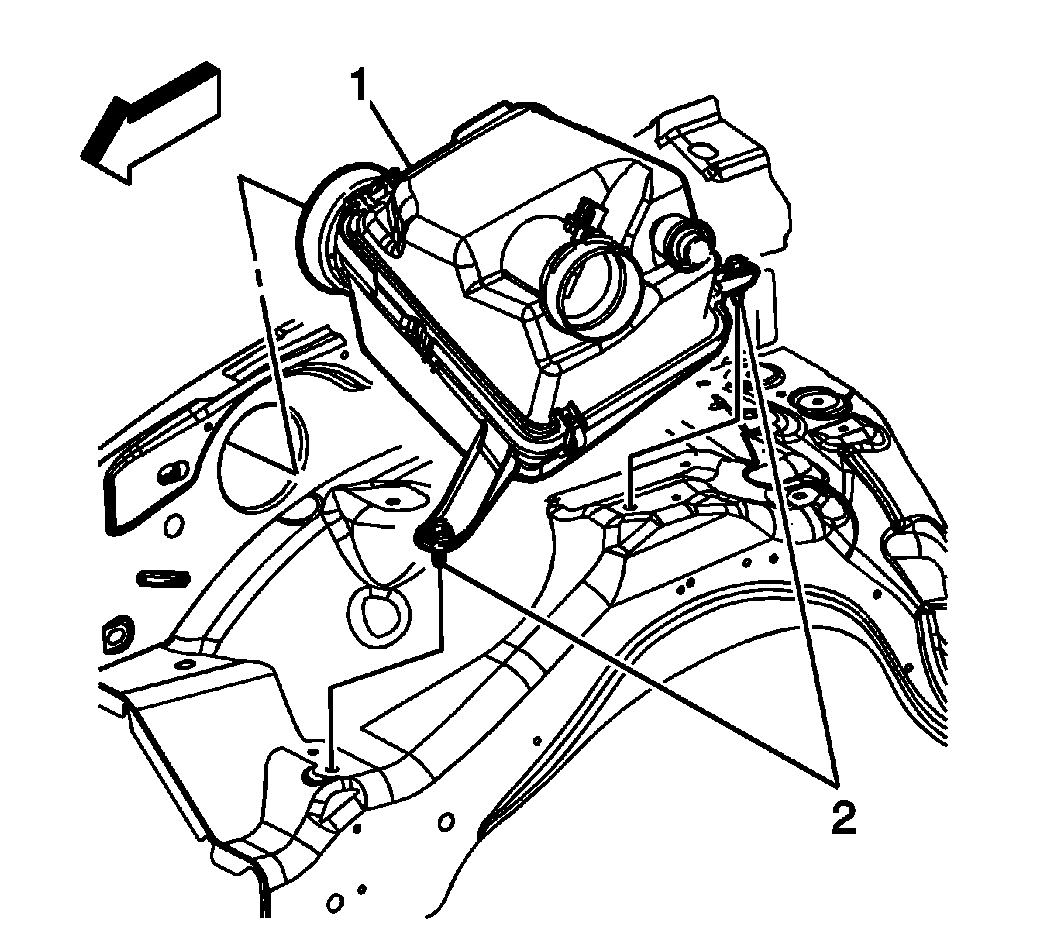

Fig 1: Integral Air Cleaner Housing Bolts

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner housing (1) to the vehicle.

CAUTION: Refer to Fastener Caution .

Tighten the integral air cleaner housing bolts (2) to 15 N.m (11 lb ft).

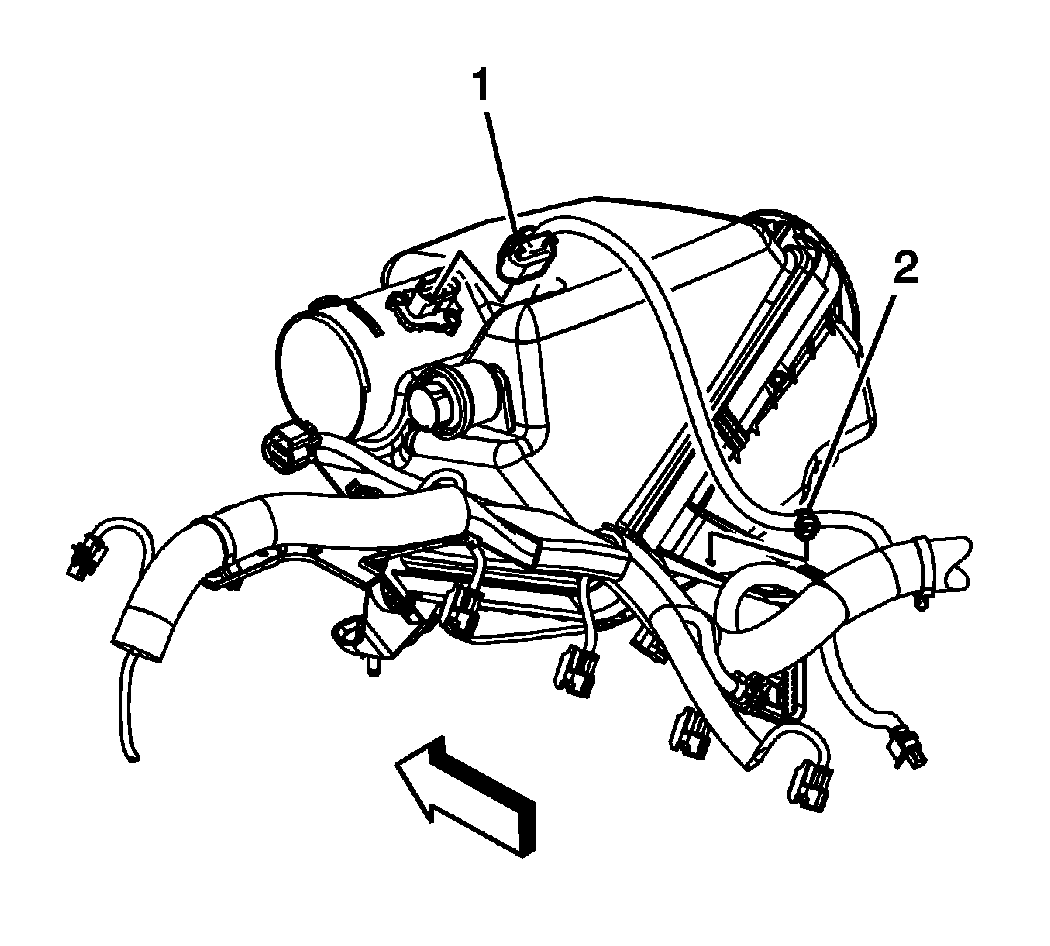

Fig 2: Engine Wiring Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
Install the air cleaner outlet duct to the air cleaner. Refer to Air Cleaner Resonator Outlet Duct Replacement .
