2009 Hummer H2 V8-6.2LFACTORY OEM SERVICE PROCEDURE
Power Window Switch: Locations
Instrument Panel/Center Console Component Views
Instrument Panel and Console Overview
1 - Window Wiper/Washer Switch - Rear (SUV) or Window Switch - Midgate(SUT)
2 - Instrument Panel Cluster (IPC)
3 - Turn Signal/Multifunction Switch
4 - Inflatable Restraint Steering Wheel Module
5 - Ambient Light/Sunload Sensor Assembly
6 - Transfer Case Shift Control Switch
7 - Clock
8 - Radio
9 - Inflatable Restraint I/P Module
10 - Inflatable Restraint I/P Module Disable Switch
11 - Accessory Power Outlet - Front
12 - Rear Seat Audio (RSA) Control
13 - Accessory Power Outlet - Center Console 1
14 - Audio/Video Adapter (U42)
15 - Accessory Power Outlet - Center Console 2
16 - MultiFunction Switch - I/P
17 - Steering Wheel Control Switch Assembly - Right
18 - Noise Compensation Microphone (UVB without UE1)
19 - Steering Wheel Control Switch Assembly - Left
20 - Headlamp and Panel Dimmer Switch
21 - Data Link Connector (DLC)
22 - Window Switch - Global

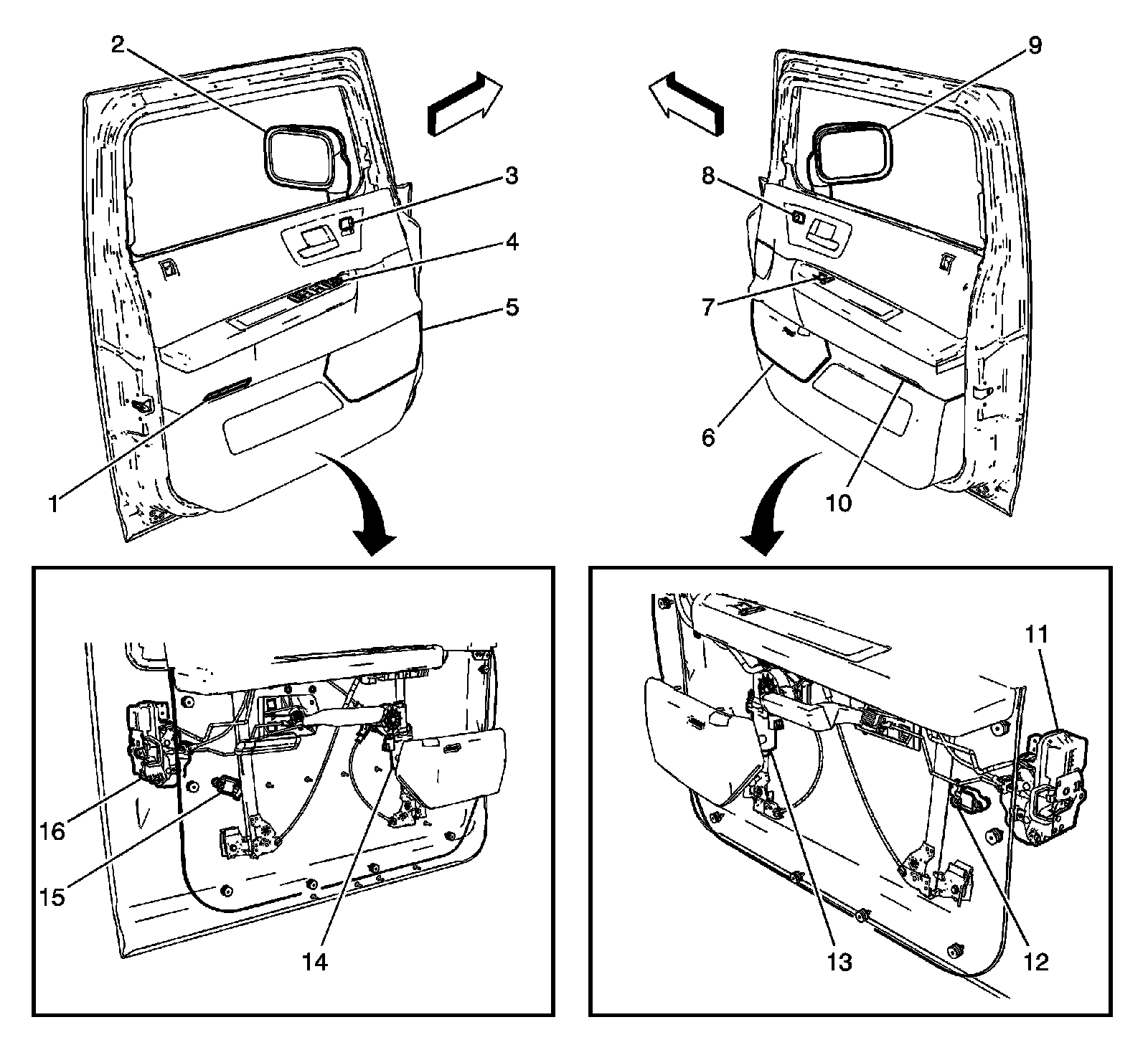

Front Doors
1 - Door Courtesy Lamp-Driver
2 - Outside Rearview Mirror-Driver
3 - Memory/Heated Seat Switch-Driver
4 - Door Lock/Window Switch-Driver
5 - Speaker-Left Front
6 - Speaker-Right Front
7 - Door Lock/Window Switch-Passenger
8 - Heated Seat Switch-Passenger
9 - Outside Rearview Mirror-Passenger
10 - Door Courtesy Lamp-Passenger
11 - Door Latch -Passenger
12 - Inflatable Restraint Side Impact Sensor (SIS) - Right Front
13 - Window Motor-Passenger
14 - Window Motor-Driver
15 - Inflatable Restraint Side Impact Sensor (SIS) - Left Front
16 - Door Latch -Driver

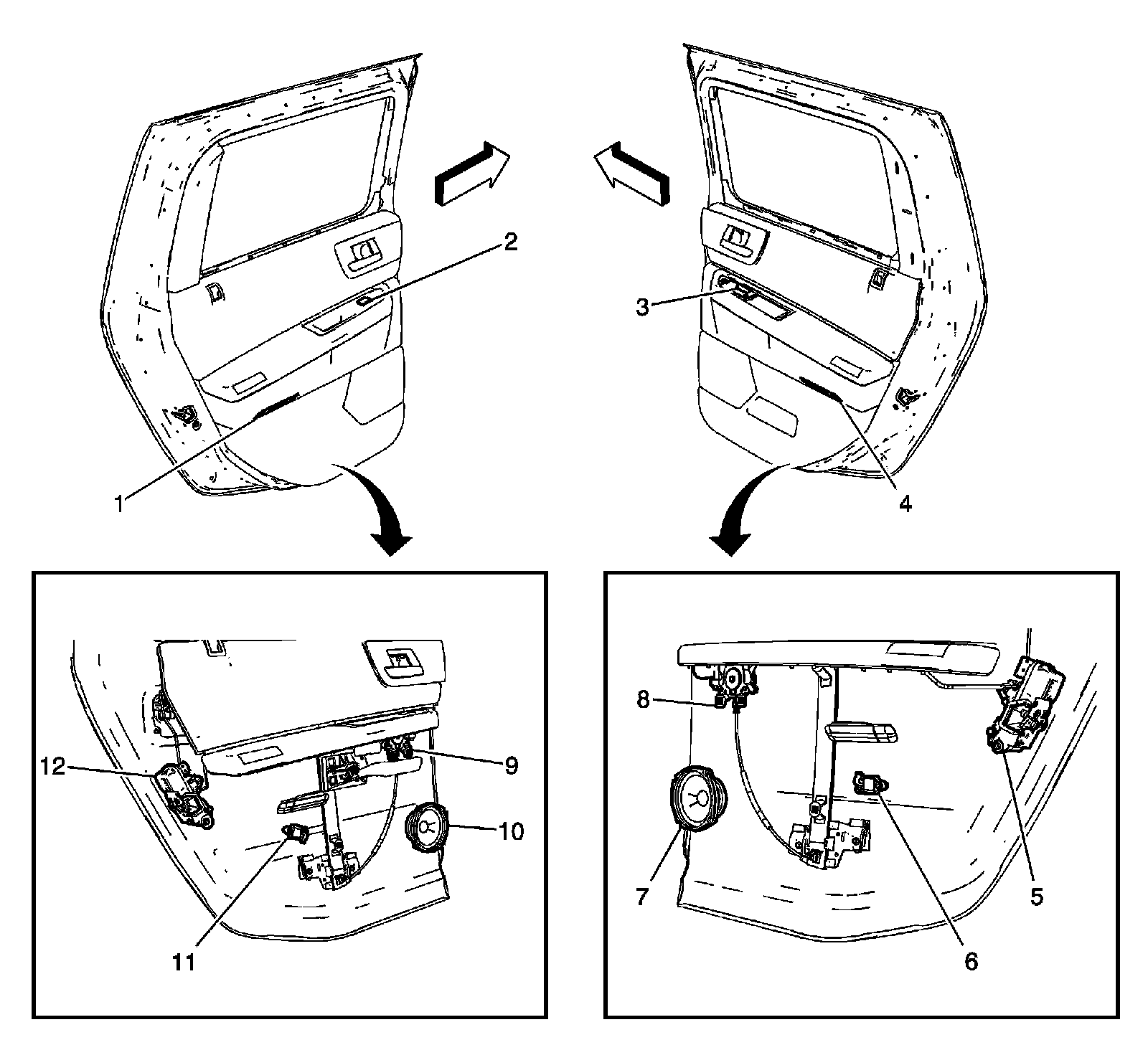

Rear Passenger Doors
1 - Door Courtesy Lamp-Left Rear
2 - Window Switch-Left Rear
3 - Speaker-Left Rear
4 - Speaker-Right Rear
5 - Window Switch-Left Rear
6 - Door Courtesy Lamp-Right Rear
7 - Door Latch Right Rear
8 - Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
9 - Window Motor-Right Rear
10 - Window Motor-Left Rear
11 - Inflatable Restraint Side Impact Sensor (SIS) - Left Rear
12 - Door Latch -Left Rear
