2009 Hummer H2 V8-6.2LFACTORY OEM SERVICE PROCEDURE
Oil Pressure Sensor: Service and Repair
Engine Oil Pressure Sensor and/or Switch Replacement
Special Tools
J 41712 Oil Pressure Sensor Socket
Removal Procedure
1. If necessary, remove the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (Upper Intake Manifold Sight Shield Replacement).

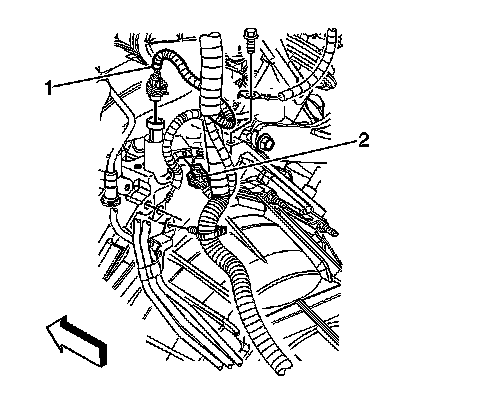

2. Disconnect the oil pressure sensor electrical connector (1).

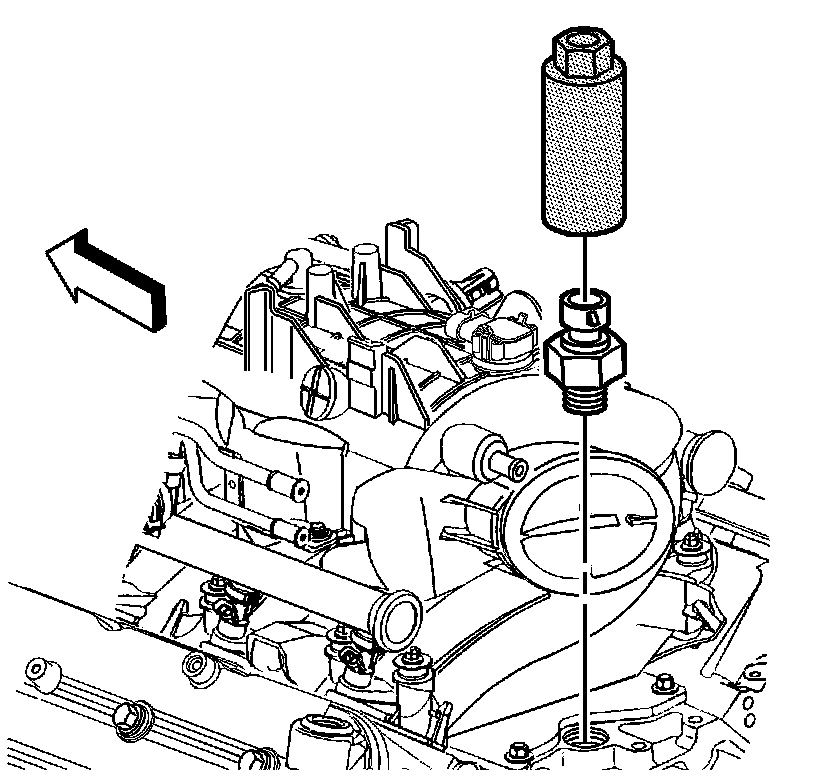

3. Using J 41712 or equivalent, remove the oil pressure sensor.
Installation Procedure
1. Apply sealant to the threads of the oil pressure sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers (Sealers, Adhesives, and Lubricants) for the correct part number.
Caution: Refer to Fastener Caution (Fastener Caution).
2. Using J 41712 or equivalent, install the oil pressure sensor.
Tighten the oil pressure sensor to 35 Nm (26 lb ft).
3. Connect the oil pressure sensor electrical connector (1).
4. If necessary, install the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (Upper Intake Manifold Sight Shield Replacement).
