Installation Procedure

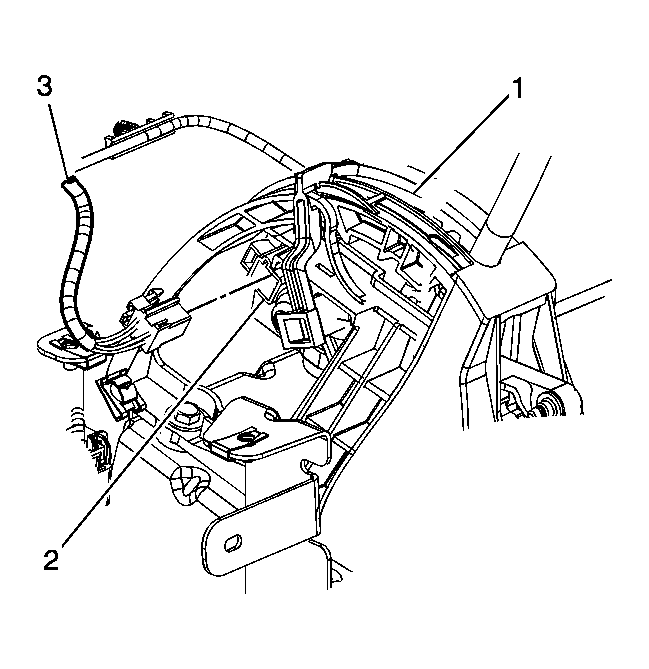

- In the DRIVE position, depress the shift lock actuator button and realign into the shifter lever.
- Push lever to NEUTRAL.
- Install the top screw through the lever slot.
Tighten: Tighten the actuator screw to 1.65 N.m (15 lb in).
- Shift lever to LOW.
- Install the screw at the rear of the shifter assembly.
Tighten: Tighten the actuator screw to 1.65 N.m (15 lb in).
- Connect the electrical connector (3).
- Install the console. Refer to Front Floor Console Replacement .
