2009 Hummer H2 4D Utility PickupFACTORY OEM SERVICE PROCEDURE

Body Control Module Replacement

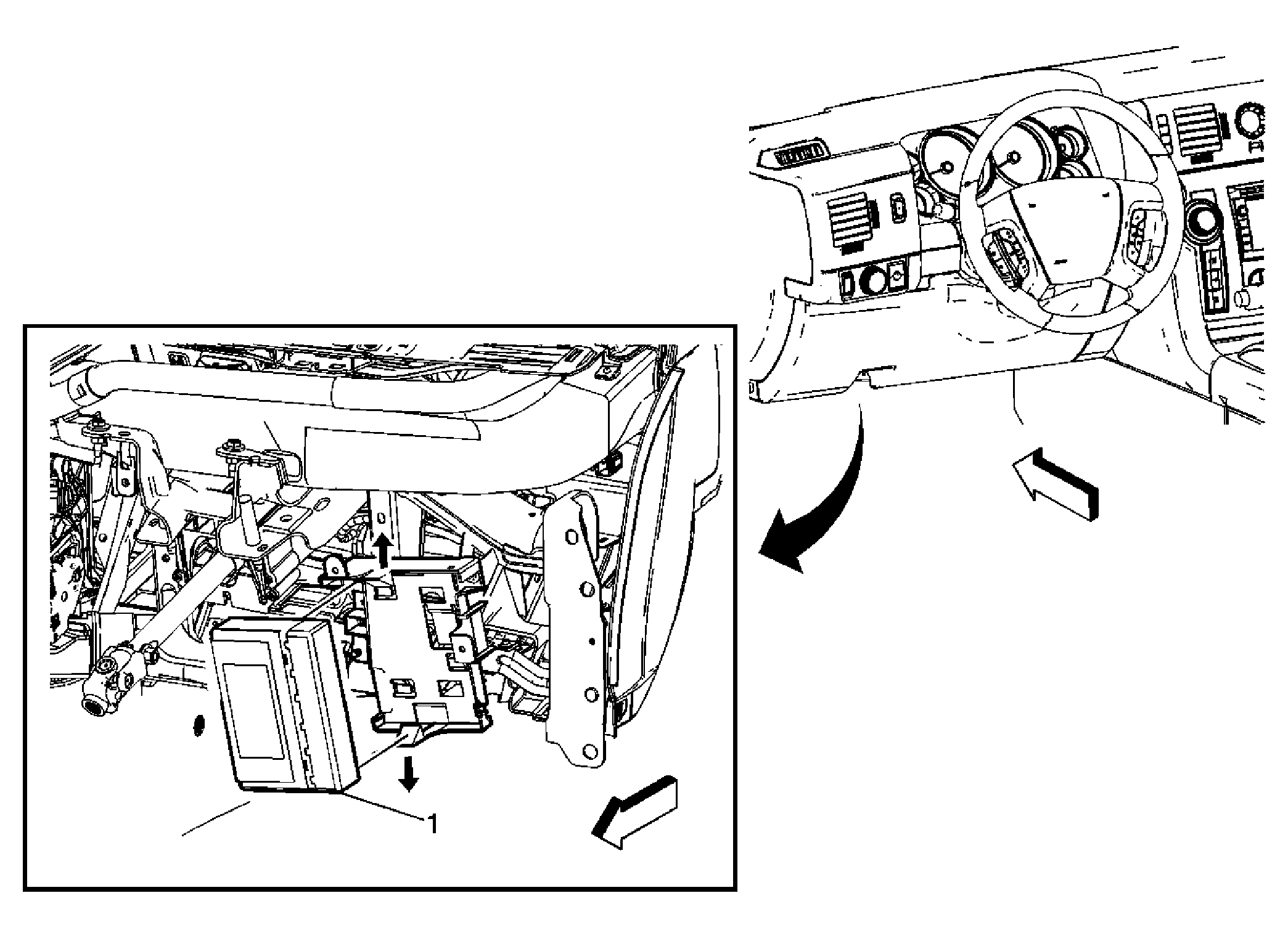

Fig 1: Identifying Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Body Control Module

Procedure

Remove the tape securing the BCM wiring harness prior to removing connectors.
Disconnect the electrical connectors.
Press on the tabs to release the body control module.
After servicing BCM use a tie strap to secure the wiring harness where the tape was removed.
If a replacement module is installed, program the module. Refer to Control Module References
