2008 Hummer H3 V8-5.3LFACTORY OEM SERVICE PROCEDURE
Oil Pressure Sensor: Service and Repair
Engine Oil Pressure Sensor and/or Switch Replacement
Tools Required
J 41712 Oil Pressure Switch Socket
Removal Procedure
1. Remove the intake manifold. Refer to Intake Manifold Replacement (Intake Manifold Replacement) .

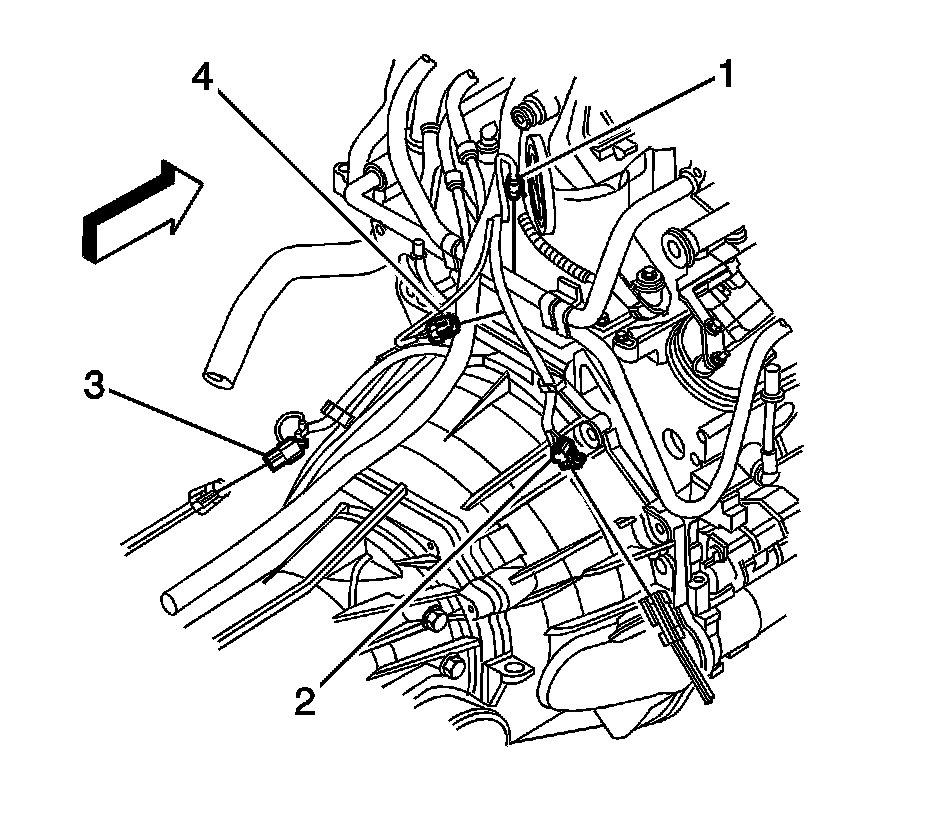

2. Disconnect the oil pressure sensor electrical connector (1).
3. Using J 41712 or equivalent, remove the oil pressure sensor.
Installation Procedure
1. Apply sealant to the threads of the oil pressure sensor. Refer to Adhesives, Fluids, Lubricants, and Sealers (Sealers, Adhesives, and Lubricants) for the correct part number.
Notice: Refer to Fastener Notice (Fastener Notice) .
2. Using J 41712 or equivalent, install the oil pressure sensor.
Tighten the sensor to 35 N.m (26 lb ft).
3. Connect the oil pressure sensor electrical connector (1).
4. Install the intake manifold. Refer to Intake Manifold Replacement (Intake Manifold Replacement) .
