2008 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Service and Repair
Vehicle Speed Sensor Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair) .

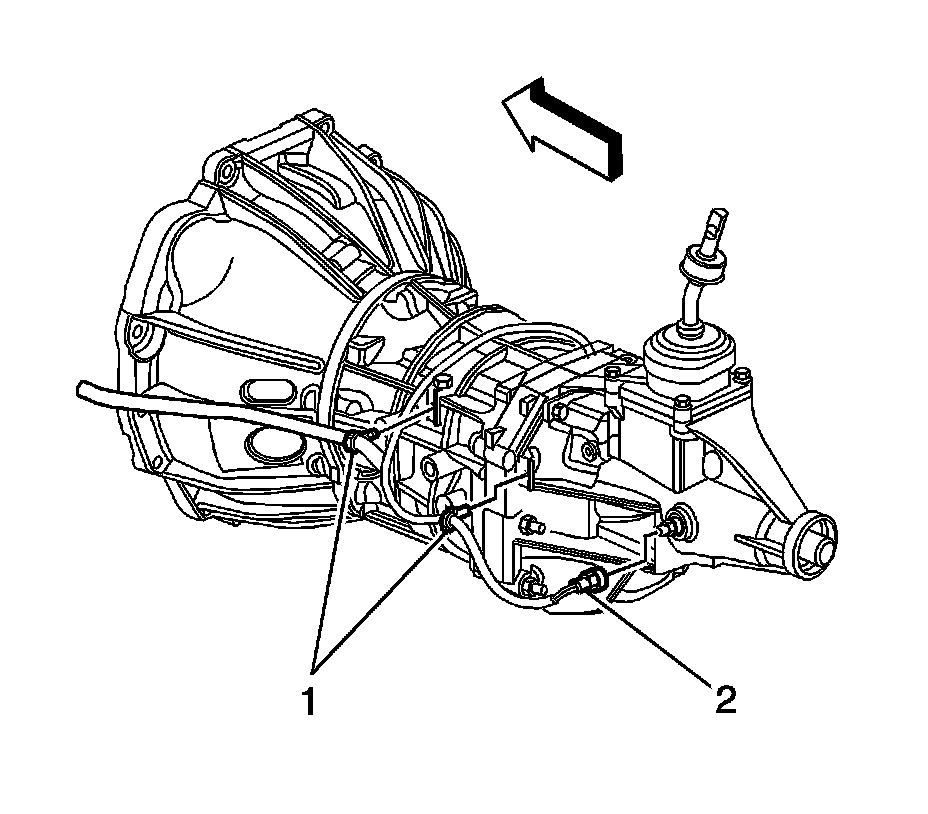

2. Disconnect the vehicle speed sensor (VSS) electrical connector (2).
3. Remove the VSS with O-ring seal.
Installation Procedure
Notice: Refer to Component Fastener Tightening Notice (Component Fastener Tightening Notice) .

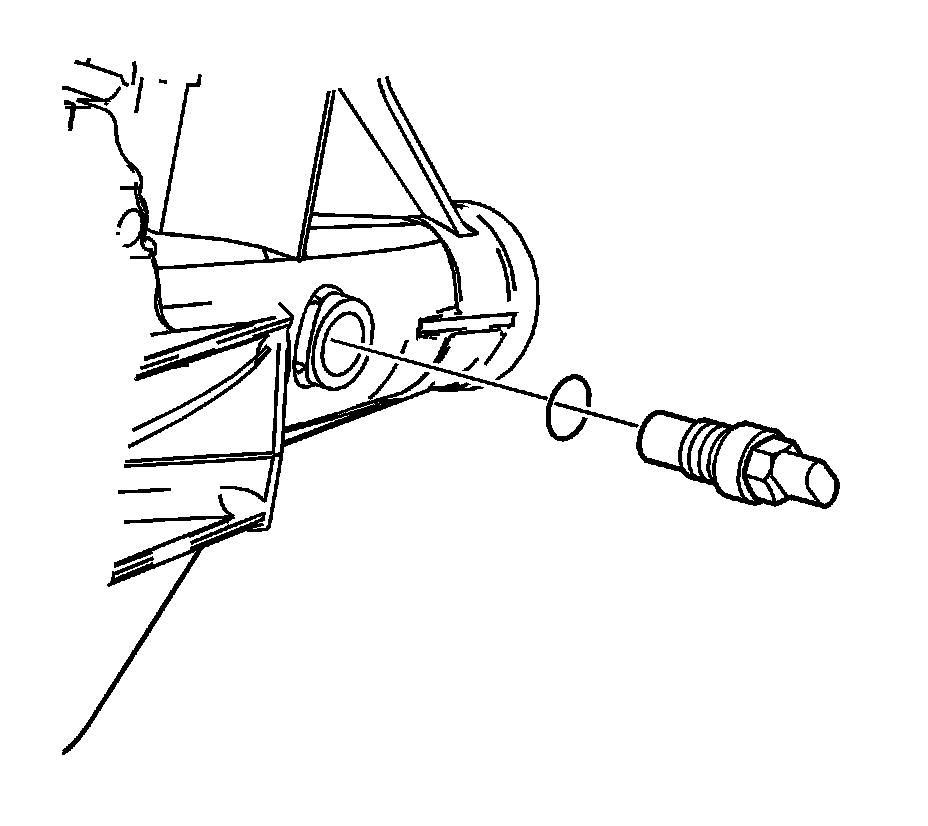

1. Install the VSS with O-ring seal.
Tighten the vehicle speed sensor (VSS) to 17 N.m (13 lb ft).
2. Connect the VSS electrical connector (2).
3. Lower the vehicle.
