2008 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Service and Repair
Fuel Level Sensor Replacement
Removal Procedure
1. Remove the fuel tank module. Refer to Fuel Tank Module Replacement (Service and Repair) .

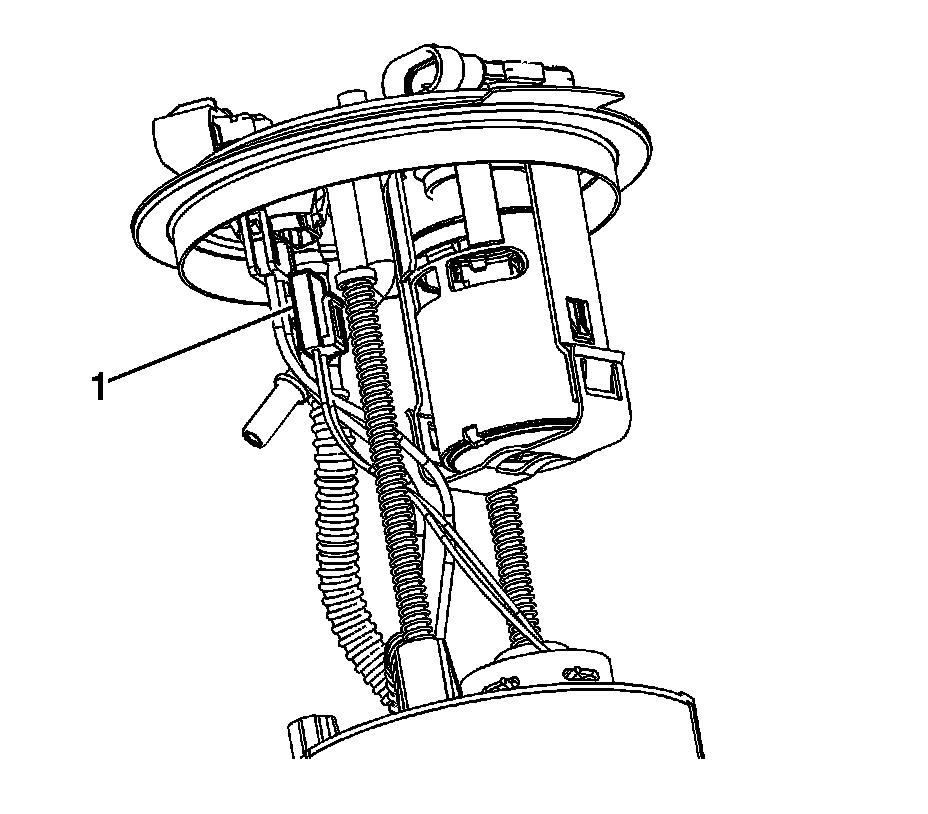

2. Disconnect the fuel level sensor electrical connector (1) from the module cover.

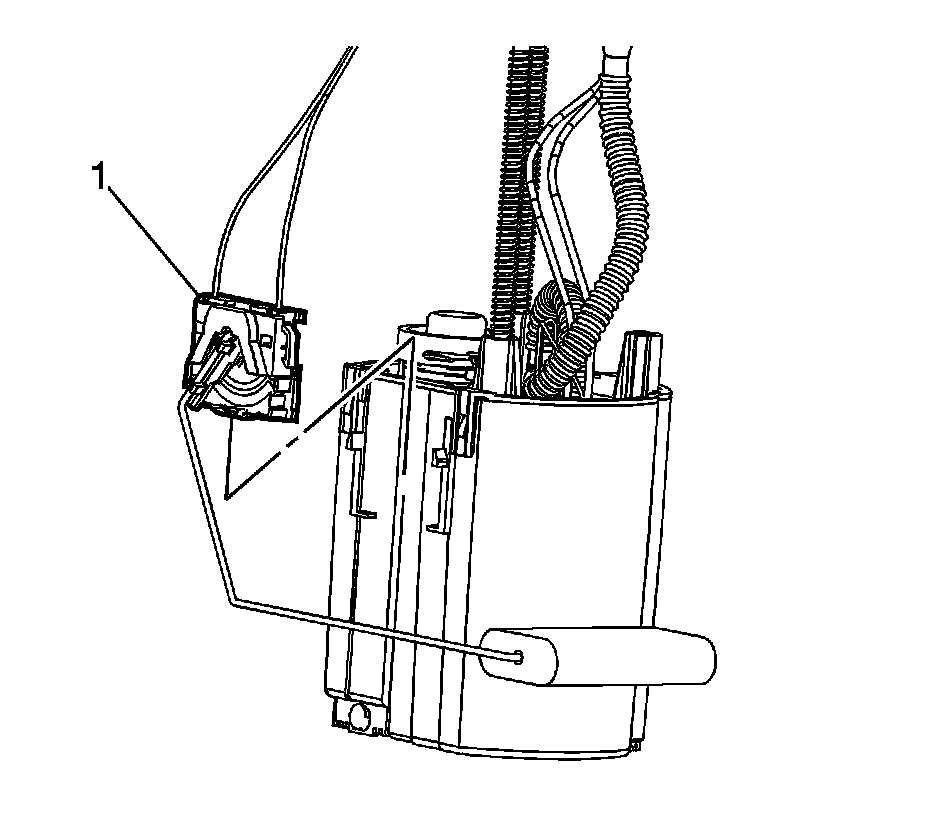

3. Complete the following in order to remove the fuel level sensor (1) from the module bucket:
1. Disengage the locking tabs on the sensor.
2. Slide the sensor upward from the bucket.
Installation Procedure
1. Complete the following in order to install the fuel level sensor to the module bucket.
1. Align the edges of the sensor with the slots in the module bucket.
2. Slide the sensor down into position, ensure the locking tabs are fully engaged.
2. Connect the fuel level sensor electrical connector (1) to the module cover.
3. Install the fuel tank module. Refer to Fuel Tank Module Replacement (Service and Repair) .
