2008 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Engine Views
Harness Routing Views

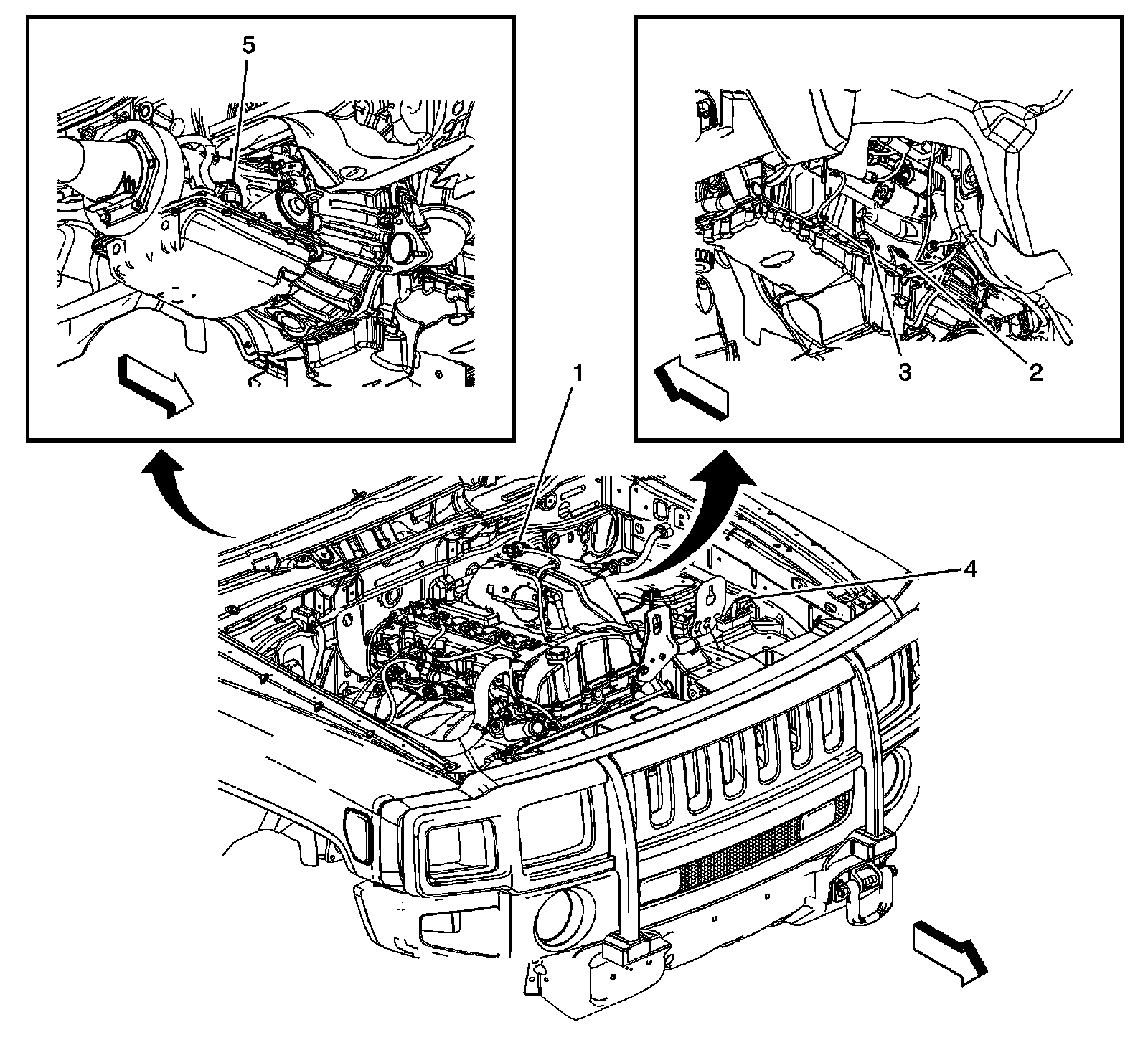

Engine Harness LLR
1 - X101
2 - G102
3 - G103
4 - X125
5 - X175

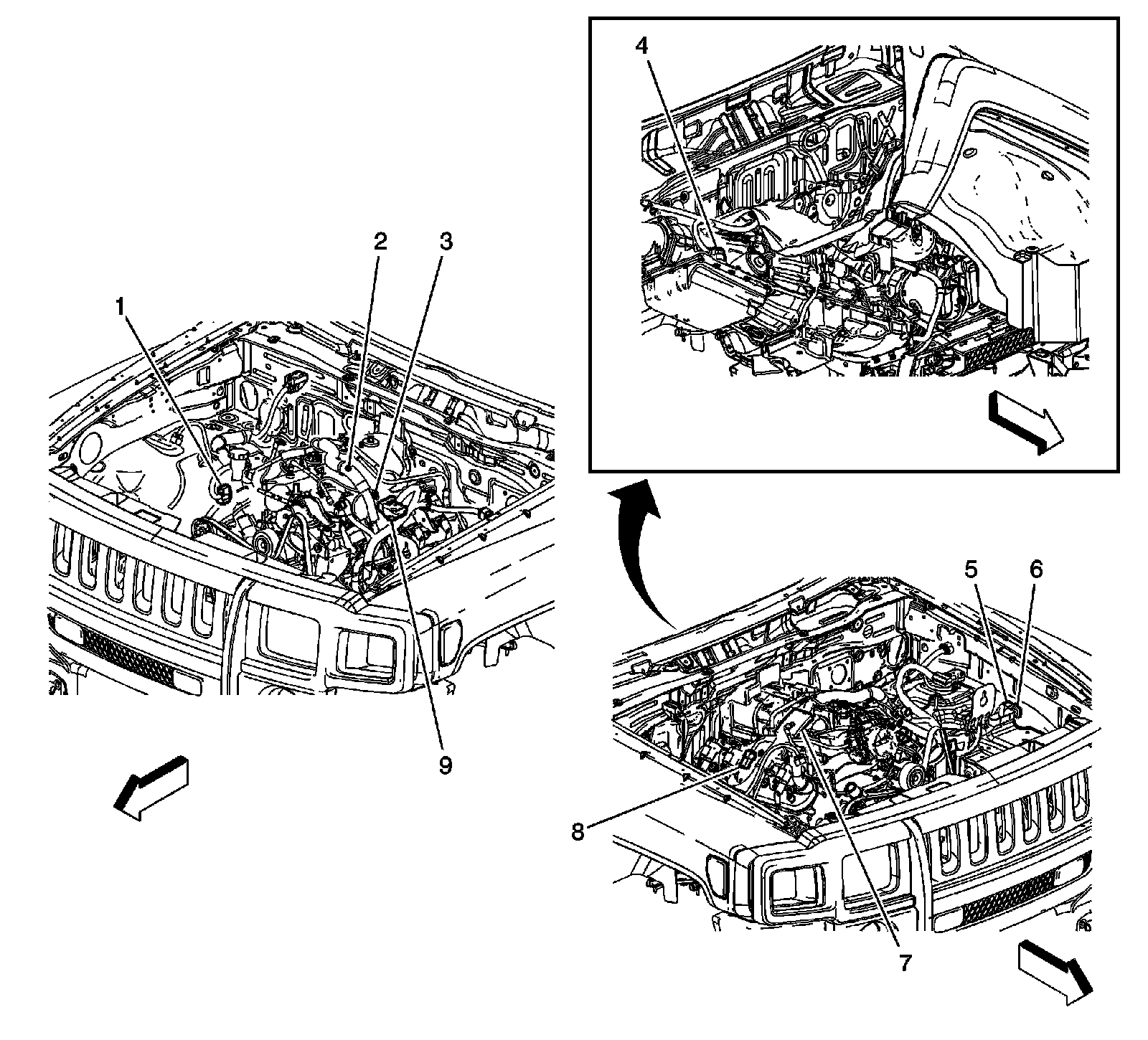

Engine Harness Routing (LH8)
1 - X102
2 - J136
3 - J111
4 - X175
5 - X125
6 - X130
7 - J113
8 - X113
9 - X111
