2008 Hummer H3 L5-3.7LFACTORY OEM SERVICE PROCEDURE
Control Module HVAC: Locations

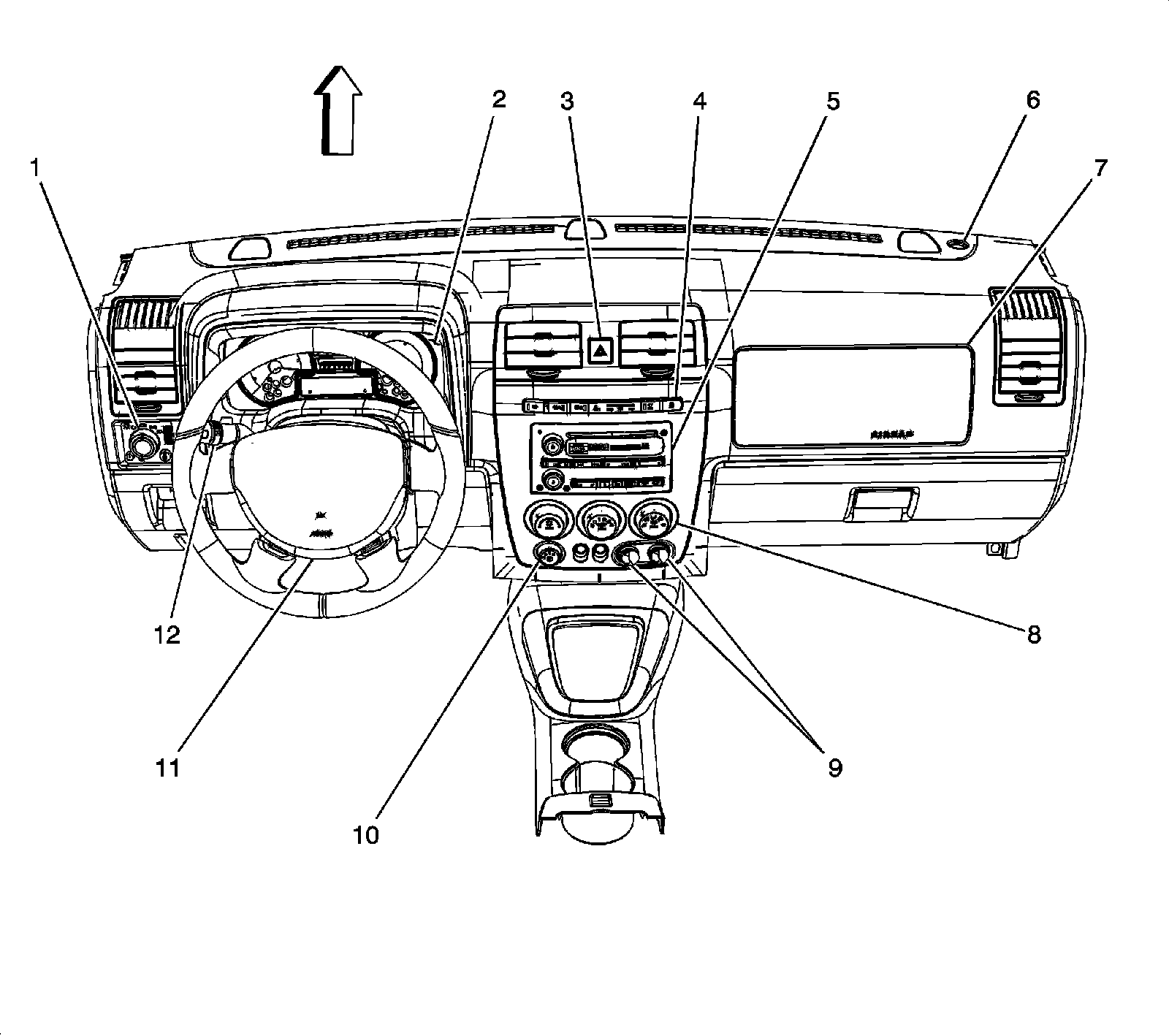

Front of the I/P Components
1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Hazard Switch
4 - Accessory Switch
5 - Radio
6 - Ambient Light Sensor
7 - Inflatable Restraint I/P Module
8 - HVAC Control Module
9 - Accessory Power Outlet - I/P 1 and Accessory Power Outlet - I/P 2
10 - Window Wiper/Washer Switch - Rear
11 - Inflatable Restraint Steering Wheel Module
12 - Turn Signal/Multifunction Switch
