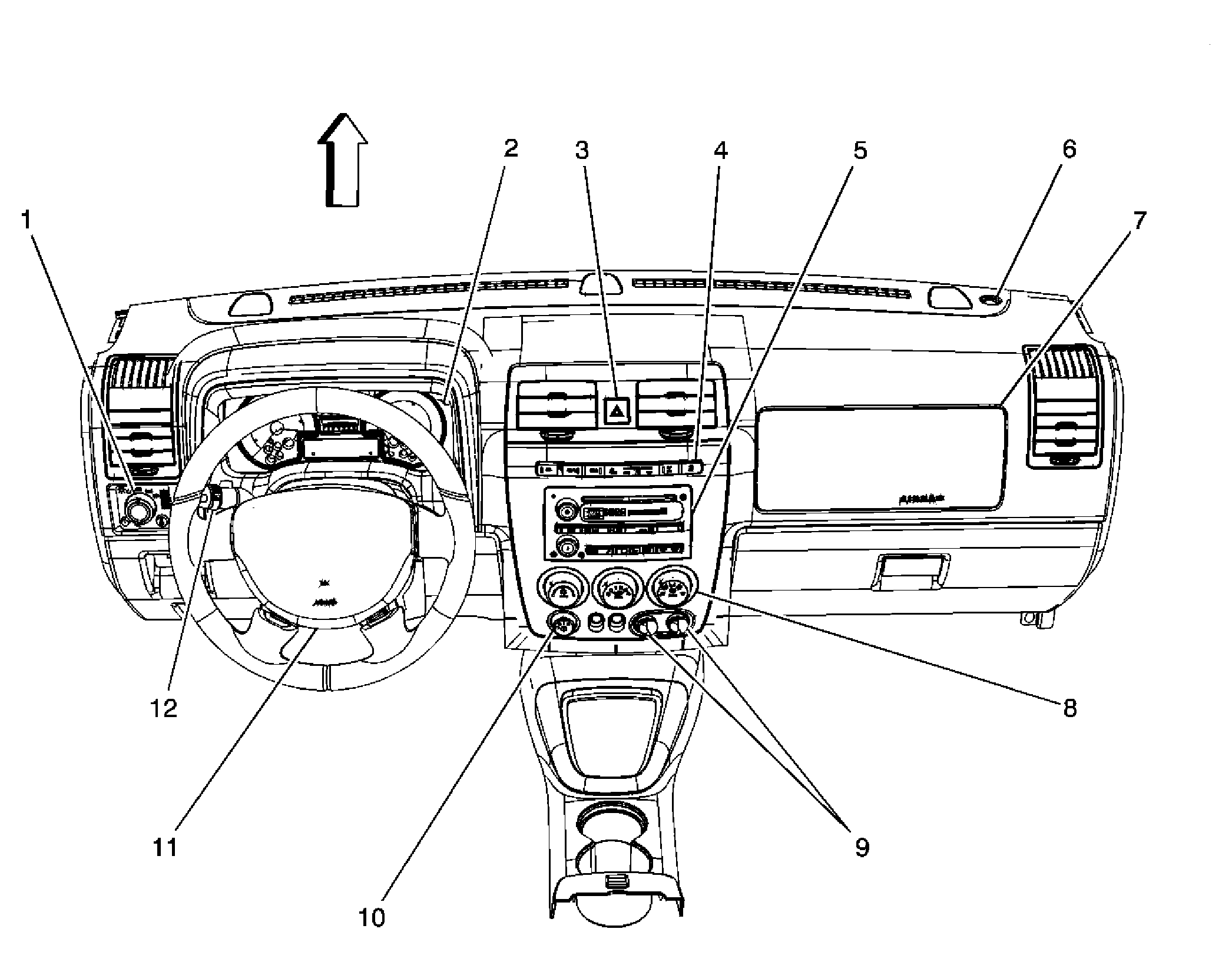

Fig 1: Front of the I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Hazard Switch
4	Accessory Switch
5	Radio
6	Ambient Light Sensor
7	Inflatable Restraint I/P Module
8	HVAC Control Module
9	Accessory Power Outlet - I/P 1 and Accessory Power Outlet - I/P 2
10	Window Wiper/Washer Switch - Rear
11	Inflatable Restraint Steering Wheel Module
12	Turn Signal/Multifunction Switch

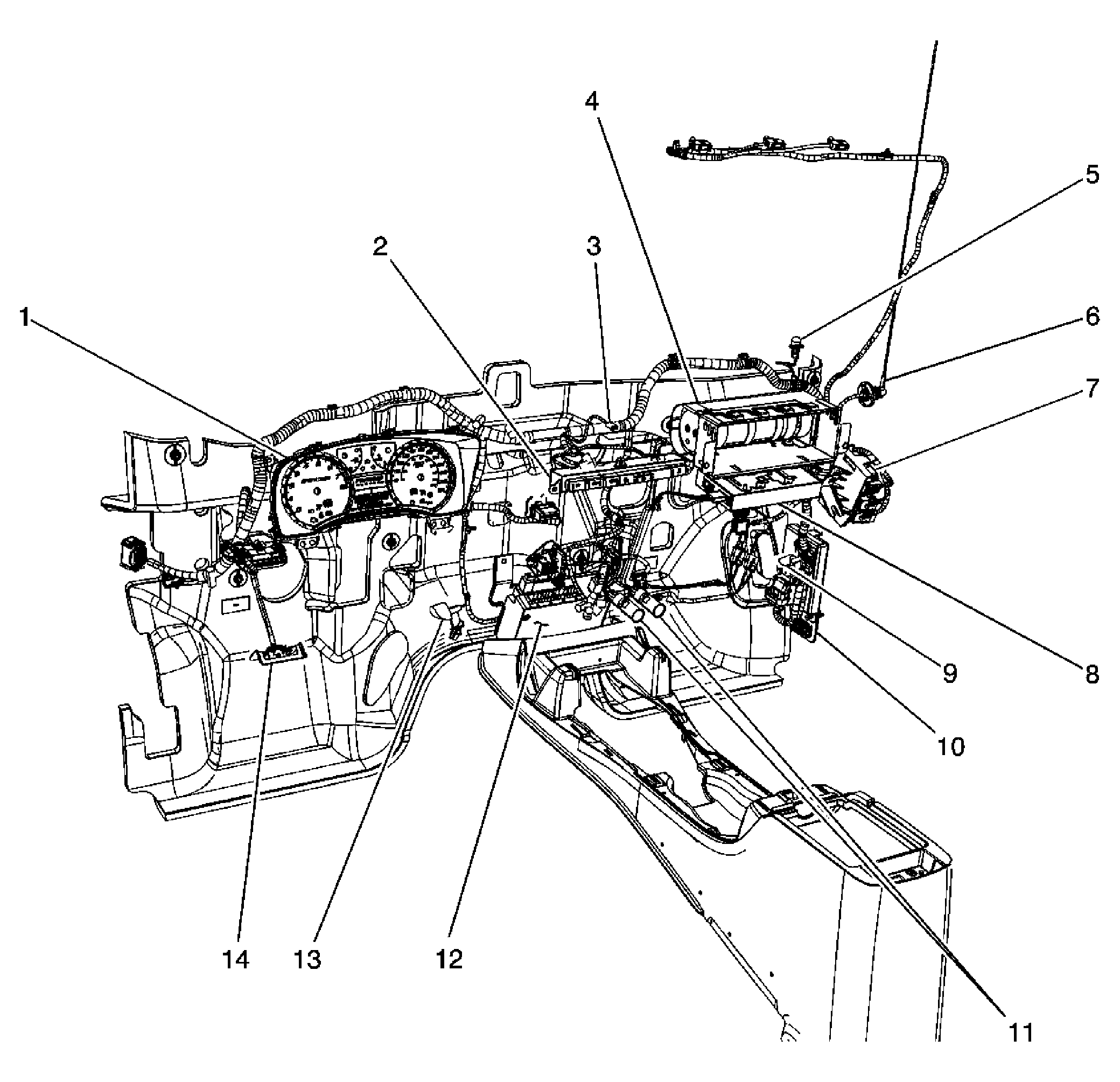

Fig 2: Identifying I/P Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Accessory Switch
3	Hazard Switch
4	Inflatable Restraint I/P Module
5	Ambient Light Sensor
6	Radio Antenna
7	Transfer Case Shift Control Module
8	Digital Radio Receiver (U2K)
9	I/P Courtesy Lamp - Right
10	Body Control Module (BCM)
11	Accessory Power Outlet - I/P 1 and Accessory Power Outlet - I/P 2
12	Vehicle Communication Interface Module (VCIM) (UE1)
13	I/P Courtesy Lamp - Left
14	Data Link Connector (DLC)

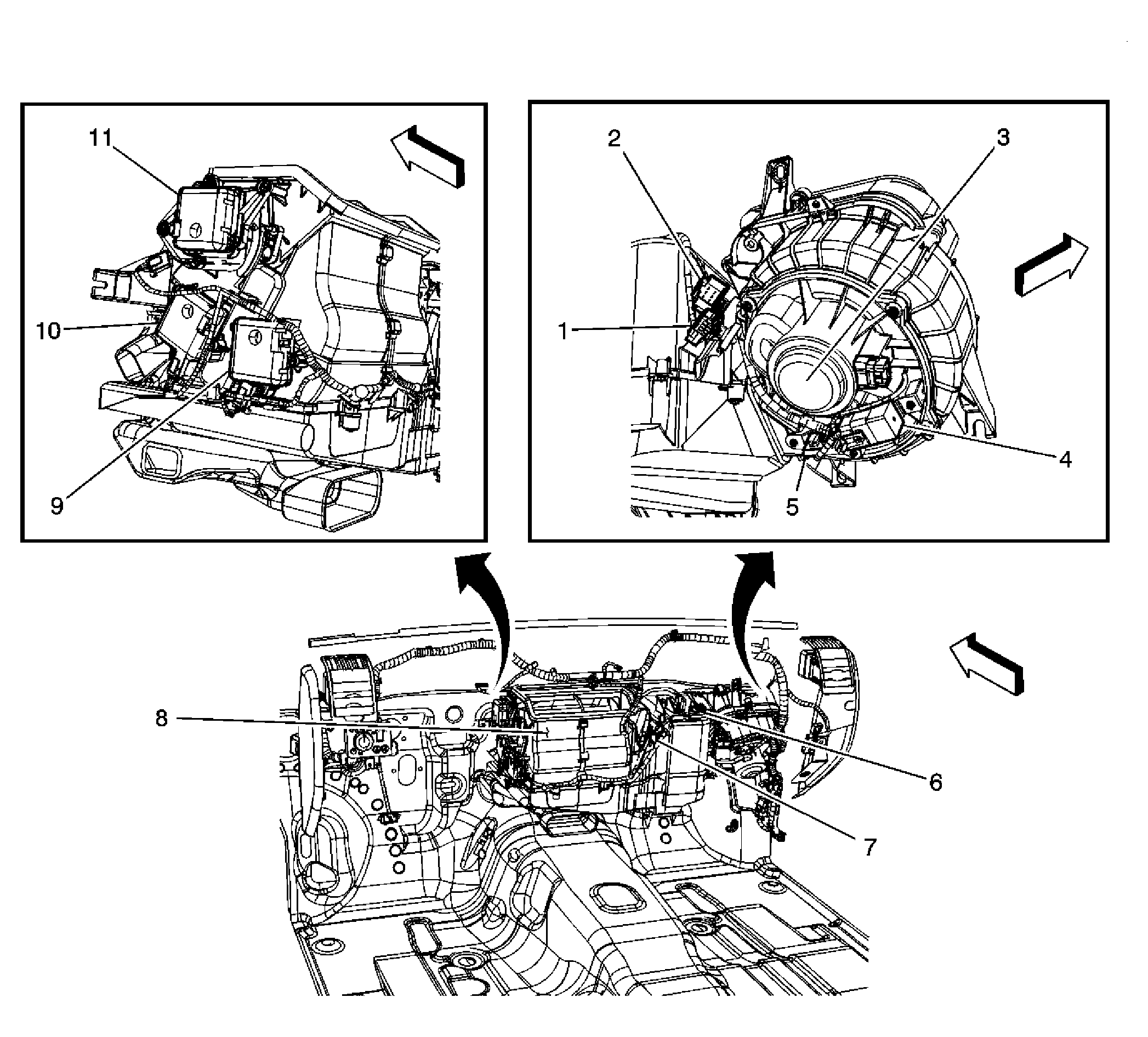

Fig 3: HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X205
2	X203
3	Blower Motor
4	Blower Motor High Speed Relay
5	Blower Motor Resistor Assembly
6	Recirculation Actuator
7	Evaporator Temperature Sensor
8	HVAC Control Module
9	Air Temperature Actuator - Right
10	Air Temperature Actuator - Left
11	Mode Actuator

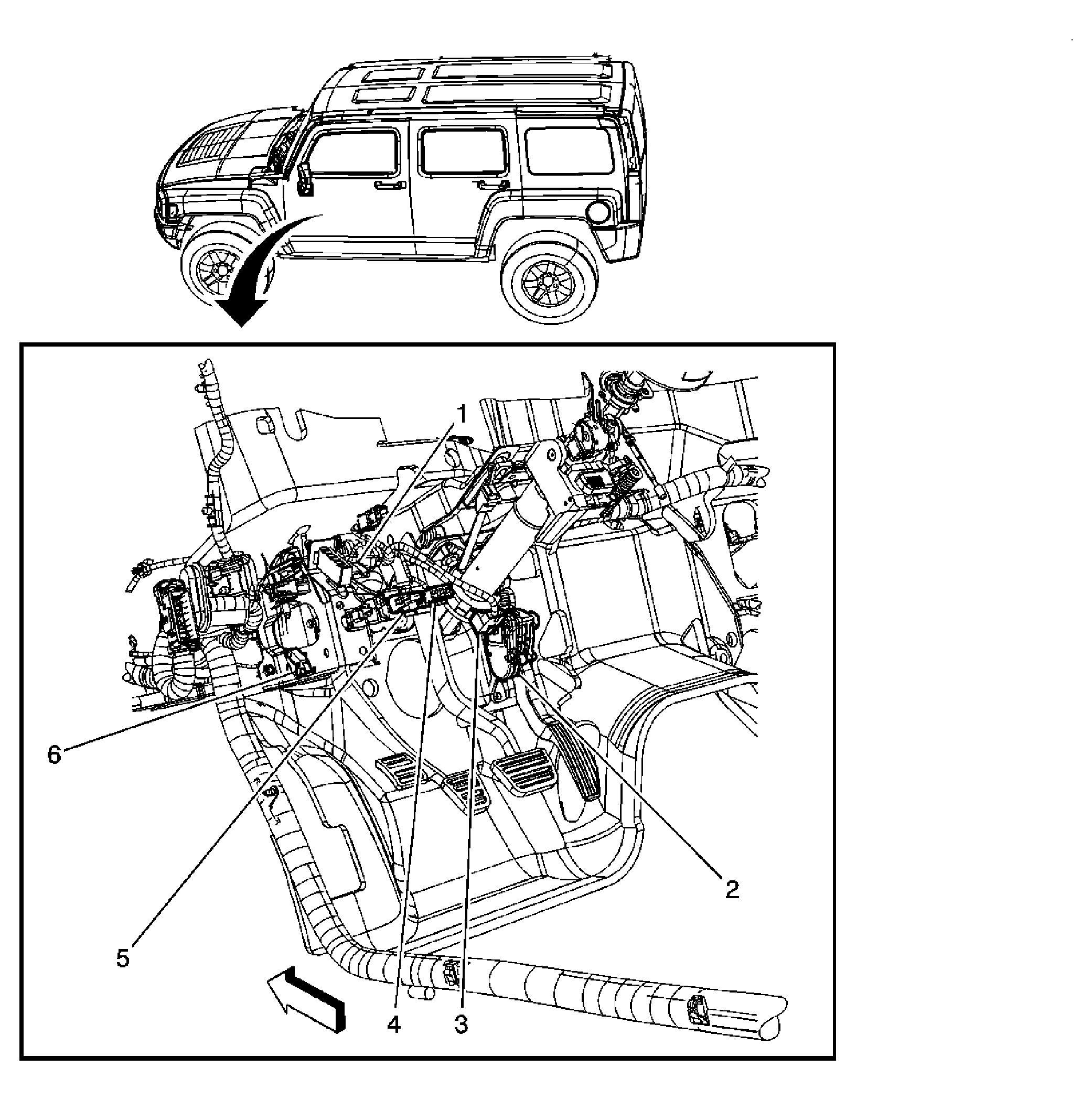

Fig 4: Under the Left Side of the I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CPP) Sensor (MA5)
2	Accelerator Pedal Position (APP) Sensor
3	Steering Wheel Position Sensor
4	Cruise Control Release Switch
5	Stop Lamp Switch
6	Park Brake Switch

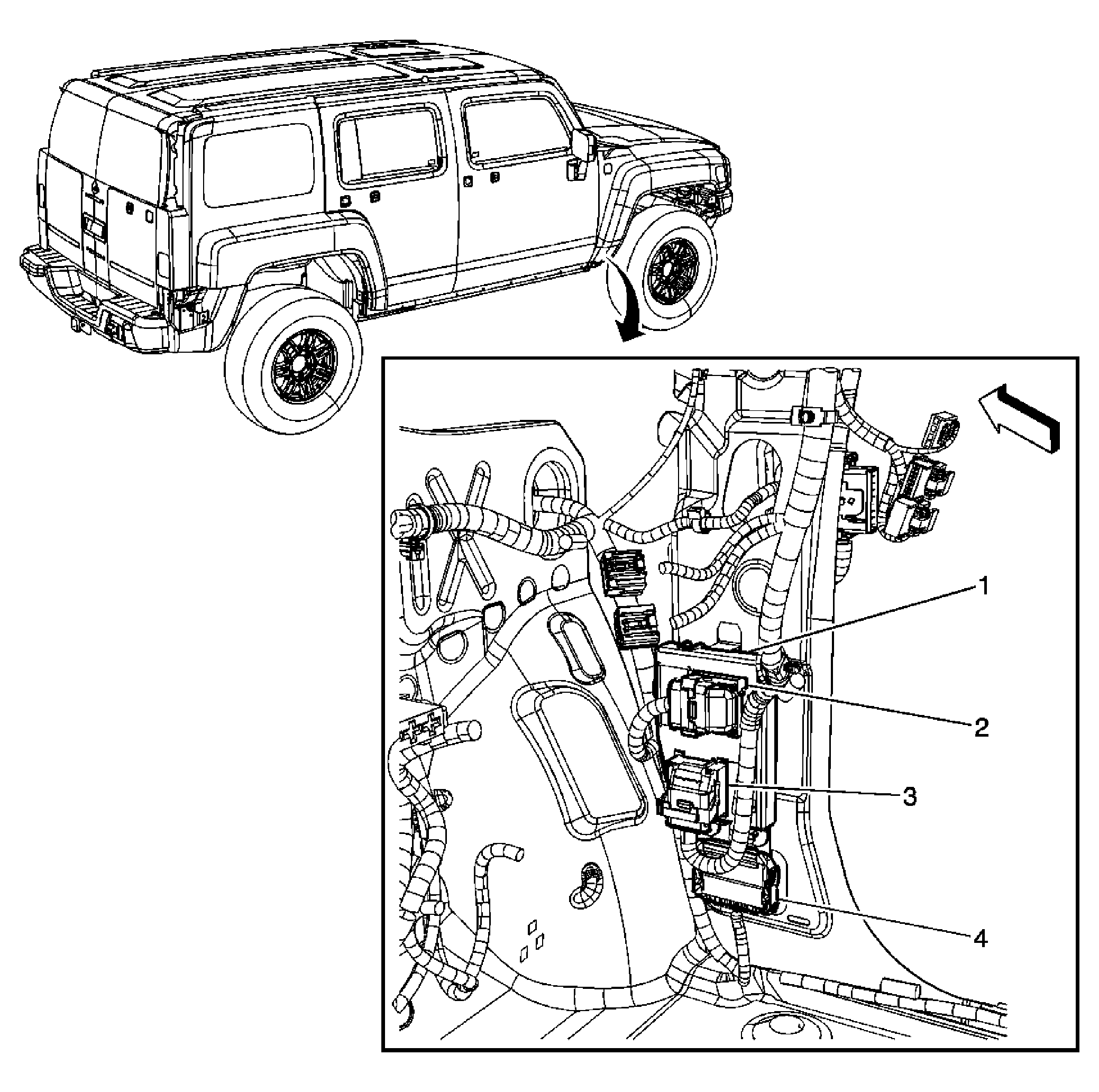

Fig 5: View Of Components Behind Right Front Kick Panel

Courtesy of GENERAL MOTORS CORP.

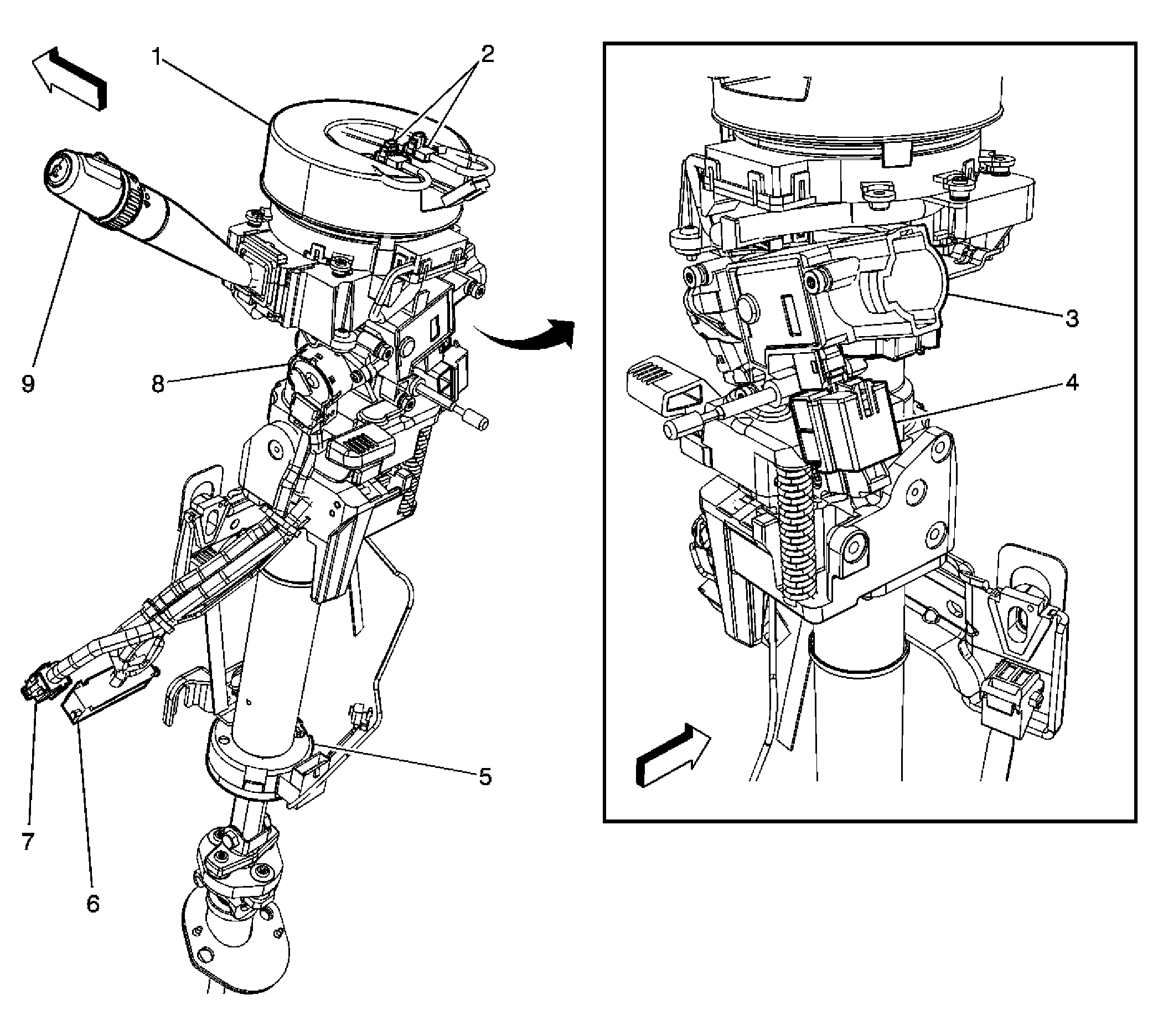

Fig 6: Identifying Steering Column Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Inflatable Restraint Steering Wheel Module Connectors
3	Ignition Switch
4	Ignition Lock Cylinder Control Actuator (M30)
5	Steering Wheel Position Sensor (JL4)
6	X201
7	X275
8	Ignition Switch
9	Turn Signal/Multifunction Switch

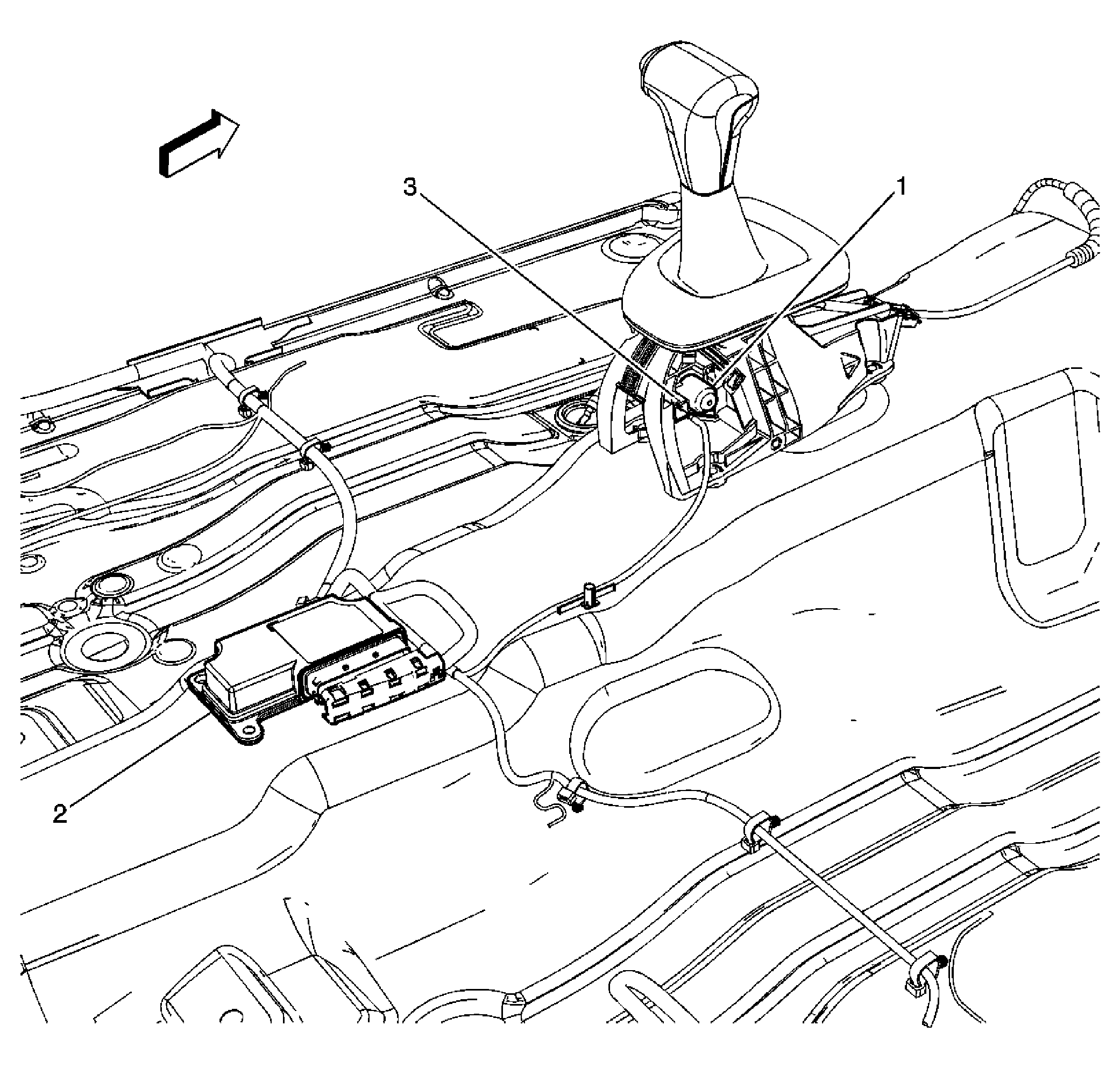

Fig 7: Floor Shift Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lock Control Solenoid (M30)
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)
3	Automatic Transmission Shift Lever (M30)
