2008 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu i-370, 2008 Isuzu i-290, 2008 GMC Canyon, and 2008 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

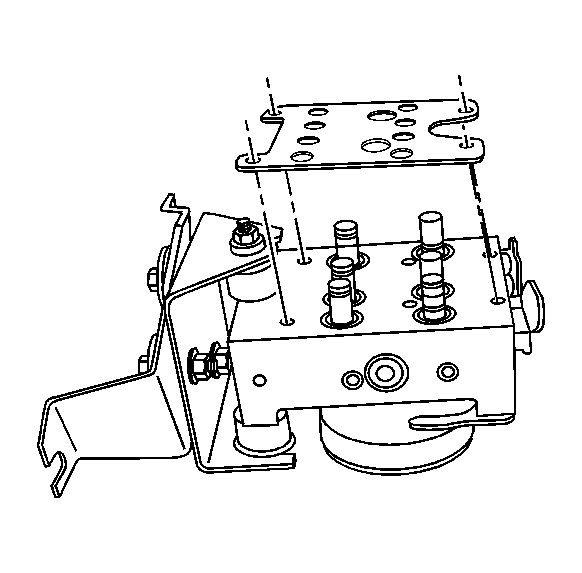

Fig 1: View Of EBCM Solenoid Plate

GM1384686

Courtesy of GENERAL MOTORS CORP.

Position the NEW solenoid plate on the BPMV.

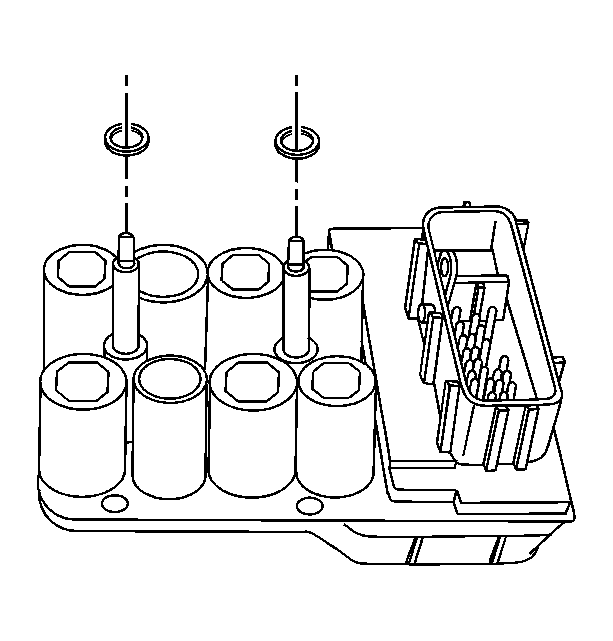

Fig 2: View Of EBCM O-Rings

GM1384681

Courtesy of GENERAL MOTORS CORP.

Install the new O-rings on the EBCM.

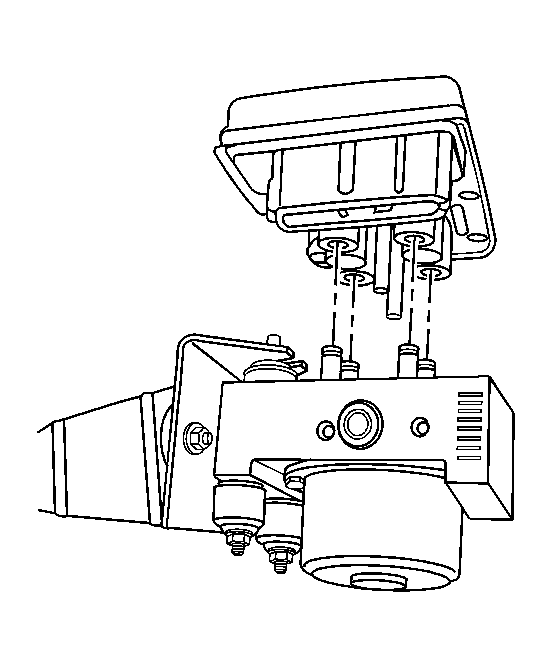

Fig 3: View Of BPMV And EBCM

GM1394252

Courtesy of GENERAL MOTORS CORP.

Install the BPMV to the EBCM.

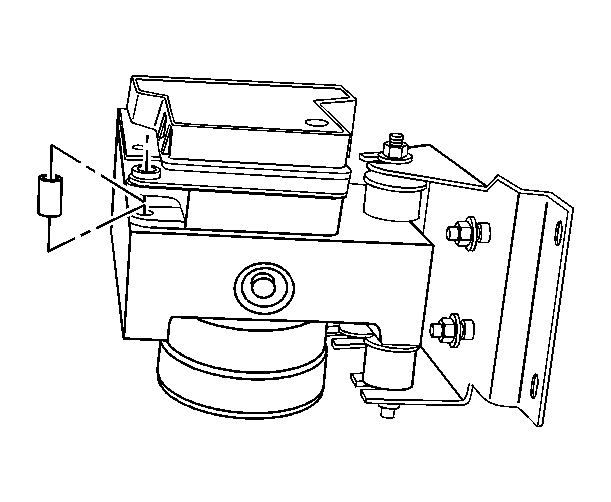

Fig 4: View Of Collars Between EBCM & BPMV

GM1384680

Courtesy of GENERAL MOTORS CORP.

Install the NEW collars in the BPMV and the EBCM.

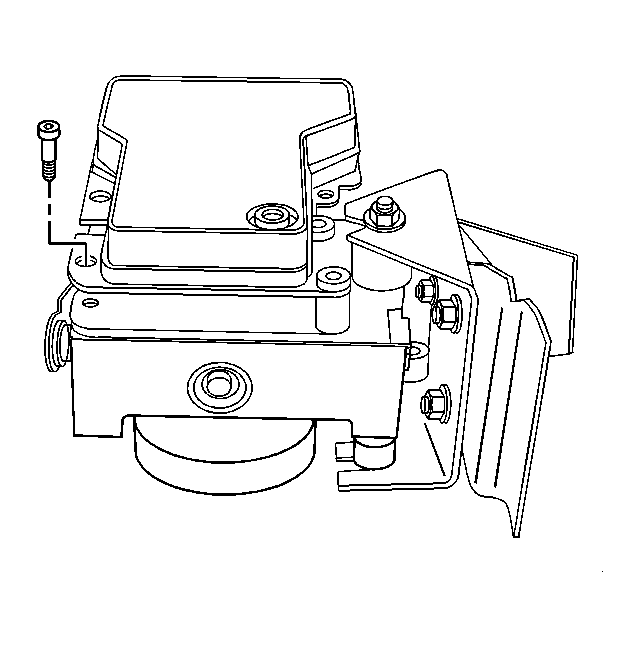

Fig 5: View Of EBCM Mounting Screw

GM1384682

Courtesy of GENERAL MOTORS CORP.
