2008 Hummer H3 Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Installation procedure

WARNING: This page is about a different car, the 2008 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

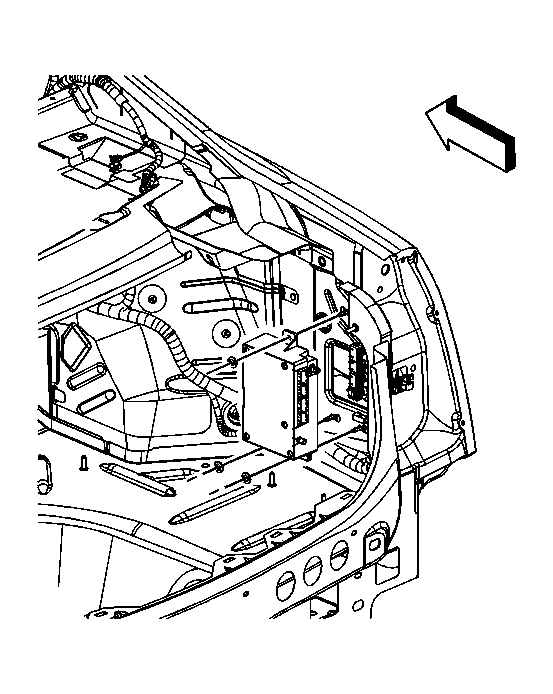

Fig 1: View Of OnStar® Module

Courtesy of GENERAL MOTORS CORP.

When replacing the VCIM, record the 11-digit electronic serial number (ESN) and the 10-digit station identification (STID) number from the label on the new VCIM.
Reconnect the electrical connectors the module.

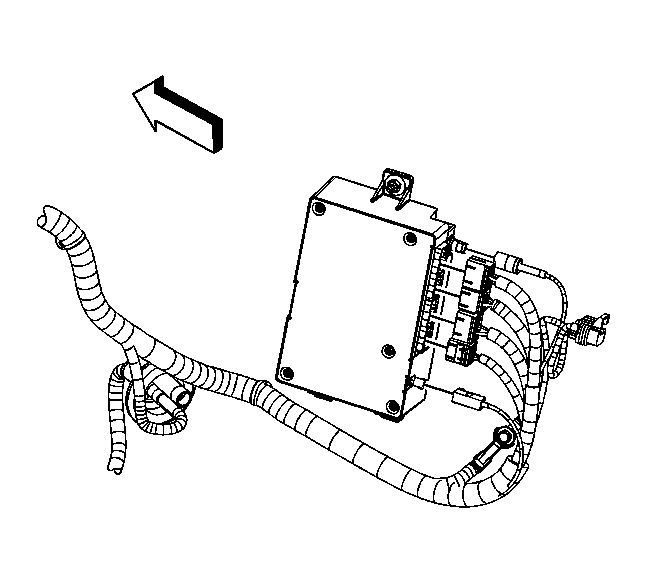

Fig 2: View Of Communication Interface Module

Courtesy of GENERAL MOTORS CORP.
